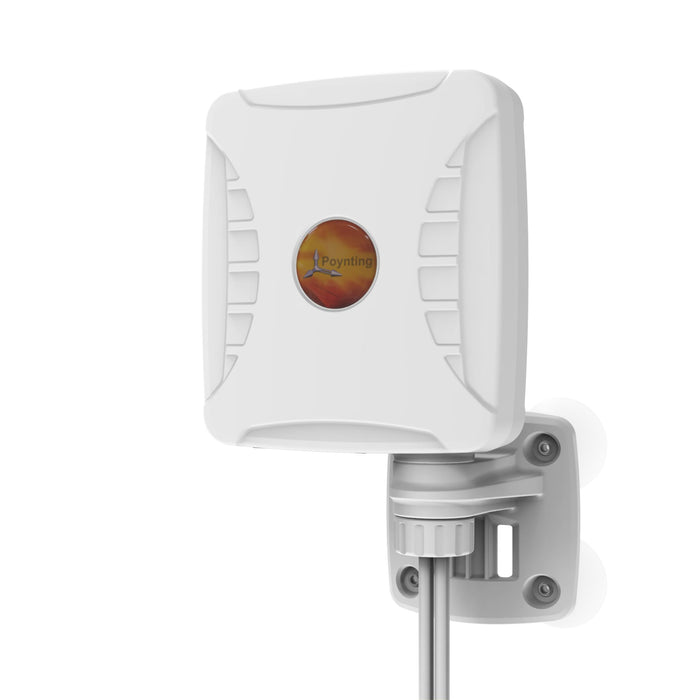

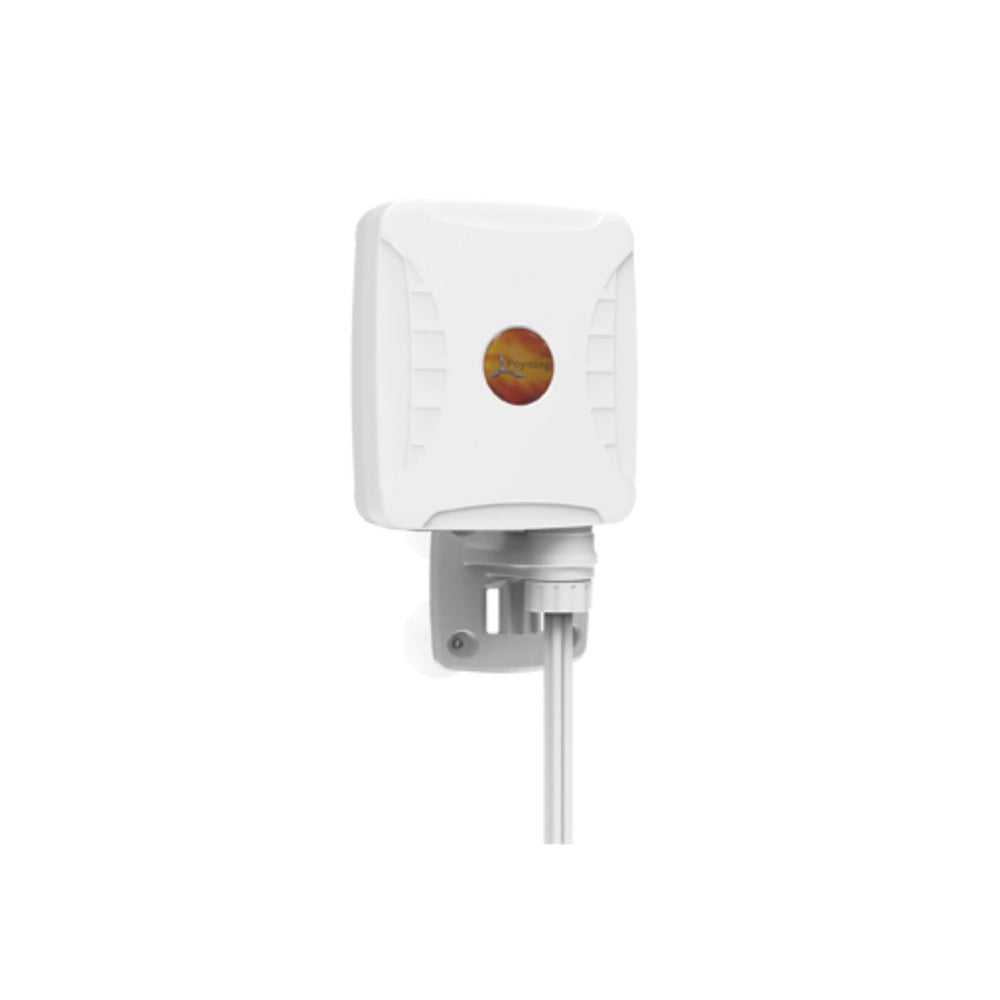

POYNTING X-Polarised, Omni-Directional, 2X2/4X4 LTE/5G MIMO Antenna - XPOL-1-5G
The XPOL-1-5G is Poynting's 2nd generation Cross Polarised (XPOL) 2x2 MIMO antenna. It now includes the lower 617 MHz band and newer 3400-3800 MHz bands, making it suitable for 2G, 3G, 4G, and 5G. With omni-directional radiation patterns and a peak gain of 4 dBi, this antenna is ideal for various applications and is weather and dust resistant with an IP65 rating.
Tech Specs
Click here for the Poynting XPOL-1-5G datasheet.
| Device Specifications | |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas, Farming & Agricultural Antennas, Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/5G) |
| Cellular Frequency Range | 617 – 3800 MHz |
| Frequency Band | 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Gain | 3 dBi |
| Directionality | Omni-Directional |

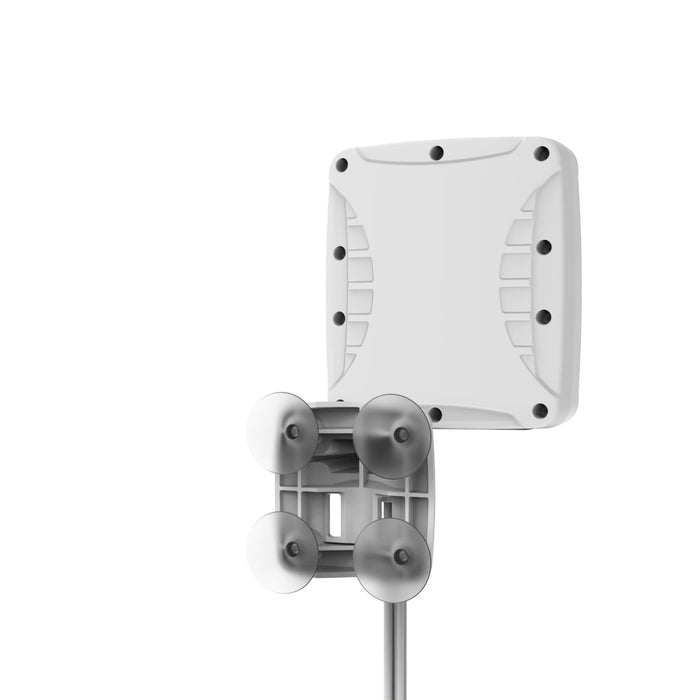

| Mounting Type | Pole Mount, Wall Mount, Window Mount |
| Connectors | SMA |
| MIMO | 2×2, 4×4 |
| Polarisation | X-Polarised |
| Environmental | IP65 |
| LTE Ports | 2, 4 |
FAQs
Q1: What is the Poynting XPOL‑1‑5G antenna and what is it used for?
A: The Poynting XPOL‑1‑5G is a compact, dual‑polarised external antenna designed to improve cellular signal reception for 4G LTE and 5G networks. It’s typically used with routers, gateways, and IoT devices to enhance wireless connectivity in remote, indoor, or mobile environments.
Q2: What frequency bands does the XPOL‑1‑5G antenna support?
A: The XPOL‑1‑5G antenna supports a wide range of cellular frequency bands, including sub‑6 GHz 5G and LTE bands. This broad coverage makes it compatible with most global 4G and 5G deployments.
Q3: What does dual‑polarisation mean on the Poynting XPOL‑1‑5G?
A: Dual‑polarisation means the antenna has two independent signal paths oriented at different polarities, which helps to improve signal quality, throughput, and reliability by capturing multiple signal components from the base station.
Q4: How is the Poynting XPOL‑1‑5G antenna mounted?
A: The antenna is supplied with mounting hardware that allows wall, mast, or pole mounting, giving flexibility to position the antenna for the best possible signal reception and cellular performance.
Q5: What environments and applications is the XPOL‑1‑5G antenna suitable for?
A: The antenna is suitable for 5G/LTE fixed installations, mobile connectivity, remote IoT sites, and industrial applications where robust cellular coverage and improved signal strength can significantly enhance data performance and reliability.
