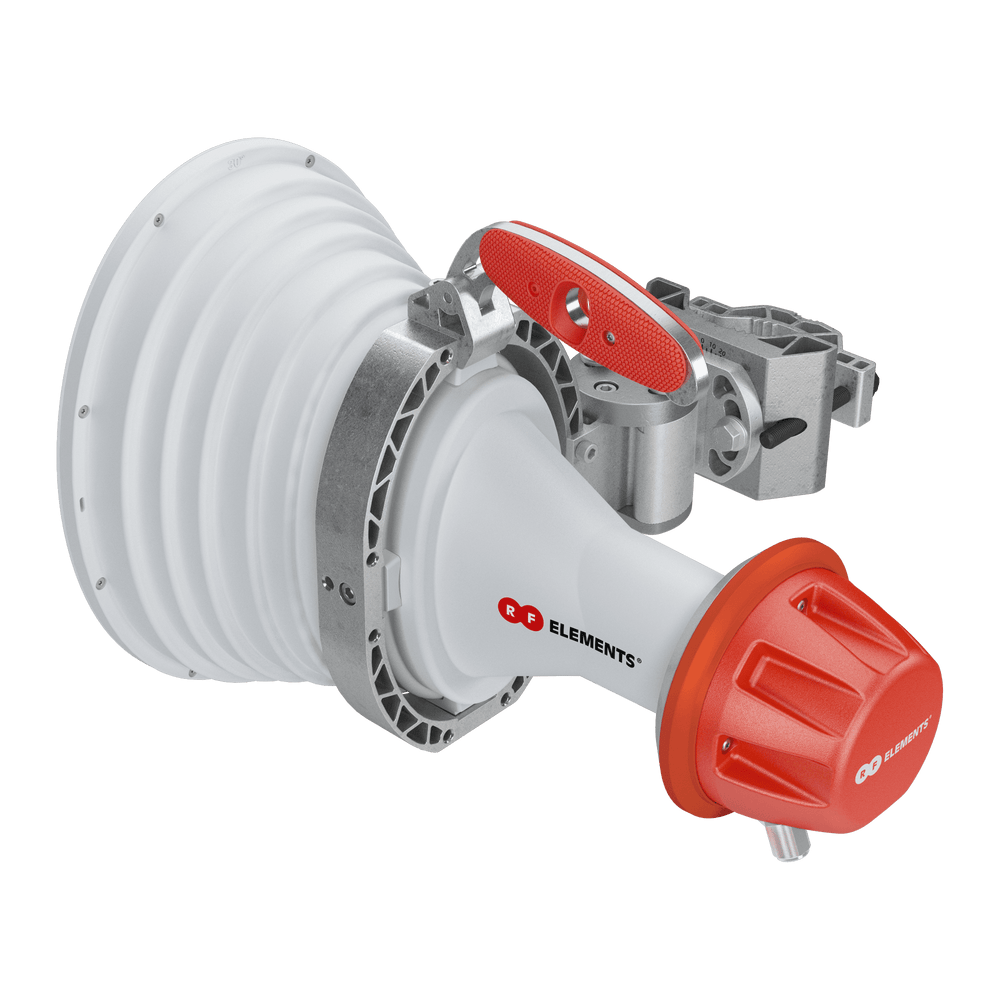

RF elements AH30-CC 30° Carrier Class Asymmetrical Horn Antenna
The AH30-CC Asymmetrical Horn Antenna from RF elements has a unique asymmetrical beam shape with N-female connectors. It has a high gain of 20.5dBi and a 30° azimuth beamwidth while maintaining excellent noise rejection. This antenna complements the successful Symmetrical Horn Antennas and offers a balanced Horizontal and Vertical beam pattern. Its elliptical beam cross-section provides better coverage and increased gain for stable link performance. The innovative mounting system makes installation quick and easy.
Tech Specs
Click here for the RF elements AH30-CC datasheet.
| Device Specifications | |
|---|---|
| Technical Data | |
| Radio Connection | 2x N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic Polycarbonate HDPE Aluminium Stainless Steel |
| Environmental Rating | IP55 |
| Pole Mounting Diameter | 40–80 mm (1.5–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 72/57 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 592/466 cm² – Front/Side (91.8/72.2 in²) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 4.5 kg (10.0 lbs) – single unit* 6.6 kg (14.6 lbs) – single unit incl. package* |
| Packaging Dimensions | Single Unit Retail Box: 435 × 360 × 250 mm (17.1 × 14.2 × 9.8 inch)* |
| Performance | |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 20.5 dBi |
| Azimuth Beam Width -3 dB | H 21° / V 21° |
| Elevation Beam Width -3 dB | H 15° / V 15° |
| Azimuth Beam Width -6 dB | H 30° / V 30° |
| Elevation Beam Width -6 dB | H 20° / V 20° |
| Beam Efficiency | 95% |
| Front-to-Back Ratio | 35 dB |
| VSWR Typical | 1.5 |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
FAQs
Q1: What is the RF Elements 30° Asymmetrical Beam Antenna (AH30‑CC) and what is it used for?
A: The RF Elements 30° Asymmetrical Beam Antenna (AH30‑CC) is an outdoor wireless antenna designed for point‑to‑multipoint (PtMP) deployments. It provides a 30° asymmetrical beam, delivering focused signal coverage with improved performance and reduced interference in targeted areas.
Q2: What does “asymmetrical beam” mean for this antenna?
A: An asymmetrical beam means the antenna’s signal pattern is shaped to direct stronger coverage where it’s needed most, while reducing signal spill in less critical directions — enhancing network efficiency and reducing unwanted interference.
Q3: What does the “30°” specification indicate?
A: The 30° horizontal beamwidth describes the width of the antenna’s signal spread across the coverage area. A 30° beam strikes a balance between focused reach and broad coverage, suitable for mid‑range sector links in wireless networks.
Q4: Where is the AH30‑CC antenna typically deployed?
A: This antenna is ideal for wireless ISP base stations, campus wireless sectors, rural broadband links, and fixed‑wireless access installations where precise sector coverage and reliable wireless performance are required.
Q5: What physical and environmental features does the AH30‑CC offer?
A: The AH30‑CC features a rugged outdoor housing engineered to withstand harsh weather and temperature extremes. It supports mast or pole mounting for secure installation and long‑term outdoor network operation.
