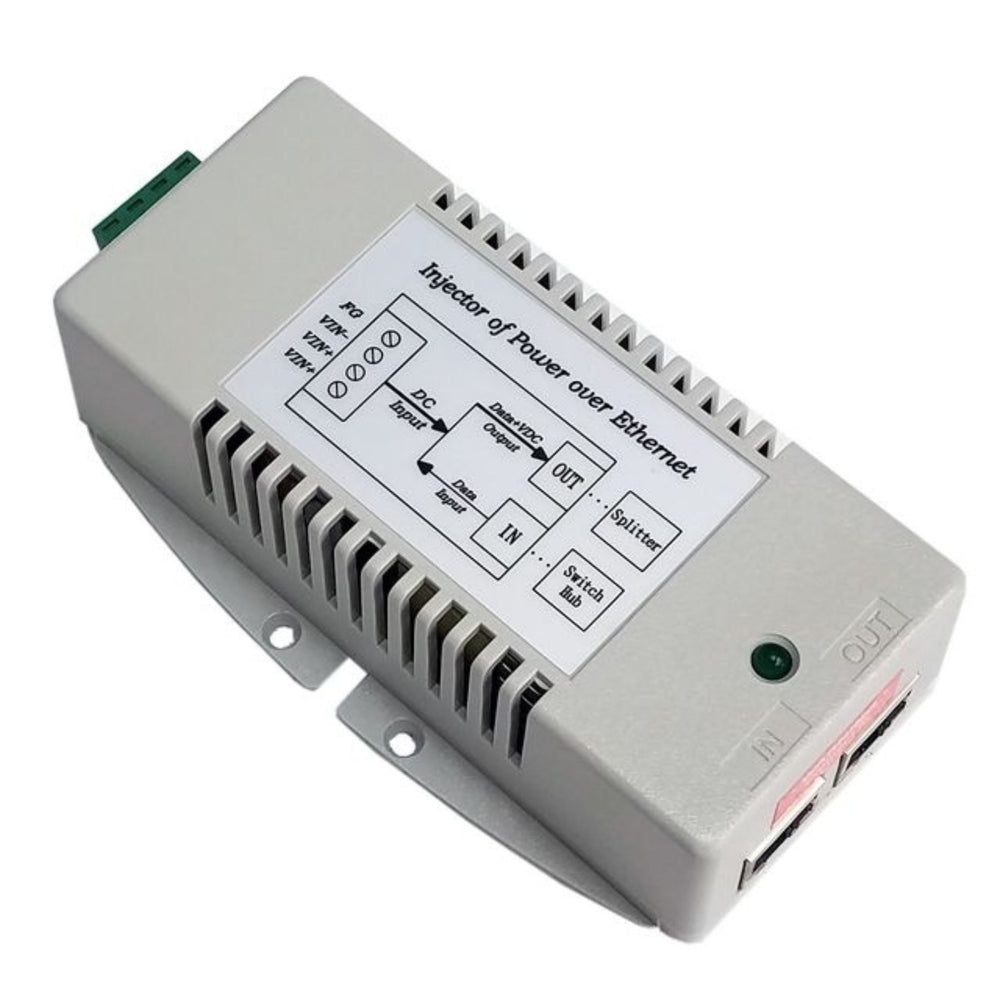

Tycon Systems DC PoE Injector, 18-36VDC IN, 56V 35W GigE 802.3at PoE OUT - TP-DCDC-2448GD-HP
The Tycon Power Converter quickly and efficiently converts various voltage sources, such as batteries or UPS, to 48VDC-56VDC for use with IEEE802.3af and IEEE802.3at devices. It has an integrated POE injector and can handle up to 35W of power output.
Tech Specs
Click here for the Tycon Power TP-DCDC-2448GD-HP datasheet.
| Device Specifications | |
|---|---|
| Tycon DC PoE Injector 56V 35W (18–36VDC Input) | |
| DC Input Voltage | 18VDC – 36VDC |
| DC Input Connector | Removable screw-type compression wire terminal (12 AWG max) |
| DC Output Voltage | 56V (802.3af/at) |
| Data In & Data/PoE Output Connector | RJ45 (Shielded) |
| Output Current (Max) | 0.625 A |
| Output Power (Max) | 35 W |
| Self Consumption Power | 1 W |
| Efficiency (Min) | 75% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| EMC Standards | FCC Class B, EN55022 Class B |
| Safety Standards | IEC 62368-1, EN 62368-1, AS/NZS 62368.1 |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operating Humidity | 5% – 90% Non-Condensing |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| MTBF | 106,924 hours |
| Dimensions (L × W × H) | 125 x 75 x 38 mm (4.9 x 3 x 1.5”) |
| Weight | 300 g (10.6 oz) |
FAQs
Q1: What is the Tycon TP‑DCDC‑2448GD‑HP PoE Injector and what is it used for?
A: The Tycon TP‑DCDC‑2448GD‑HP is a DC‑powered PoE injector that converts a wide 18–36 V DC input into 56 V Power over Ethernet output compliant with 802.3at (PoE+), delivering both power and data to high‑power network devices over a single Ethernet cable.
Q2: What power output does the TP‑DCDC‑2448GD‑HP provide?
A: This injector delivers up to 35 W of PoE+ power, making it suitable for high‑power network equipment such as advanced wireless access points, PTZ cameras, and other PoE+ devices in demanding environments.
Q3: What input voltage range does the TP‑DCDC‑2448GD‑HP support?
A: The unit supports a wide DC input range from 18 V to 36 V, which allows flexible use with DC power systems including battery backups, solar setups, industrial panels, and telecom power supplies.
Q4: How is the Tycon TP‑DCDC‑2448GD‑HP installed and powered?
A: The injector connects directly to a DC power source via secure terminals. It then delivers both power and Ethernet data over one cable to the connected PoE device, simplifying installation in DC‑powered network environments.
Q5: What applications is the TP‑DCDC‑2448GD‑HP PoE Injector suitable for?
A: It is ideal for industrial, outdoor, and remote network deployments where reliable, high‑power PoE+ delivery is required and DC power sources are available or preferred.
