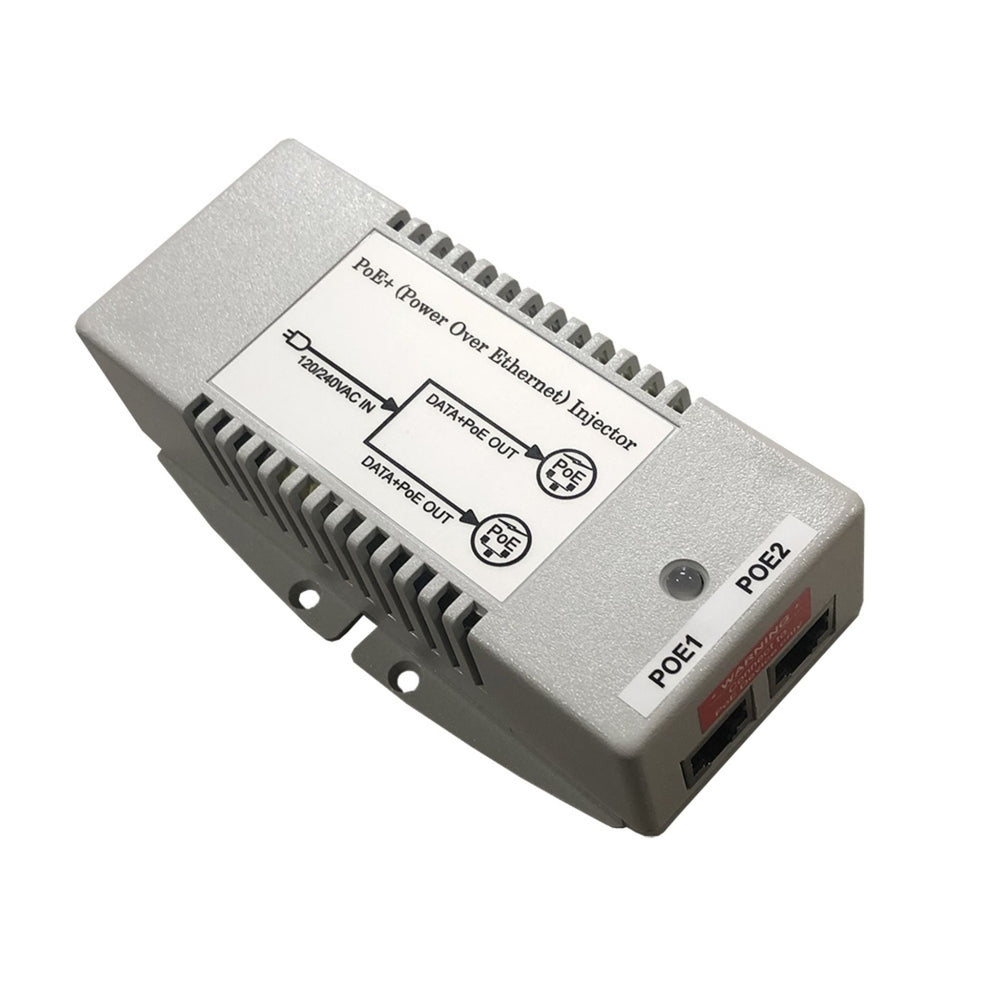

Tycon Systems AC PoE Injector, 100-240VAC IN, Dual GigE 802.3at PoE OUT - TP-POE-HP-48GDX2
The TP-DC-HP-48GDX2 uses dual 802.3af/at outputs and has high power output and surge protection of up to 15kV. It also features two DC inputs and is compatible with 110/220VAC backup power systems. This injector is perfect for powering multiple devices, such as cameras and wireless devices.
Tech Specs
Click here to see the Tycon Systems TP-POE-HP-48GDX2 datasheet.
| Device Specifications | |
|---|---|
| Input Voltage | 90–264 VAC, 47–63 Hz |

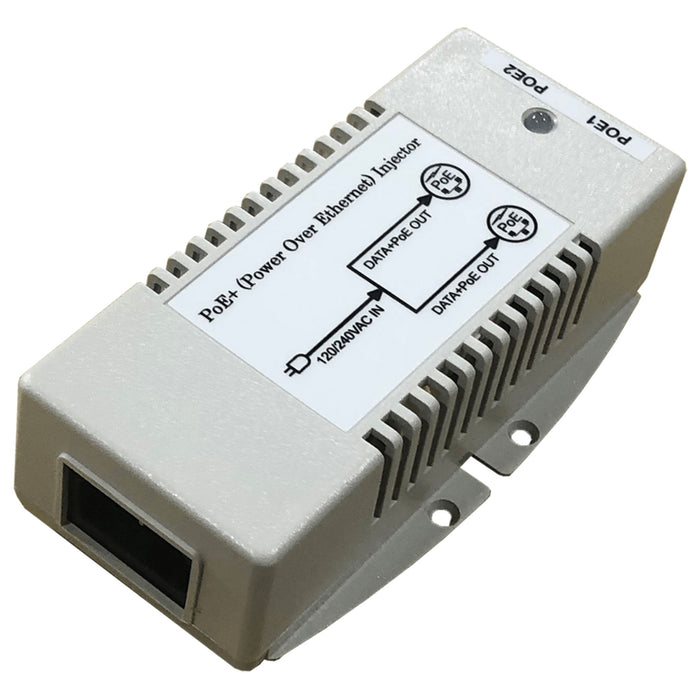

| Input Connector | IEC C13 (incl. power cord) |
| PoE Specification | Active PoE 802.3af/at (Mode B, 2-pair) |
| Output Voltage (±2.5%) | 56 VDC |
| Ethernet Connectors | RJ45 (Shielded) 10/100 & Gigabit compatible |
| Output Current (Max) | 0.45 A × 2 |
| Output Power (Total) | 50 W |
| Self-Consumption Power | 2 W |
| Efficiency (Min) | 80% |
| Line Regulation, Ripple, Noise | 1% |
| Load Regulation | 5% |
| Surge Protection | IEC61000-4-2 (ESD): ±15 kV (air), ±8 kV (contact) IEC61000-4-4 (EFT): 40 A (5/50 ns) IEC61000-4-5 (Lightning): 20 A (8/20 μs) |
| Operating Temperature | -25 to +50°C (-13 to 122°F) |
| Operating Humidity | 5% – 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| Dimensions (L × W × H) | 125 × 75 × 38 mm (4.9 × 3 × 1.5”) |
| Weight | 255 g (9 oz) |
FAQs
Q1: What is the Tycon TP-POE-HP-48GD×2 AC PoE Injector and what is it used for?
A: The Tycon TP-POE-HP-48GD×2 is an AC-powered PoE injector that accepts a universal 100–240 VAC input and provides two Gigabit Ethernet 802.3at (PoE+) outputs. It supplies both power and data over Ethernet to two PoE-enabled devices simultaneously.
Q2: How much power can each PoE port deliver on the TP-POE-HP-48GD×2?
A: Each 802.3at PoE+ port delivers up to higher wattage per port, suitable for powering high-performance PoE devices such as wireless access points, VoIP phones, and PTZ cameras, while supporting full Gigabit data speeds.
Q3: What input voltage does the TP-POE-HP-48GD×2 require?
A: This PoE injector operates from a wide AC input range of 100–240 VAC, enabling use with standard mains power supplies around the world without additional converters.
Q4: How does the TP-POE-HP-48GD×2 simplify network installations?
A: The unit consolidates power and data delivery over a single Ethernet cable per device, eliminating the need for separate power adapters and making it easier to deploy PoE devices in offices, retail spaces, and network closets.
Q5: What environments and applications is the TP-POE-HP-48GD×2 suitable for?
A: It’s ideal for enterprise and commercial networks, surveillance systems, access point deployments, and environments where reliable PoE+ power is needed for multiple devices from a single AC power source.
