Ubiquiti UniFi Doorbell Lite
UniFi Doorbell Lite – Compact PoE Video Doorbell with UniFi Protect

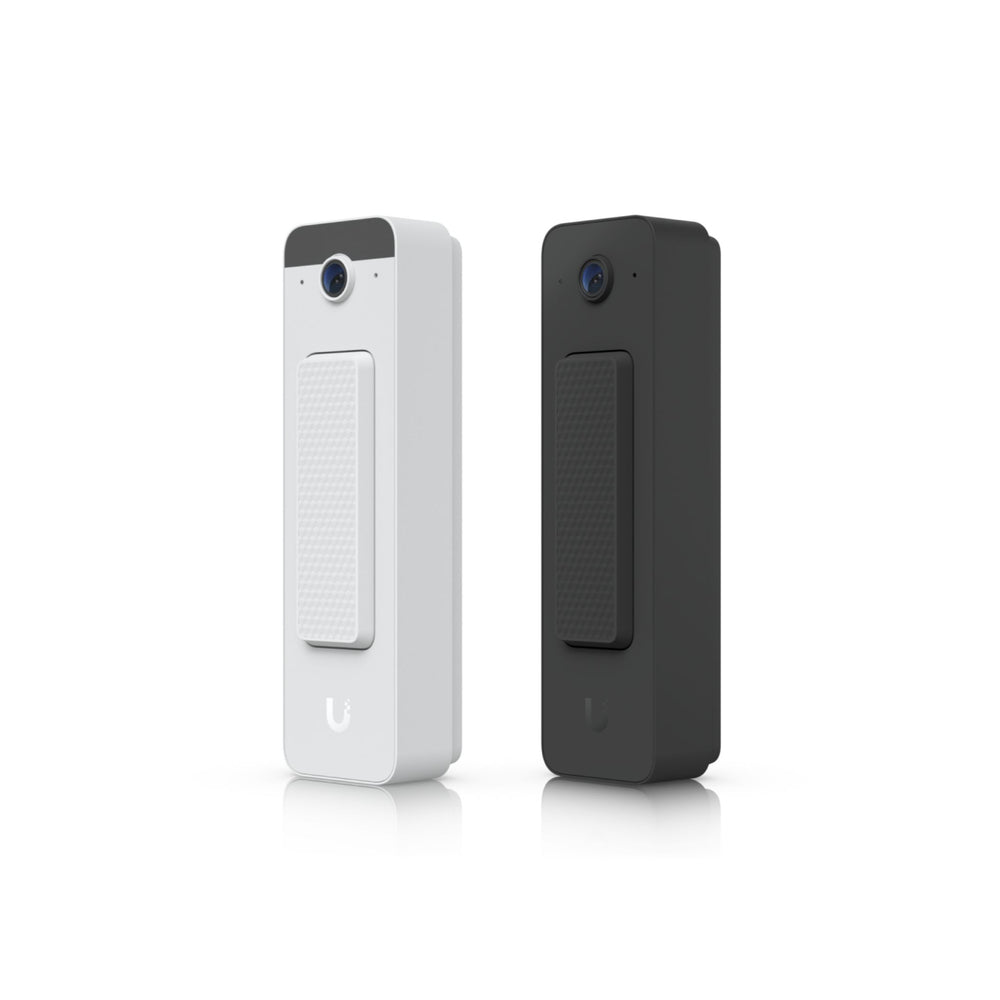

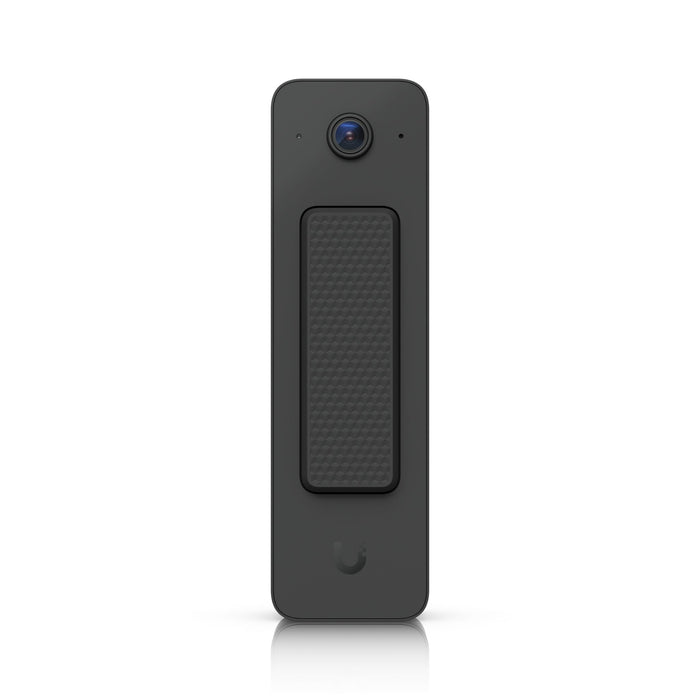

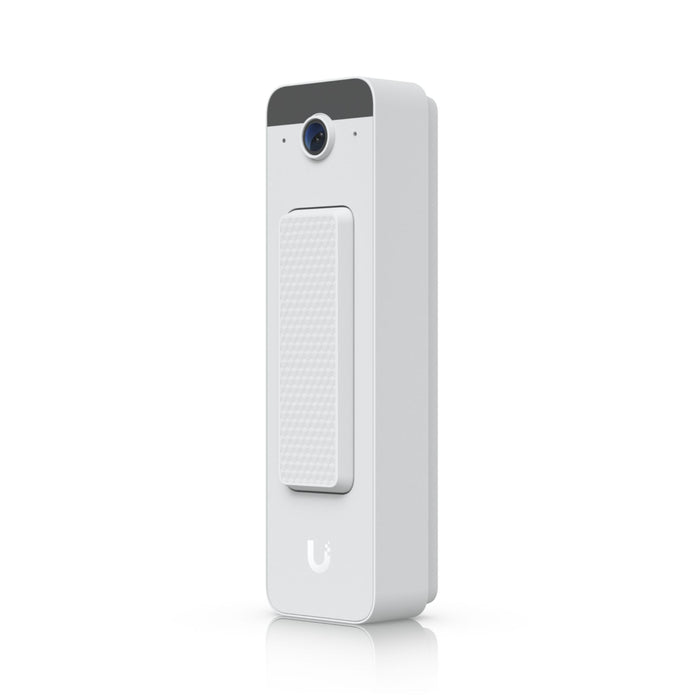

The UniFi Doorbell Lite is a compact, PoE-powered video doorbell designed to deliver clear and reliable entry monitoring with seamless integration into the UniFi Protect ecosystem. Featuring a 2K 1/2.7" 5 MP image sensor, it captures sharp video detail, while the integrated IR LED provides up to 5 metres (16 ft) of night vision for dependable visibility in low-light conditions.
Two-way audio is supported via the built-in microphone and speaker, allowing clear communication with visitors directly through the UniFi Protect app. The IPX5-rated weather-resistant enclosure ensures reliable outdoor operation, and the doorbell includes both flat and 20° wedge mounting options to help achieve the optimal viewing angle across different entryways.

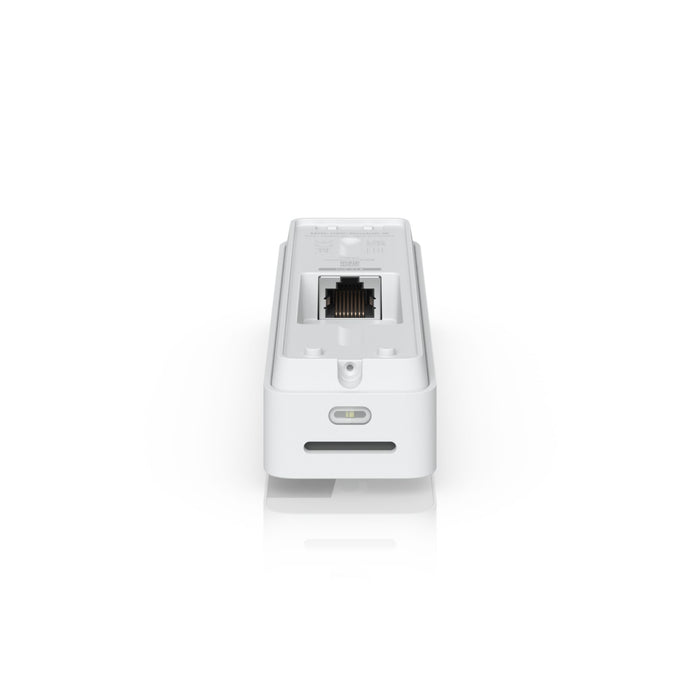

Powered via PoE through an RJ45 connection, the UniFi Doorbell Lite simplifies installation by combining power and network connectivity into a single cable. An LED visibility light enhances usability in darker environments, while the compact design makes it well suited to residential and commercial deployments where a discreet appearance is preferred.
Tech Specs
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 137 x 40 x 26.4 mm (5.4 x 1.6 x 1") |
| IR Night Vision | 5 m (16 ft) |
| Smart Detections | People Vehicles Animals ✓ |
| Resolution | 5MP |
| Field of View | H: 95.8° V: 131.2° D: 175.9° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 |
| Mounting | Wall, 20° wedge (Included) Gang box, junction box (Optional) |
| Performance | |
| Networking Interface | 10/100 MbE port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 24 FPS |
| Video Resolution | 5MP 1920 x 2560 (3:4) |
| Sensor | 1/2.7" 5MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 8W |
| Supported Voltage Range | 37–57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | Device: 142 g (5 oz) With flat wall mount: 165 g (5.8 oz) With 20° wedge mount: 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Formed sheet metal |
| Buttons | (1) Ring button (1) Factory-reset |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q1: What is the Ubiquiti UVC‑Doorbell‑Lite and what is it used for?
A: The Ubiquiti UVC‑Doorbell‑Lite is a smart doorbell camera that combines HD video capture with two‑way audio and motion detection, allowing users to monitor entryways and interact with visitors remotely.
Q2: How does the UVC‑Doorbell‑Lite connect to a network?
A: The device connects via Power over Ethernet (PoE), providing both network connectivity and power over a single cable for simplified installation and reliable performance.
Q3: What video and audio features does the UVC‑Doorbell‑Lite offer?
A: The doorbell camera delivers HD‑quality video and includes two‑way audio communication, enabling clear interaction with visitors through a smartphone or connected interface.
Q4: What detection and alert features are available on the UVC‑Doorbell‑Lite?
A: The UVC‑Doorbell‑Lite supports motion detection, sending notifications when movement is detected. This helps users stay informed about activity at the door in real time.
Q5: What installation and physical features does the UVC‑Doorbell‑Lite have?
A: The unit is designed for mounting at entry points and includes a compact housing suitable for outdoor installation. It can be integrated with compatible management systems for configuration and video storage.
