Ubiquiti UniFi Network Video Recorder Instant
Please contact us for stocking information.
UniFi Network Video Recorder Instant – Compact UniFi Protect NVR with Integrated PoE
The UniFi Network Video Recorder Instant is a compact UniFi Protect NVR designed to deliver simple, space-efficient video recording for smaller surveillance deployments. Supporting a 3.5" HDD, it provides local storage for up to six 4K cameras or fifteen Full HD cameras, making it well suited to offices, retail spaces, hospitality environments, and residential installations.
Featuring an integrated 6-port PoE switch, the NVR Instant can directly power and connect compatible UniFi Protect cameras, reducing the need for additional switching hardware. An integrated HDMI ViewPort enables direct local display of live and recorded footage, offering convenient on-site monitoring without a separate viewing device.
Designed for streamlined UniFi Protect deployments, the UniFi Network Video Recorder Instant delivers reliable recording, simplified cabling, and a compact footprint.
Note: Requires connection to a UniFi Gateway or a Layer 3 switch.
Any EU products are supplied with the appropriate UK power method at no extra cost.
Tech Specs
Click here for the UniFi Network Video Recorder datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 220 × 220 × 47 mm (8.7 × 8.7 × 1.9") |
| Form Factor | Compact Desktop |
| Mounting | Wall mount DIN rail mount (Included) |
| UniFi Application Suite | |
| Protect | ✓ |
| Access | ✓ |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Managed Access Hubs | 50 |

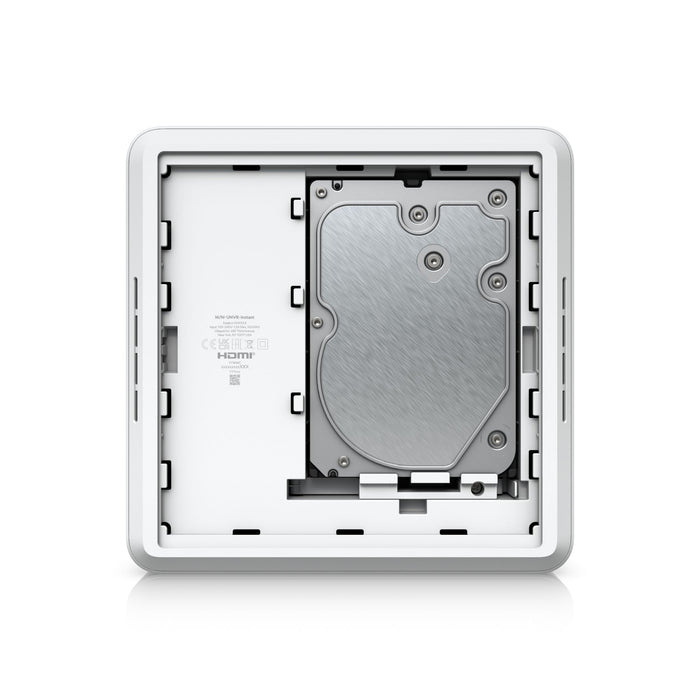

| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | ✓ |
| Vantage Point | ✓ |
| Door Access Support | ✓ |
| Networking | |

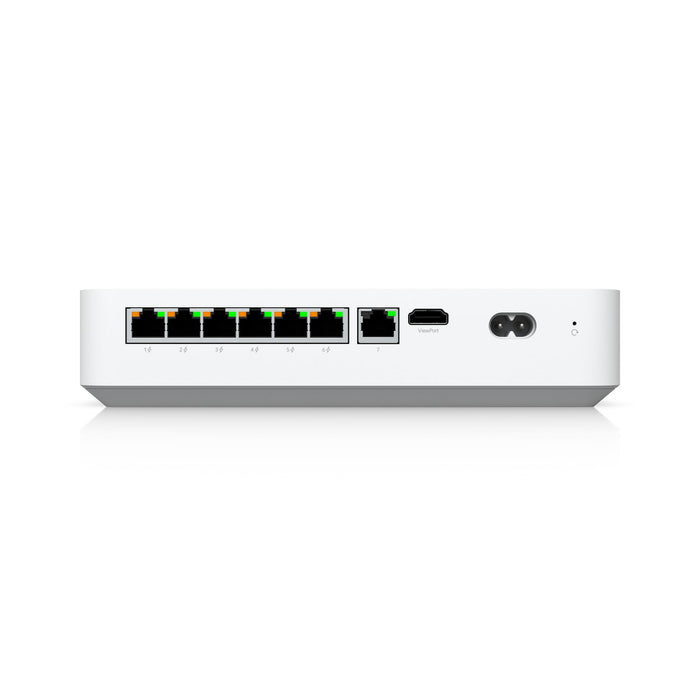

| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Hardware | |
| Hard Drive Support | (1) 3.5" HDD |
| Max Power Budget for Drives | 11 W |
| Max Power Consumption | 9 W |
| Power Method | Universal AC input, 100–240 VAC, 1.5 A max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60 W |
| PoE Budget | 40 W |
| Max PoE Wattage per Port | 15.4 W |
| PoE Voltage Range | 44–57 V |
| Processor | Quad-core ARM® Cortex®-A55 @ 1.7 GHz |
| Memory | 4 GB |
| Management Interfaces | Ethernet Bluetooth |

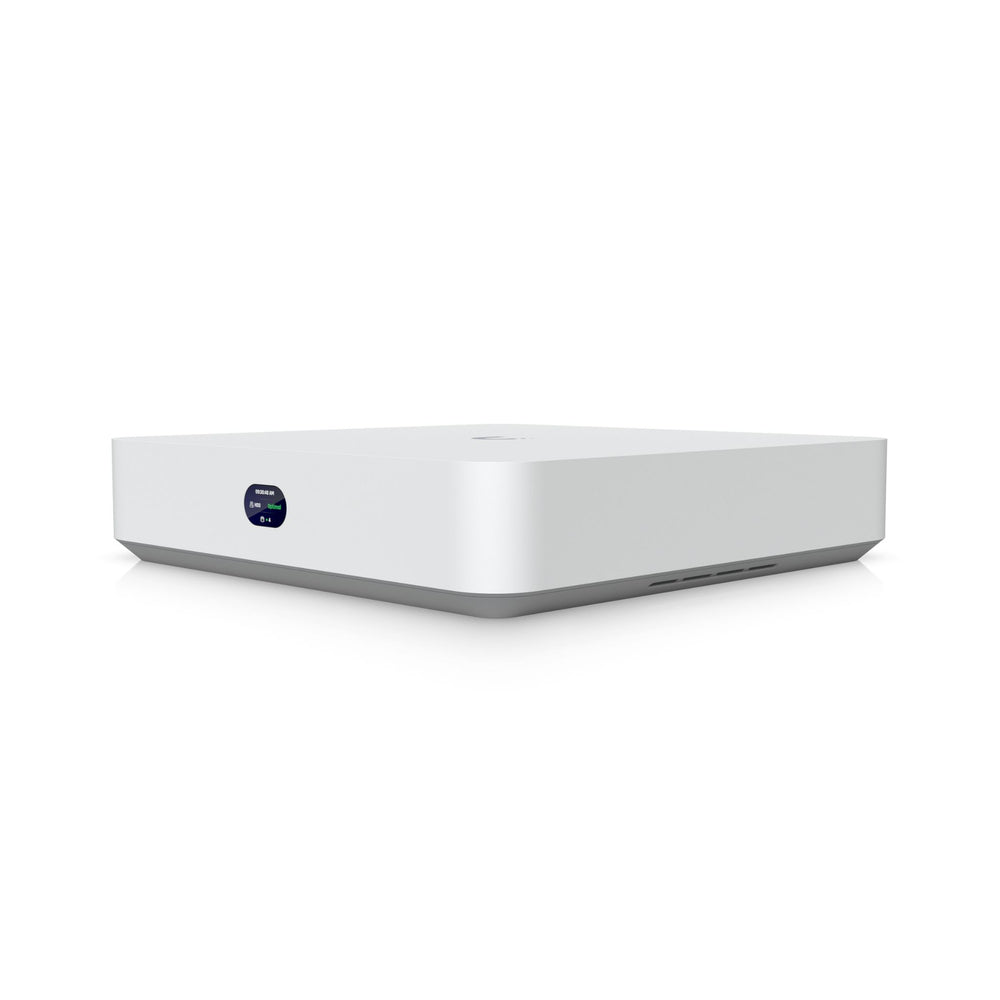

| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs | |
| Ethernet | ✓ |
| PoE | ✓ |
| Environmental | |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356 |
FAQs
Q1: What is the Ubiquiti UNVR-Instant and what is it used for?
A: The Ubiquiti UNVR-Instant is a compact network video recorder (NVR) designed to manage and store video from UniFi Protect cameras. It provides local storage and streamlined setup for surveillance systems in homes, offices, or small businesses.
Q2: How does the Ubiquiti UNVR-Instant connect to cameras and networks?
A: The UNVR-Instant connects to your network via Ethernet, allowing UniFi Protect cameras to stream video over the same network. It manages camera feeds, recording schedules, and playback through the UniFi Protect interface.
Q3: What storage capabilities does the Ubiquiti UNVR-Instant offer?
A: This NVR includes built-in storage sized for small to medium surveillance setups, enabling continuous or scheduled recording of video footage without needing external storage devices.
Q4: What features help with video management on the Ubiquiti UNVR-Instant?
A: The UNVR-Instant offers easy setup, intuitive video management, configurable retention settings, and playback controls, simplifying surveillance system administration.
Q5: What physical and installation characteristics does the Ubiquiti UNVR-Instant have?
A: The UNVR-Instant is designed in a compact form factor that fits easily in network racks or shelves, and it works seamlessly with UniFi Protect cameras to deliver a cohesive security solution.
