UniFi Network Video Recorder Instant Kit – Compact UniFi Protect Surveillance Kit

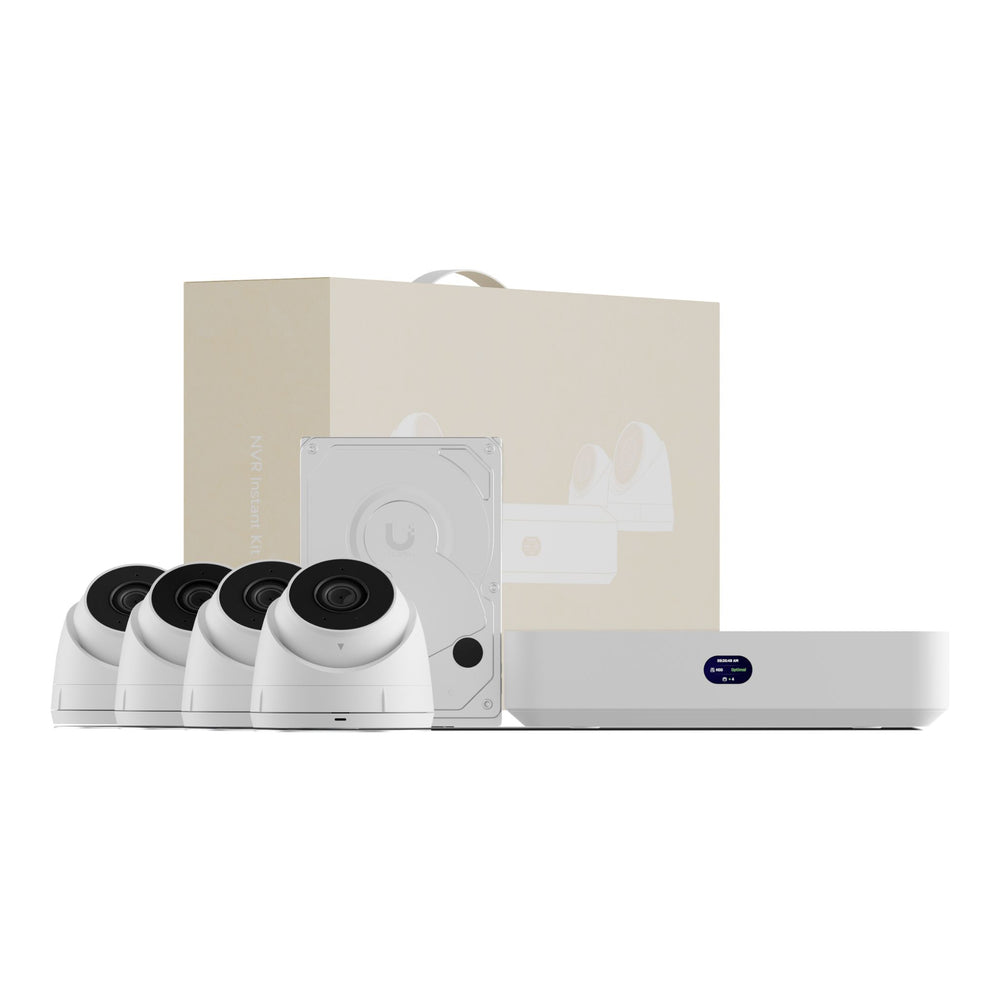

The UniFi Network Video Recorder Instant Kit is a compact, all-in-one UniFi Protect surveillance solution designed for fast and effortless deployment. It includes one UniFi Protect NVR Instant, four G5 Turret Ultra cameras, and a 1 TB HDD, providing a complete recording and monitoring setup straight out of the box.
Designed for smaller security installations, the NVR Instant supports reliable local video recording while the included G5 Turret Ultra cameras deliver consistent coverage for indoor or outdoor environments. This bundled kit reduces setup complexity by combining recording, storage, and cameras into a single, pre-matched solution, making it ideal for offices, retail spaces, hospitality venues, and residential properties.
With its compact footprint and simplified installation process, the UniFi Network Video Recorder Instant Kit offers a practical way to deploy UniFi Protect quickly without the need to source individual components separately.
Any EU products are supplied with the appropriate UK power method at no extra cost.
Tech Specs
| Device Specifications | |
|---|---|

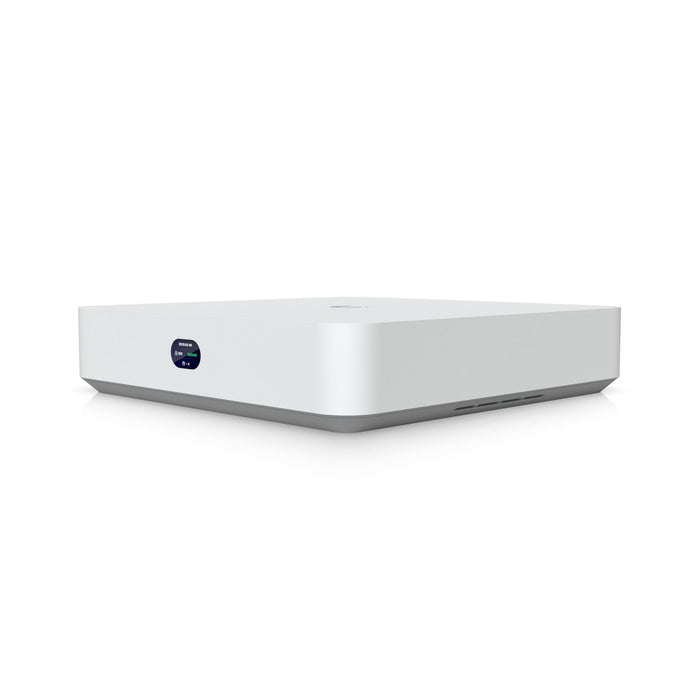

| Network Video Recorder Instant | |
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite | Protect ✓ Access ✓ |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | ✓ |
| Vantage Point | ✓ |
| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, DIN rail mount (Included) |
| Door Access Support | ✓ |
| Hard Drive Support | (1) 3.5" HDD |
| Max. Power Budget (Drives) | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100–240VAC, 1.5A max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port | 15.4W |
| PoE Voltage Range | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs | Ethernet ✓ PoE ✓ |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE, Electrical Safety |
| G5 Turret Ultra | |
| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections | People Vehicles Animals |
| Resolution | 2K |
| Field of View | H: 102.4° V: 54.9° D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Video Resolution | 4MP 2688 x 1512 (16:9) |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37–57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| Cable | RJ45 connector 5 mm diameter 30 cm (1 ft) length |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |

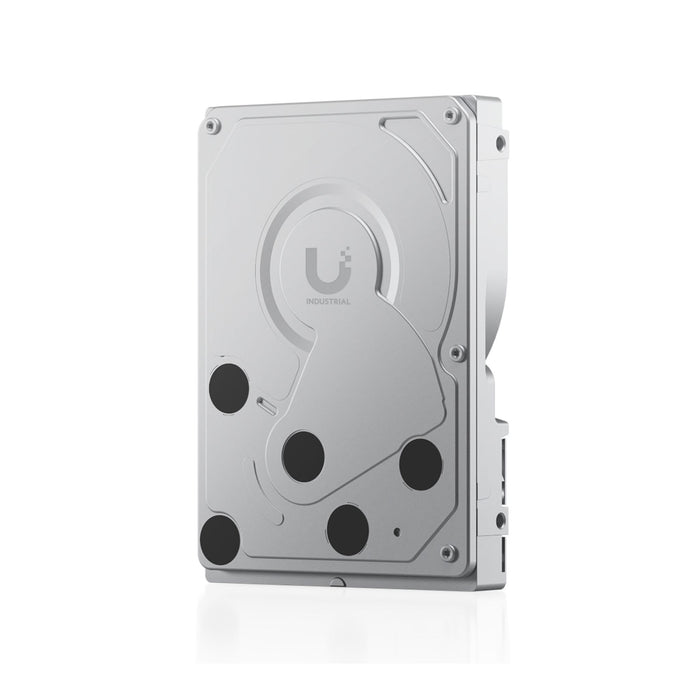

| HDD | |
| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V / 12V input |
| Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| MTBF | 1,000,000 h |
| Operating Temperature | 0 to 65°C (32 to 149°F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
FAQs
Q1: What is the Ubiquiti UNVR-Instant-Kit and what does it include?
A: The Ubiquiti UNVR-Instant-Kit is a complete surveillance solution that bundles a compact network video recorder (NVR) with one or more UniFi Protect cameras, providing a turnkey system for video monitoring and recording.
Q2: How does the Ubiquiti UNVR-Instant-Kit connect to cameras and networks?
A: The kit’s NVR connects to your local network via Ethernet, and the included cameras stream video over that network. Everything is managed through a unified interface that integrates camera feeds, storage, and playback.
Q3: What storage and recording features does the UNVR-Instant-Kit offer?
A: The kit’s NVR includes built-in storage sized to match the bundle, enabling continuous or scheduled video recording. Users can configure retention settings and playback schedules through the management interface.
Q4: How easy is it to set up and manage the UNVR-Instant-Kit?
A: The UNVR-Instant-Kit is designed for plug-and-play setup. Cameras and the NVR are pre-configured to work together, and intuitive software tools help with initial setup, camera management, and reviewing recorded footage.
Q5: What installation environments is the Ubiquiti UNVR-Instant-Kit suitable for?
A: This surveillance kit is ideal for homes, offices, retail spaces, and small business environments where a reliable, integrated video monitoring and recording system is needed without complex configuration or additional hardware.
