Teltonika TSW010
Please contact us for stocking information.

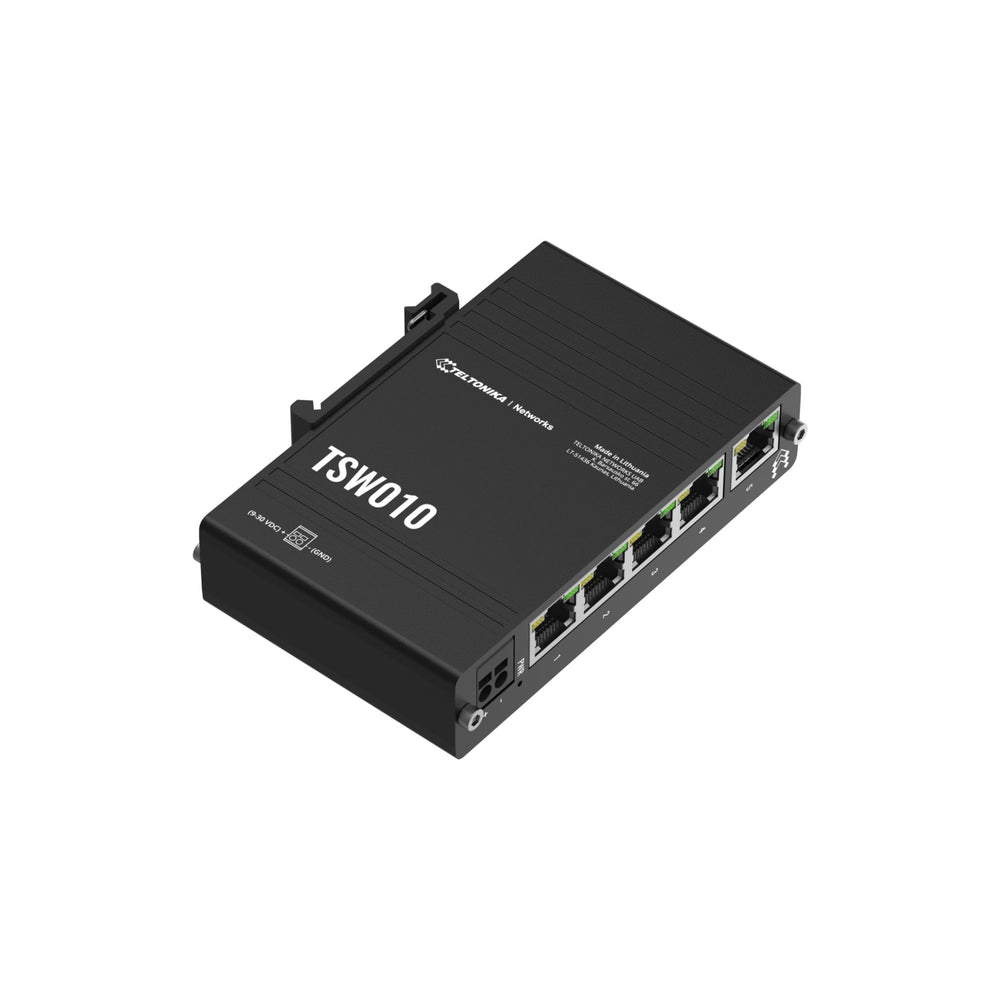

The TSW010 Ethernet switch is a cost-effective solution for expanding your network to support multiple Ethernet devices. It features five 10/100 Mbps ports that provide stable and dependable connectivity, making it ideal for industrial applications with moderate bandwidth requirements.
Tech Specs
Click here for the Teltonika TSW010 datasheet.
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Ethernet | |
| Ports | 5 x ETH ports, 10/100 Mbps Supports auto MDI/MDIX crossover |
| IEEE standards | 802.3i, 802.3u, 802.3x, 802.3az |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Power via ETH1 port Not compatible with IEEE 802.3af / 802.3at / 802.3bt Mode B, 9 – 30 VDC |
| Power consumption | Idle: 0.3 W Max: 0.9 W |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |

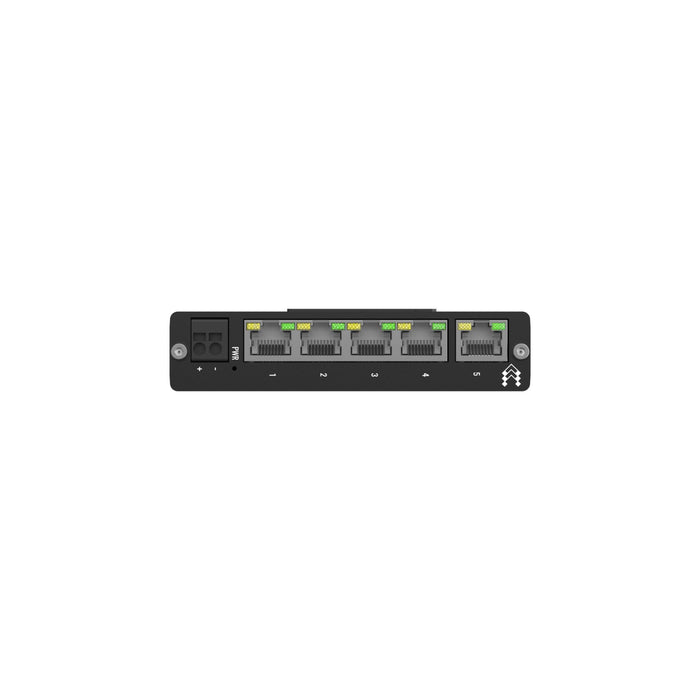

| Status LEDs | 1 x Power LED 10 x ETH status LEDs |
| Physical Specification | |
| Casing material | Aluminium housing |
| Dimensions (W × H × D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 146.5 g |

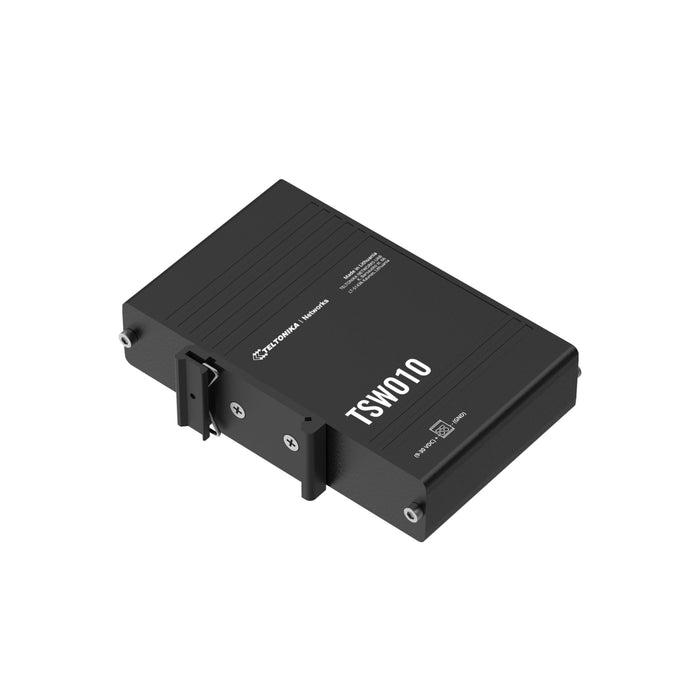

| Mounting options | Integrated DIN rail bracket Wall mount and flat surface (additional kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress protection rating | IP30 |
| Regulatory & Type Approvals | |
| Approvals | CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya REACH, RoHS, WEEE, UL Safety |
| EMC Emissions & Immunity | |
| Standards | EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 |
| Immunity | ESD: EN 61000-4-2:2009 Radiated: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge: EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 |
| Performance Specifications | |
| Bandwidth (non-blocking) | 1 Gbps |
| MAC address table | 2K entries |
| Jumbo frame support | 2048 bytes |
| Safety (Ordinary Locations) | |
| Standards | UL 62368-1 (3rd Ed., Rev. December 13, 2019) C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) |
FAQs
Q1: What is the Teltonika TSW010 used for?
A: The TSW010 is an unmanaged Ethernet switch designed to provide reliable networking for industrial and embedded systems, offering five 10/100 Mbps ports to connect multiple devices in rugged environments.
Q2: What network ports does the TSW010 have?
A: It includes 5 × RJ45 Ethernet ports supporting 10/100 Mbps speeds with auto-MDI/MDIX for simplified cabling and automatic link configuration.
Q3: What power and PoE features does this switch support?
A: The TSW010 is powered by a 9–30 V DC input via a 2-pin terminal block, and it also supports passive PoE output on the first LAN port, allowing it to power a downstream PoE-capable device without a separate injector.
Q4: What are the mechanical and environmental specifications of the TSW010?
A: It has a rugged aluminium housing designed for DIN-rail mounting, with an operational temperature range from -40 °C to +75 °C, making it suitable for industrial cabinets, control rooms, or outdoor-adjacent enclosures.
Q5: What deployment scenarios is the TSW010 best suited for?
A: It is ideal for industrial automation, IoT networks, sensor clusters, remote equipment networking, or any installation that needs a compact, durable unmanaged switch with passive PoE support and wide temperature tolerance.
