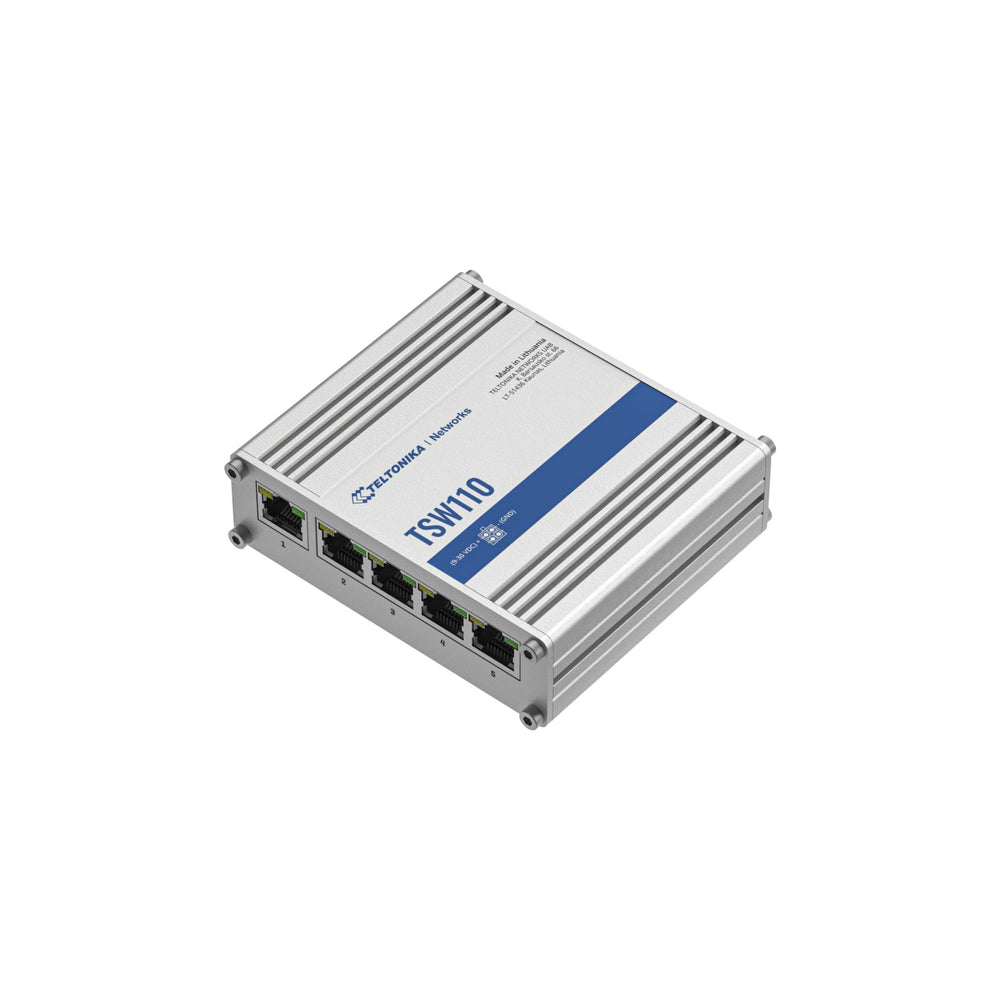

The TSW110 is a durable, compact layer 2 Ethernet switch that facilitates dependable data transfers for industrial high-bandwidth tasks. Its professional design features five Gigabit Ethernet ports for connecting equipment to the network, and is compatible with a wide range of power supply voltages (9-30 V).
Tech Specs
Click here for the Teltonika TSW110 datasheet.
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Ethernet | |
| Ports | 5 x ETH ports, 10/100/1000 Mbps Supports auto MDI/MDIX crossover |
| IEEE 802.3 standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Power via ETH1 port Not compatible with IEEE 802.3af / 802.3at / 802.3bt Mode B, 9 – 30 VDC |
| Power consumption | Idle: 0.3 W Max: 2.3 W |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |

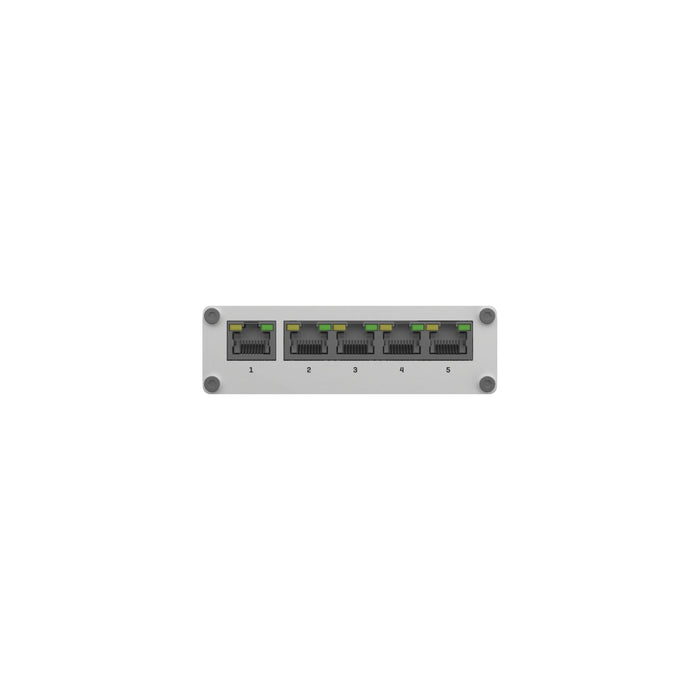

| Status LEDs | 1 x Power LED 10 x ETH status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W × H × D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 174 g |
| Mounting options | Integrated DIN rail bracket Wall mount and flat surface (additional kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress protection rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE |
| EMC Standards | EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 |
| Immunity | ESD: EN 61000-4-2:2009 Radiated: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge: EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 |
| Safety | |
| Standards | CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
| Performance Specifications | |
| Bandwidth (non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table | 2K entries |
| Jumbo frame support | 9216 bytes |
FAQs
Q1: What is the Teltonika TSW110 used for?
A: The TSW110 is an unmanaged Ethernet switch designed to provide reliable, high‑speed wired connectivity across multiple Gigabit devices, suitable for industrial, IoT, or office networks.
Q2: How many and what type of network ports does the TSW110 have?
A: It includes 10 × 10/100/1000 Mbps RJ45 Ethernet ports, offering full Gigabit connectivity with auto‑MDI/MDIX for simplified cabling and flexible link configurations.
Q3: Does the TSW110 support Power over Ethernet (PoE)?
A: The TSW110 is not a PoE injector/switch by itself — it provides standard Gigabit Ethernet connectivity. Powering devices that require PoE must be done using a separate PoE injector or PoE‑capable switch upstream.
Q4: What are the mechanical and environmental specifications of the TSW110?
A: The switch has a rugged, industrial‑grade metal housing designed for DIN‑rail or panel mounting. It is rated for an ambient operating temperature range from ‑40 °C to +75 °C, making it suitable for demanding environments such as industrial cabinets or outdoor shelter installations.
Q5: What deployment scenarios is the TSW110 best suited for?
A: The TSW110 is ideal for industrial automation networks, small office environments, IoT and sensor networks, surveillance camera systems (when paired with a PoE source), and other applications needing multiple Gigabit Ethernet connections in harsh or wide‑temperature environments.
