Teltonika TSW114
Please contact us for stocking information.

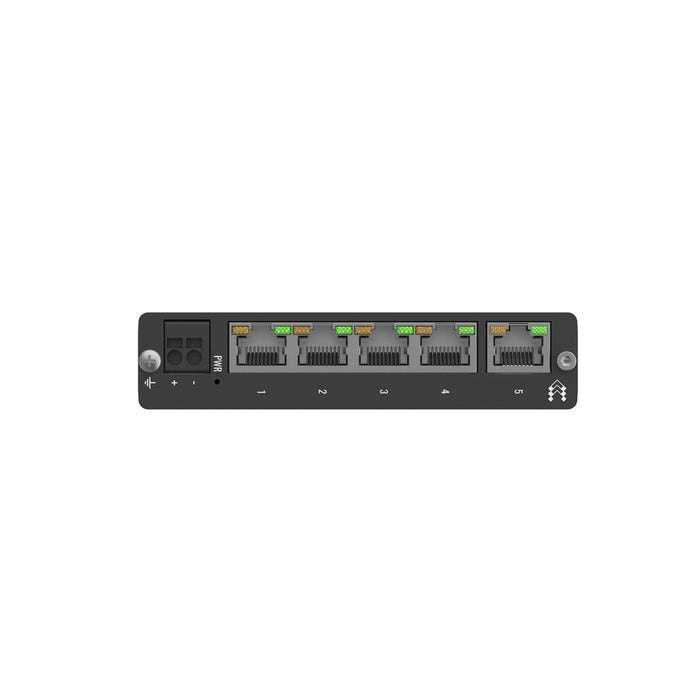

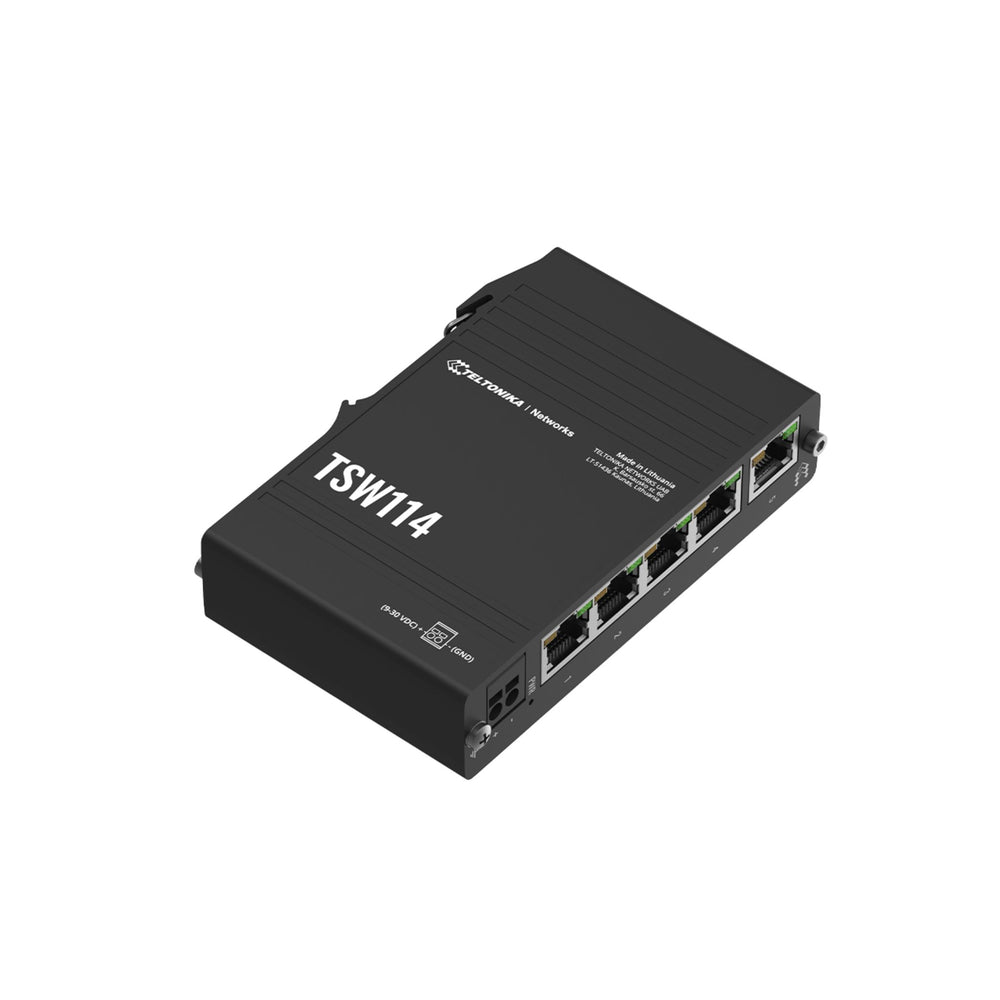

With TSW114, you can easily streamline your connectivity at an affordable price. Its plug and play design, along with 5 x Gigabit Ethernet ports, ensures reliable and stable connectivity, making it perfect for high-bandwidth solutions. The Ethernet switch features front-facing ports and an integrated DIN rail bracket, making it simple to install in a variety of industrial settings, including control cabinets.
Tech Specs
Click here for the Teltonika TSW114 datasheet.
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Ethernet | |
| Ports | 5 x ETH ports, 10/100/1000 Mbps Supports auto MDI/MDIX crossover |
| IEEE 802.3 standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Power via ETH1 port Not compatible with IEEE 802.3af / 802.3at / 802.3bt Mode B, 9 – 30 VDC |
| Power consumption | Idle: 0.3 W Max: 2.3 W |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED 10 x ETH status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W × H × D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 174 g |

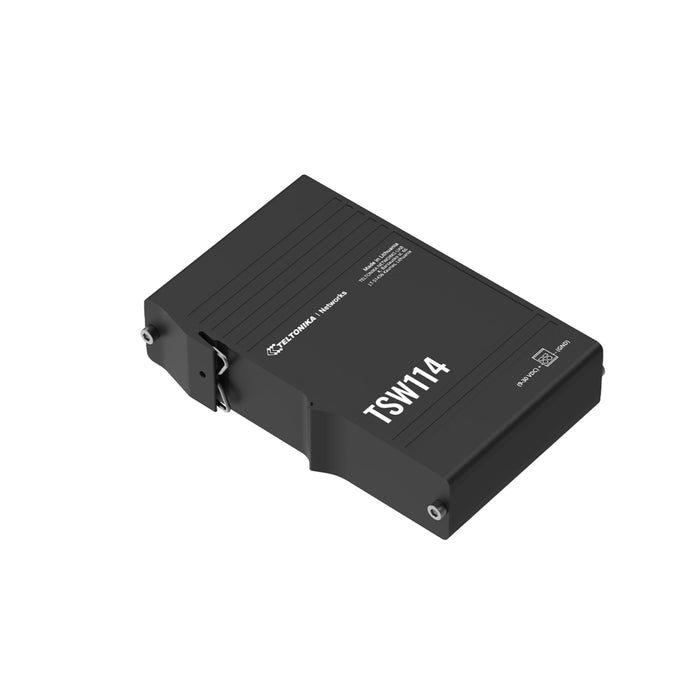

| Mounting options | Integrated DIN rail bracket Wall mount and flat surface (additional kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress protection rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE |
| EMC Standards | EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 |
| Immunity | ESD: EN 61000-4-2:2009 Radiated: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge: EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 |
| Safety | |
| Standards | CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
| Performance Specifications | |
| Bandwidth (non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table | 2K entries |
| Jumbo frame support | 9216 bytes |
FAQs
Q1: What is the Teltonika TSW114 used for?
A: The TSW114 is an unmanaged industrial Ethernet switch designed to provide reliable Gigabit connectivity across 14 network ports — ideal for industrial, IoT, or multi-device deployments requiring rugged performance.
Q2: How many and what type of network ports does the TSW114 have?
A: It offers 14 × 10/100/1000 Mbps RJ45 Ethernet ports with auto-MDI/MDIX, allowing flexible network connections without manual crossover cabling.
Q3: Does the TSW114 support PoE power delivery?
A: Yes — the switch supports passive PoE power supply pass-through on selected ports, enabling it to deliver DC power to downstream PoE devices without separate power injectors.
Q4: What are the mechanical and environmental specifications of the TSW114?
A: It features a rugged metal housing with DIN-rail mounting capability. The switch is rated to operate in ambient temperatures from -40 °C to +75 °C, making it suitable for industrial enclosures, outdoor-adjacent cabinets, or harsh environments.
Q5: What deployment scenarios is the TSW114 best suited for?
A: The TSW114 is ideal for industrial automation, factory networks, large IoT or sensor networks, remote equipment clusters, or any application needing multiple Gigabit connections with rugged, wide-temperature-tolerant hardware.
