Tycon Systems Outdoor Weatherproof Enclosure for ESP-1000-POE

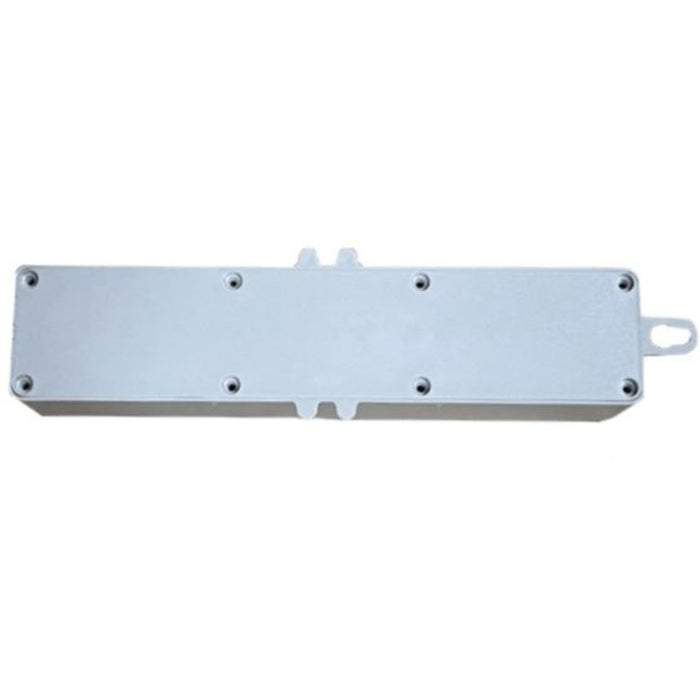

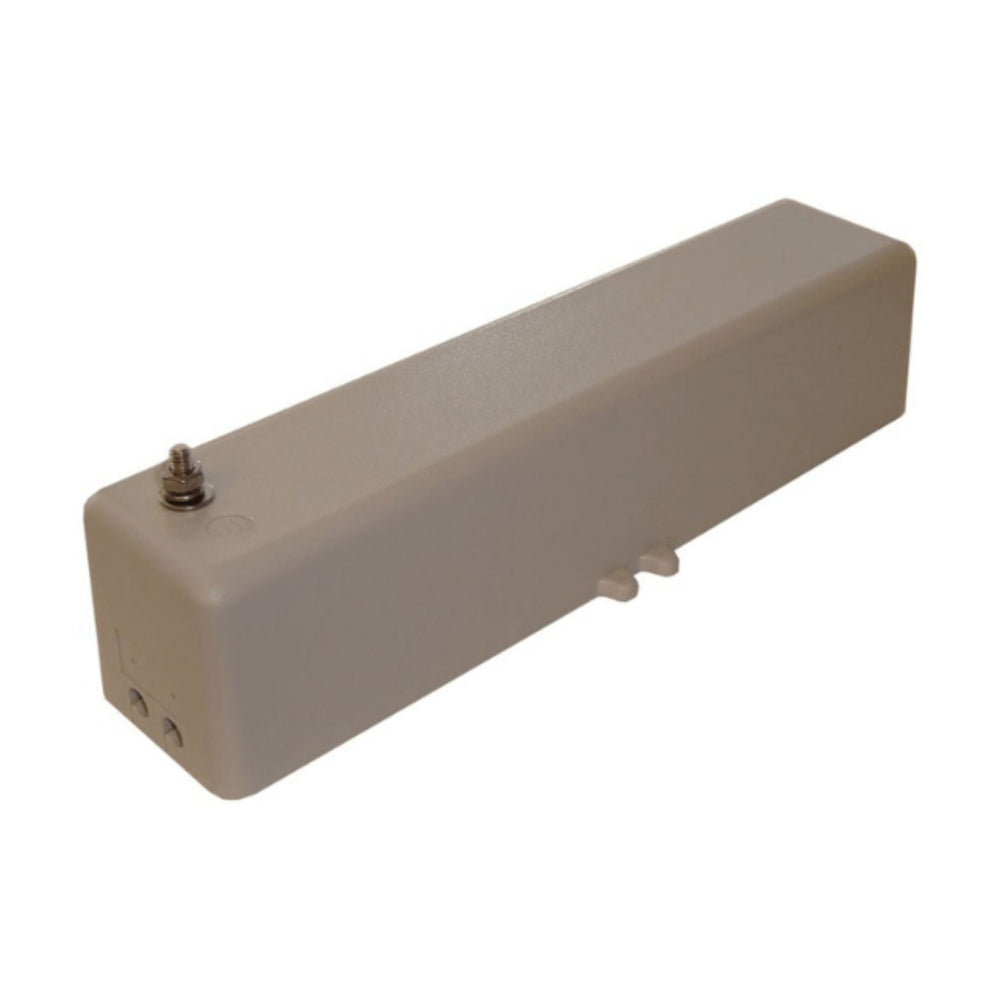

The ENC-ESP-100-POE outdoor weatherproof Ethernet surge suppressor enclosure is specifically designed for ESP-1000-POE series of Ethernet Surge Suppressors. It offers a cost-effective and convenient solution for locating the surge suppressors near the equipment in need of protection. There are two CAT5/6 cable feedthru with clamp that provide strain relief and waterproof sealing. An external ground connection is available for proper grounding. Made from durable UV and impact resistant plastic, the enclosure ensures long-lasting and worry-free operation. It can be easily mounted on poles or walls.
Tech Specs
Click here for the Tycon ESP-100-POE-ENC datasheet.
| Device Specifications | |
|---|---|
| Weatherproof Rating | NEMA 4X, IP65 |
| Ground Bolt Size | 4 mm |
| Temperature Rating | -50 to +85 °C (-58 to +185 °F) |
| Humidity (RH) | 0% - 100% |
| MTBF (Mean Time Between Failure) | 1,000,000 Hours |
| Dimensions (L × W × H) | 203 × 45 × 45 mm (8 × 1.75 × 1.75”) |
| Weight | 130 g (4.6 oz) |
| Warranty | 3 years |
FAQs
Q1: What is the Tycon ENC‑ESP‑100‑POE and what is it used for?
A: The Tycon ENC‑ESP‑100‑POE is a weatherproof enclosure designed to house Ethernet surge suppressors, particularly for PoE‑equipped network equipment. It protects surge protection modules and keeps them positioned close to the equipment they safeguard.
Q2: What equipment does the Tycon ENC‑ESP‑100‑POE support?
A: This enclosure is made for use with compatible Ethernet surge suppressors that protect PoE network devices, helping reduce surge-related damage in outdoor or exposed environments.
Q3: What physical features does the Tycon ENC‑ESP‑100‑POE offer?
A: The ENC‑ESP‑100‑POE features a rugged, weatherproof housing with dual CAT5/6 cable feed‑through ports that clamp around cables to provide strain relief and environmental sealing.
Q4: How does the Tycon ENC‑ESP‑100‑POE help with grounding?

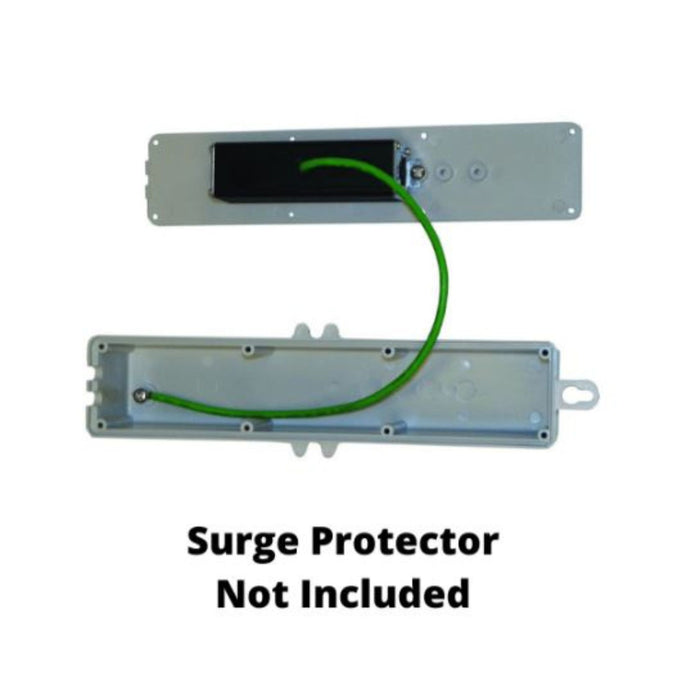

A: The enclosure includes an external ground connection point, enabling proper grounding of the enclosed surge suppressor for effective protection against electrical surges.
Q5: What mounting and environmental characteristics does the Tycon ENC‑ESP‑100‑POE have?
A: It is built for outdoor use with UV‑resistant and impact‑resistant construction, supports wall or pole mounting, and is rated for a wide temperature and humidity range suitable for harsh environments.
