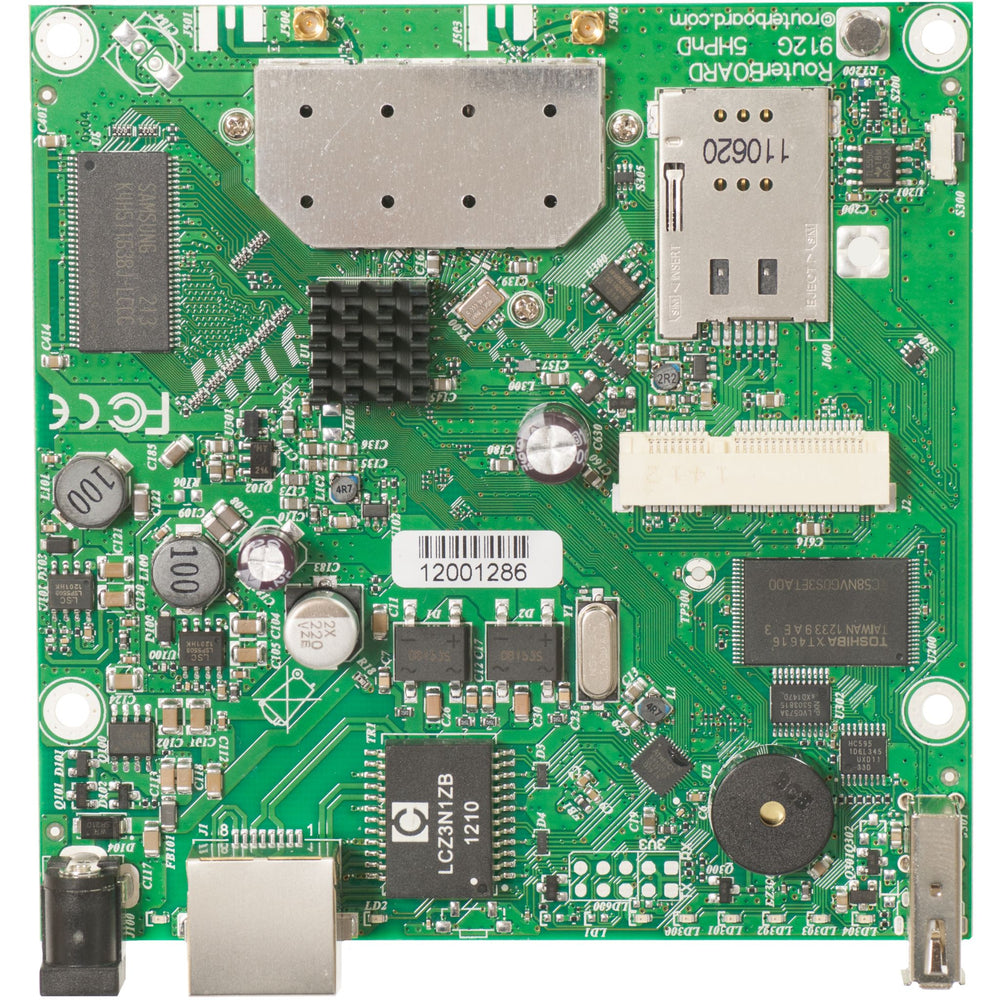

MikroTik RouterBOARD RB912UAG-5HPnD System Board
The MikroTik RouterBoard RB912UAG-5HPnD is a compact and versatile wireless router that includes a high power wireless card and a miniPCIe slot for 802.11 wireless or 3G card. With its integrated Gigabit port, it can fully utilise the high speeds of 802.11n wireless. The wireless card has an impressive output power of 1000mW and the device also features built-in 16kV ESD protection on the Ethernet and MMCX ports.
Tech Specs
| Device Specifications | |
|---|---|
| General | |
| Product Code | RB912UAG-5HPnD |
| Suggested Price | $79.00 |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU Core Count | 1 |
| CPU Nominal Frequency | 600 MHz |
| Dimensions | 105 x 105 mm |
| RouterOS License | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage Size | 128 MB |
| Storage Type | NAND |
| MTBF | Approximately 100,000 hours at 25°C |
| Tested Ambient Temperature | -40°C to 70°C |
| Powering | |
| Number of DC Inputs | 2 (DC jack, PoE-IN) |
| DC Jack Input Voltage | 8–30 V |
| Max Power Consumption | 12 W |
| PoE In | Passive PoE |
| Cooling Type | Passive |
| PoE In Input Voltage | 8–30 V |
| Wireless Specifications | |
| Wireless 5 GHz Max Data Rate | 300 Mbit/s |
| Wireless 5 GHz Number of Chains | 2 |
| Wireless 5 GHz Standards | 802.11a/n |
| Wireless 5 GHz Chip Model | AR9342 |
| Wireless 5 GHz Generation | Wi-Fi 4 |
| Ethernet | |
| 10/100/1000 Ethernet Ports | 1 |
| Peripherals | |
| Number of SIM Slots | 1 Modem (Mini SIM) |
| MiniPCI-e Slots | 1 |
| Number of USB Ports | 1 |
| USB Power Reset | Yes |
| USB Slot Type | USB Type A |
| Max USB Current (A) | 1 |
| Other | |
| PCB Temperature Monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP00 |
FAQs
Q1: What is the RB912UAG‑5HPnD used for?
A: It is a compact wireless router / CPE (customer‑premises equipment) designed for 5 GHz wireless links — suitable for point‑to‑point or point‑to‑multipoint wireless bridging, CPE installations, or as a high‑power 802.11n AP/router.
Q2: What are the core hardware and wireless specifications?
A: The device uses a 600 MHz AR9342 CPU, 64 MB RAM and 128 MB onboard NAND storage. It includes a built‑in 2‑chain 5 GHz radio (802.11a/n), delivering up to 300 Mbps wireless data rate over 5 GHz.
Q3: What ports, expansion and connectivity options does it provide?
A: There is 1 × Gigabit Ethernet port (RJ45), 1 × miniPCIe slot (for an additional radio or 3G/4G modem), 1 × USB‑A port, and a SIM‑slot option when a modem is installed.
Q4: How is the RB912UAG‑5HPnD powered, and what are its power requirements?
A: The unit can be powered either via the DC jack (8–30 V DC) or via passive PoE‑in (8–30 V) on the Ethernet port. Typical maximum power consumption is about 12 W. The unit is passively cooled (no fan).
Q5: What environmental and build characteristics does the device have?
A: The router measures ~ 105 × 105 mm, operates across a wide ambient temperature range from –40 °C to +70 °C, and is suitable for indoor or weather-protected outdoor installations when placed in suitable enclosures or weather‑resistant housings.
