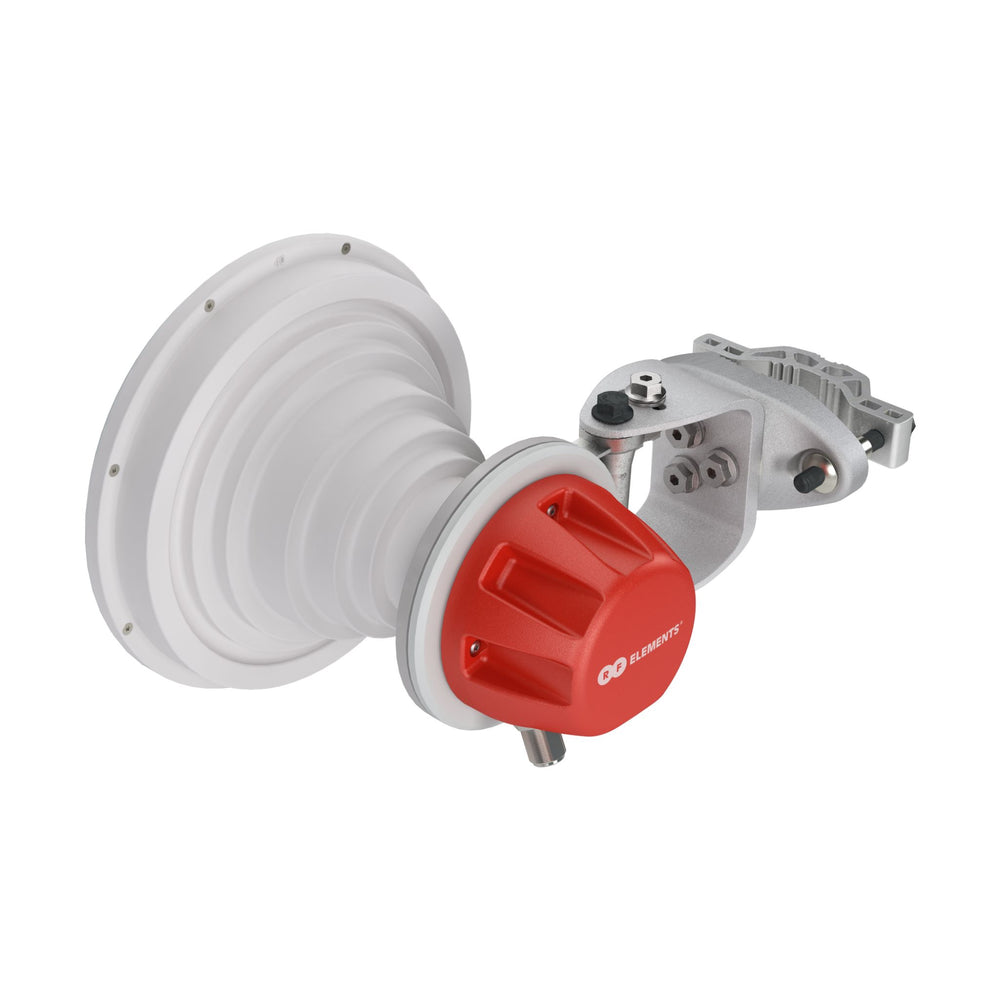

RF elements HG3-CC-S40 40° Gen2 Carrier Class Symmetrical Horn Antenna
The HG3-CC Gen2 Antenna offers unique RF performance in a compact package with a symmetrical main beam and small side lobes for interference suppression. Its compact size and radiation patterns make it ideal for high density AP clusters and radio co-location. This updated version includes improvements in design and materials, as well as a reduced number of radome sizes and N-female connectors.
Tech Specs
Click here for the RF Elements HG3-CC-S40 datasheet.
| Device Specifications | |
|---|---|
| Technical Data | |
| Radio Connection | 2x N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant polycarbonate Polypropylene Aluminium Zinc Stainless Steel |
| Environmental Rating | IP55 |
| Flame Rating | UL 94 HB |
| Pole Mounting Diameter | 30–80 mm (1.1–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 48/21 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 392/174 cm² – Front/Side (60.8/27 in²) |
| Mechanical Tilt | ± 25° |
| Weight | 2.3 kg / 5 lbs – single unit 3.6 kg / 7.9 lbs – single unit incl. package 36.9 kg / 81.3 lbs – carton (5 units) |
| Packaging Dimensions | Single Unit Retail Box: 412 × 277 × 234 mm (16.2 x 10.9 x 9.2 inch) 5 Units Carton Box: 1190 × 300 × 440 mm (46.8 x 11.8 x 17.3 inch) |
| Performance | |
| Frequency Range | 5180 - 6400 MHz |
| Gain | 16.2 dBi |
| Azimuth/Elevation BW -3 dB | H 27° / V 27° |
| Azimuth/Elevation BW -6 dB | H 40° / V 40° |
| Front-to-Back Ratio | 35 dB |
| VSWR Max 5180-5850 MHz | 1.6 |
| VSWR Max 5850-6400 MHz | 1.9 |
| Beam Efficiency** | 93% |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
FAQs
Q1: What is the RF Elements Symmetrical Horn Carrier Class Gen 2 HG3‑CC‑S40 and what is it used for?
A: The RF Elements Symmetrical Horn Carrier Class Gen 2 HG3‑CC‑S40 is a high‑performance horn‑style wireless antenna designed for outdoor point‑to‑multipoint (PtMP) networks. It offers a balanced beam pattern that delivers consistent, reliable wireless signal coverage across a defined sector.
Q2: What does the “40°” beamwidth mean for this antenna?
A: The 40° horizontal beamwidth reflects the range of the antenna’s signal spread, providing moderate sector coverage that strikes a good balance between range and area coverage. This makes it suitable for mid‑range PtMP links with uniform performance.
Q3: How does the symmetrical horn design improve wireless performance?
A: The symmetrical horn design provides uniform signal dispersion with minimal sidelobe interference, which improves coverage consistency and signal stability across the sector, resulting in more reliable connections for multiple client devices.
Q4: What applications is the HG3‑CC‑S40 antenna ideal for?
A: The HG3‑CC‑S40 is ideal for wireless ISP base stations, campus networks, fixed‑wireless access points, and community broadband deployments where reliable sector coverage and performance are required over a moderate outdoor area.
Q5: What physical and environmental features does the HG3‑CC‑S40 offer?
A: The antenna is built with a rugged outdoor housing engineered to withstand harsh weather and temperature conditions. It supports secure mast or pole mounting for stable installation and long‑term outdoor operation.
