RF elements HG3-CC-S80 80° Gen2 Carrier Class Symmetrical Horn Antenna
The RF elements HG3-CC-S80 is a scalar horn antenna with an 80° beam width and 10.4dBi gain. Its symmetrical design allows for excellent noise rejection and network scalability. Featuring N-female connectors, it has a unique circular cross-section for improved beam performance and co-location capabilities, making it ideal for high-density sectors.
Tech Specs
Click here for the RF Elements HG3-CC-S80 datasheet.
| Device Specifications | |
|---|---|
| Technical Data | |

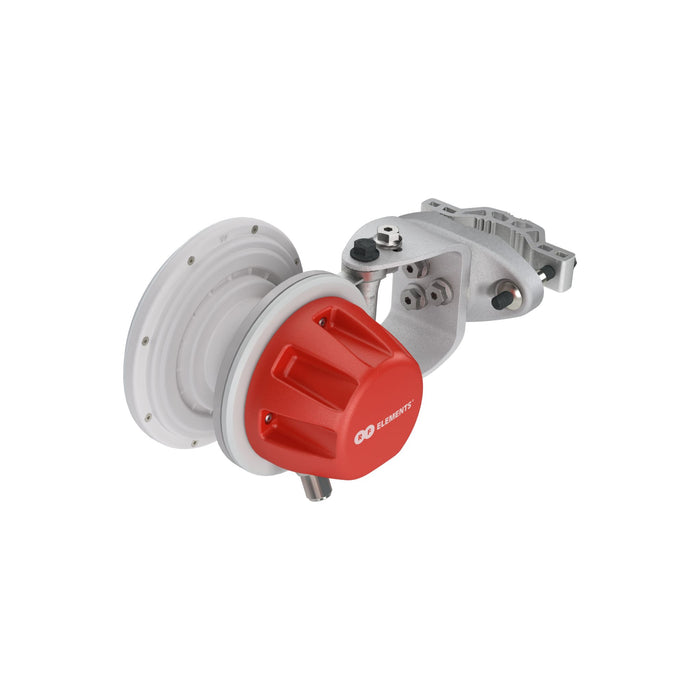

| Radio Connection | 2x N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant polycarbonate Polypropylene Aluminium Zinc Stainless Steel |
| Environmental Rating | IP55 |
| Flame Rating | UL 94 HB |

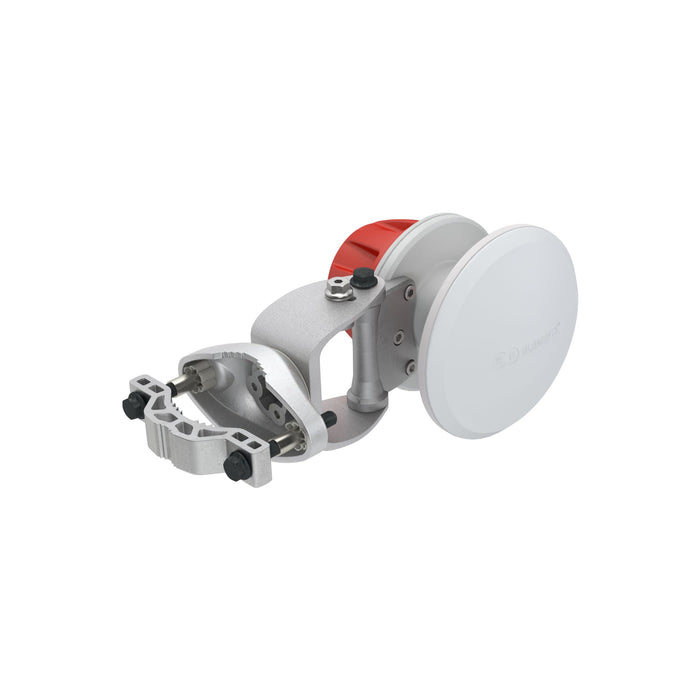

| Pole Mounting Diameter | 30–80 mm (1.1–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 24/11 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 197/93 cm² – Front/Side (30.5/14.4 in²) |
| Mechanical Tilt | ± 25° |
| Weight | 1.8 kg / 3.9 lbs – single unit 2.6 kg / 5.7 lbs – single unit incl. package 27.2 kg / 59.2 lbs – carton (10 units) |
| Packaging Dimensions | Single Unit Retail Box: 305 × 239 × 183 mm (12 x 9.4 x 7.2 inch) 10 Units Carton Box: 940 × 510 × 335 mm (37 x 20 x 13.2 inch) |
| Performance | |
| Frequency Range | 5180 - 6400 MHz |
| Gain | 10.4 dBi |
| Azimuth/Elevation BW -3 dB | H 60° / V 60° |
| Azimuth/Elevation BW -6 dB | H 80° / V 80° |
| Front-to-Back Ratio | 29 dB |
| VSWR Max 5180-5850 MHz | 1.6 |
| VSWR Max 5850-6400 MHz | 1.9 |
| Beam Efficiency** | 94% |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
FAQs
Q1: What is the RF Elements Symmetrical Horn Carrier Class Gen 2 HG3‑CC‑S80 and what is it used for?
A: The RF Elements Symmetrical Horn Carrier Class Gen 2 HG3‑CC‑S80 is a high‑performance horn‑style wireless antenna designed for outdoor point‑to‑multipoint (PtMP) networks. It delivers broad sector coverage with consistent signal strength and reduced interference.
Q2: What does the “80°” beamwidth mean for this antenna?
A: The 80° horizontal beamwidth specifies how widely the antenna spreads its signal across the coverage area. A wide 80° beam is ideal for serving larger sectors while maintaining uniform coverage and reliable throughput.
Q3: How does the symmetrical horn design improve wireless performance?
A: The symmetrical horn design provides even signal dispersion with minimal sidelobes, reducing interference and improving reliability across the full beam. This leads to more consistent links in dense client environments.
Q4: What applications is the HG3‑CC‑S80 antenna suitable for?
A: This antenna is ideal for wireless ISP base stations, campus wireless networks, fixed‑wireless access points, and community broadband deployments where broad, stable sector coverage and performance are crucial.
Q5: What physical and environmental features does the HG3‑CC‑S80 offer?
A: The HG3‑CC‑S80 is built with a rugged outdoor housing that stands up to harsh weather and temperature extremes. It supports mast or pole mounting for reliable installation and long‑term outdoor performance.
