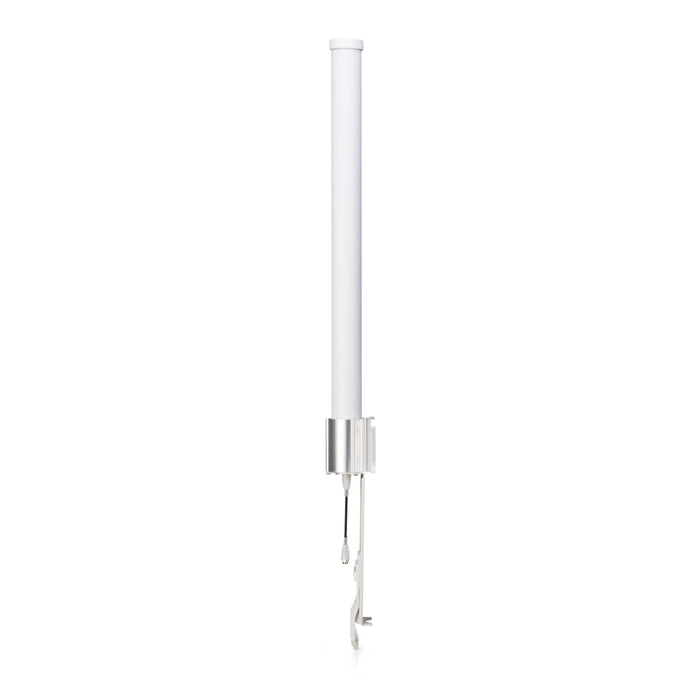

Ubiquiti airMAX 5 GHz, 13 dBi, Omni

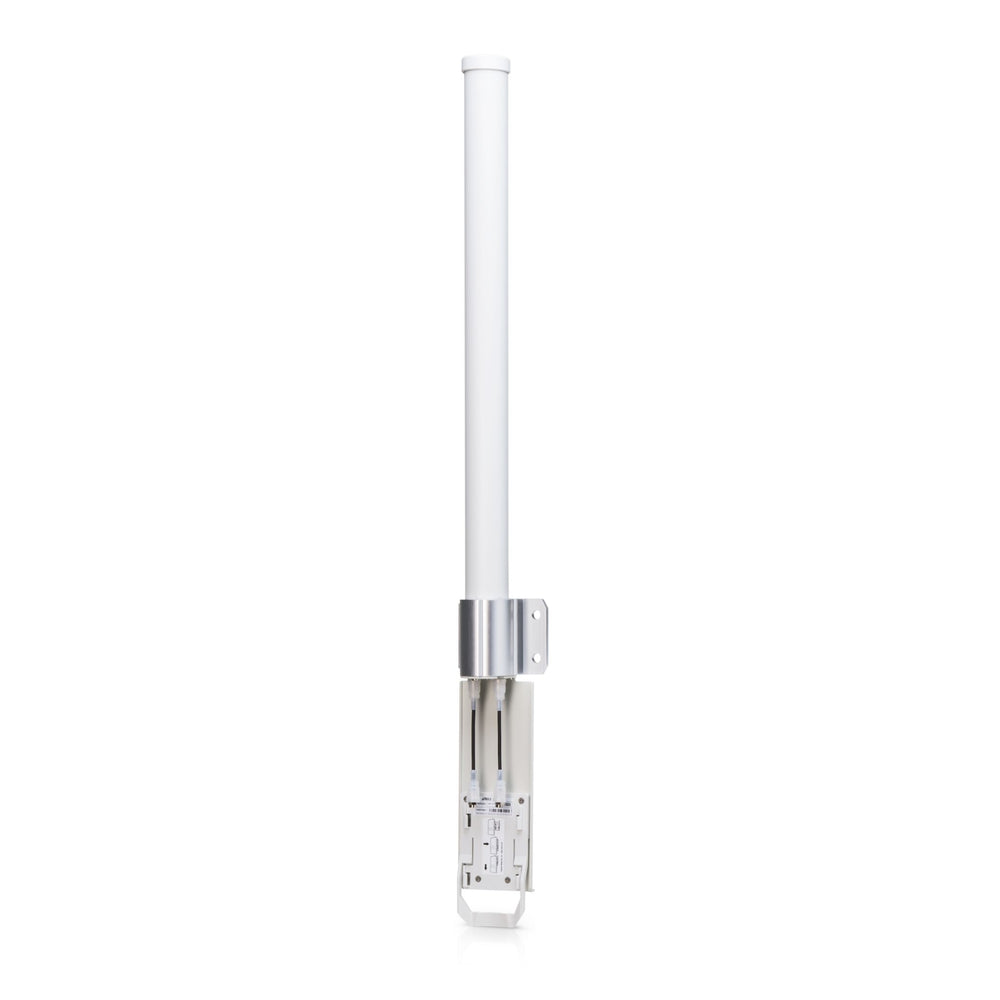

The Ubiquiti airMAX 5 GHz, 13 dBi, Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna designed for high-performance connectivity. This professionally engineered antenna features a built-in mounting for a Rocket M5 to easily attach to, and includes a pair of connecting pigtails for fast throughput of up to 300 Mbps. The antenna also comes with pole mounting brackets for effortless installation.
Tech Specs
Click here for the AMO-5G13 datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 799 x 90 x 65 mm (31.5 x 3.5 x 2.6") |
| Weight | 820 g (1.8 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N at 200 km/h (19 lbf at 125 mph) |
| Downtilt | 2° |
| Hardware | |
| Frequency Range | 5.45—5.85 GHz |
| Antenna Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | ✓ |
FAQs
Q1: What is the Ubiquiti AMO-5G13?
A1: The Ubiquiti AMO-5G13 is a 5 GHz omnidirectional antenna designed for outdoor wireless networking. It features a 13 dBi gain, dual-linear polarization, and a 360° horizontal beamwidth, making it ideal for Point-to-Multipoint (PtMP) deployments.
Q2: What are the key specifications of the AMO-5G13?
A2:
-
Frequency Range: 5.45–5.85 GHz
-
Gain: 13 dBi
-
Elevation Beamwidth: 7°
-
Horizontal Beamwidth: 360° (omnidirectional)
-
Electrical Downtilt: 2°
-
Max VSWR: 1.5:1
-
Polarization: Dual-Linear
-
Cross-Polarization Isolation: ≥25 dB
-
Wind Survivability: 200 km/h (125 mph)
-
Wind Loading: 84.52 N @ 200 km/h (19 lbf @ 125 mph)
-
Dimensions: 799 x 90 x 65 mm (31.5 x 3.5 x 2.6")
-
Weight: 820 g (1.8 lb)
-
Mounting: Universal pole mount, RocketM bracket, and weatherproof RF jumpers included
Tech Specs
Q3: How does the AMO-5G13 compare to other airMAX Omni antennas?
A3: Compared to other airMAX Omni models, the AMO-5G13 offers a higher gain (13 dBi) and narrower elevation beamwidth (7°), providing improved range and signal strength for PtMP deployments. Its dual-linear polarization and high cross-polarization isolation enhance performance in environments with potential interference.
Q4: What applications is the AMO-5G13 suitable for?
A4: The AMO-5G13 is ideal for outdoor PtMP wireless networks, providing 360° coverage for connecting multiple client devices. It's commonly used in urban areas, campuses, industrial sites, and rural locations where omnidirectional coverage is required.
Q5: How is the AMO-5G13 installed and powered?
A5: The AMO-5G13 is designed to seamlessly integrate with Ubiquiti's RocketM radios. It features a built-in Rocket mount, allowing for easy snap-on installation without the need for special tools. The antenna is powered via 24V passive PoE, and the package includes a universal pole mount, RocketM bracket, and weatherproof RF jumpers for convenient setup.
