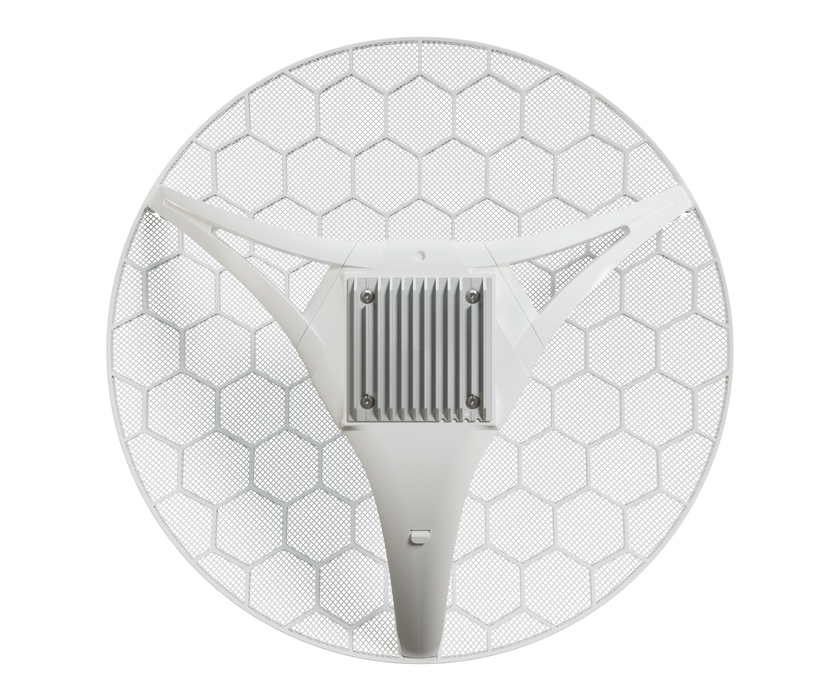

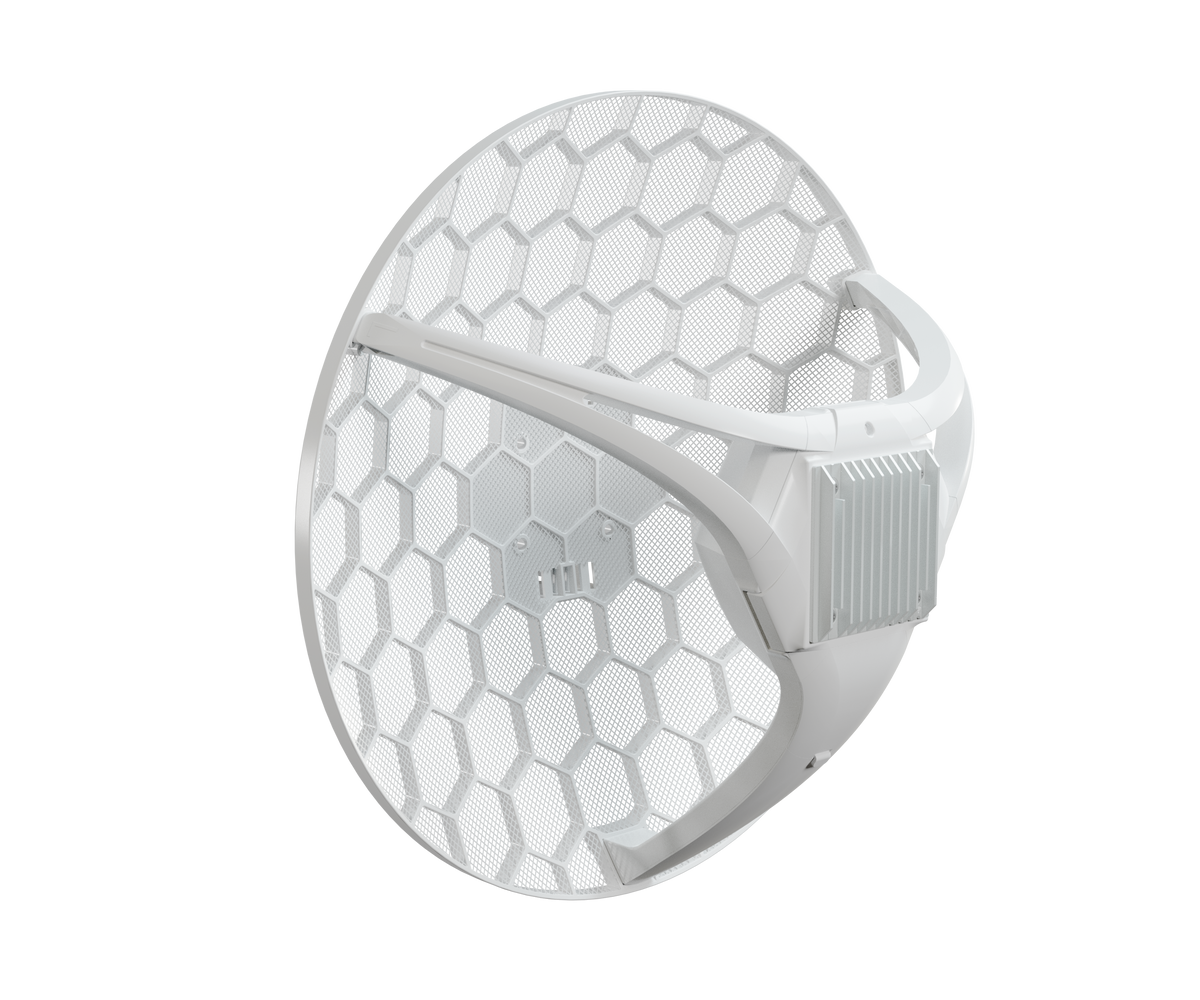

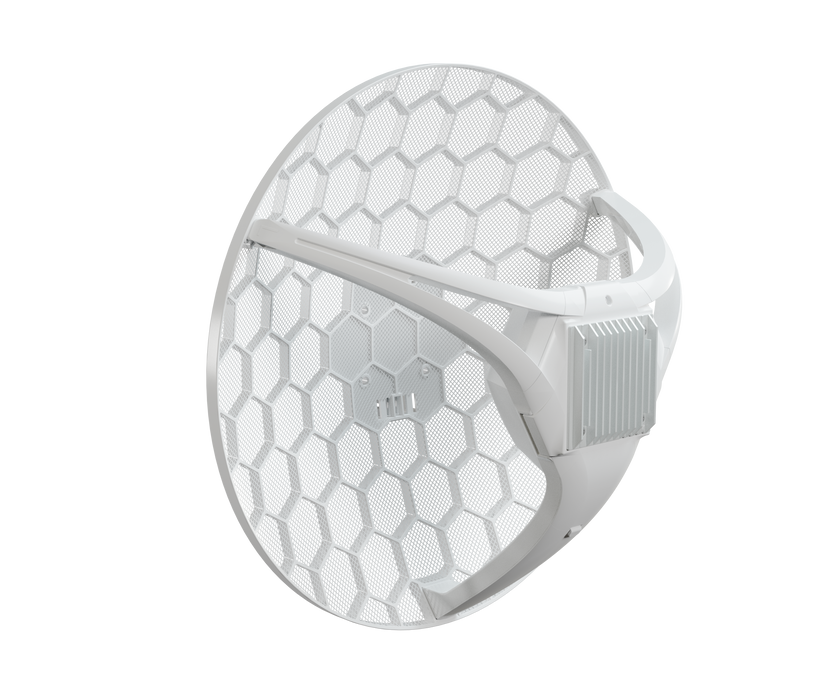

MikroTik LHGG LTE18 Radio
Please contact us for stocking information.
The LHG features a state-of-the-art Category 18 LTE modem that delivers unparalleled mobile internet speeds. Its 1.2 Gbps CAT18 modem and top-of-the-line 17 dBi antenna make it the ideal choice for establishing connections with cell towers in distant regions. Experience improved performance in areas with limited or unstable signal strength thanks to carrier aggregation and simultaneous band usage.
Tech Specs
Click here for the MikroTik LHGG LTE18 Radio datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | LHGGM&EG18-EA |
| Architecture | ARM 64bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200,000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $279.00 |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Max power consumption without attachments | 8 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| Mobile | |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 / 3 / 5 / 8 (MHz) |
| LTE Category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
| MIMO DL | 2x2 |
| LTE FDD bands | 1 / 3 / 5 / 7 / 8 / 20 / 28 (MHz) |
| LTE TDD bands | 38 / 40 / 41 (MHz) |
| TAC | 86981604 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Number of M.2 slots | 1 |
| Other | |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 54 |
FAQs
1. What is included in the MikroTik LHG LTE18 Kit?
The kit includes the LHGGM LTE18 modem with high-gain LTE antenna and the EG18-EA unit, providing a complete outdoor LTE solution with Gigabit Ethernet and RouterOS support.
2. Does the MikroTik LHG LTE18 Kit support LTE connections?
Yes, it supports LTE Cat 6 for high-speed mobile connectivity, ensuring stable and reliable internet in areas without wired broadband.
3. What RouterOS features are available on the LHG LTE18 Kit?
The device runs RouterOS, allowing advanced routing, firewall, VPN, wireless bridging, QoS, and network monitoring for secure and flexible outdoor deployments.

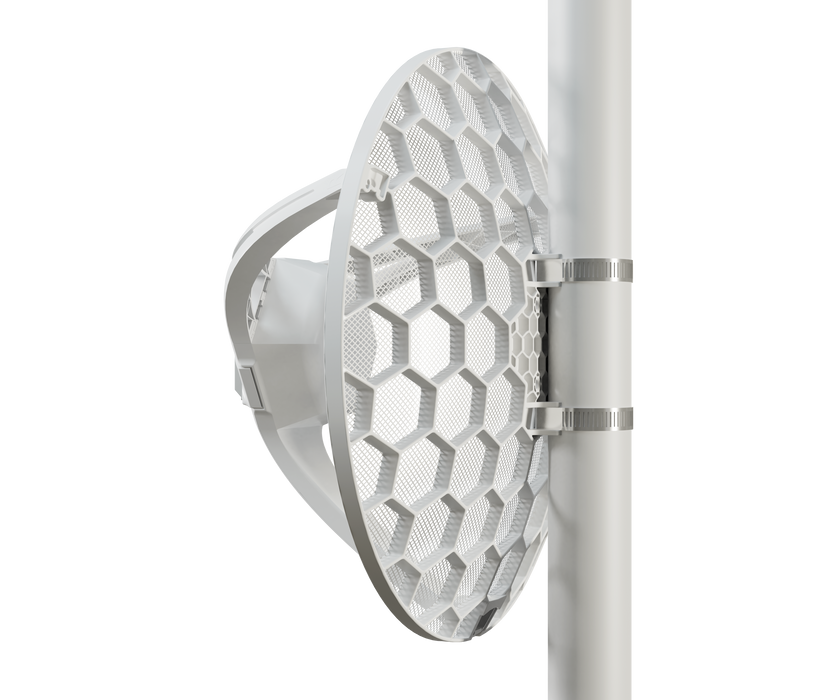

4. Can the MikroTik LHG LTE18 Kit be used outdoors in harsh conditions?
Yes, both units are designed for outdoor use with weatherproof casings, ensuring reliable operation in rain, dust, and extreme temperature environments.
5. How is the MikroTik LHG LTE18 Kit powered and connected?

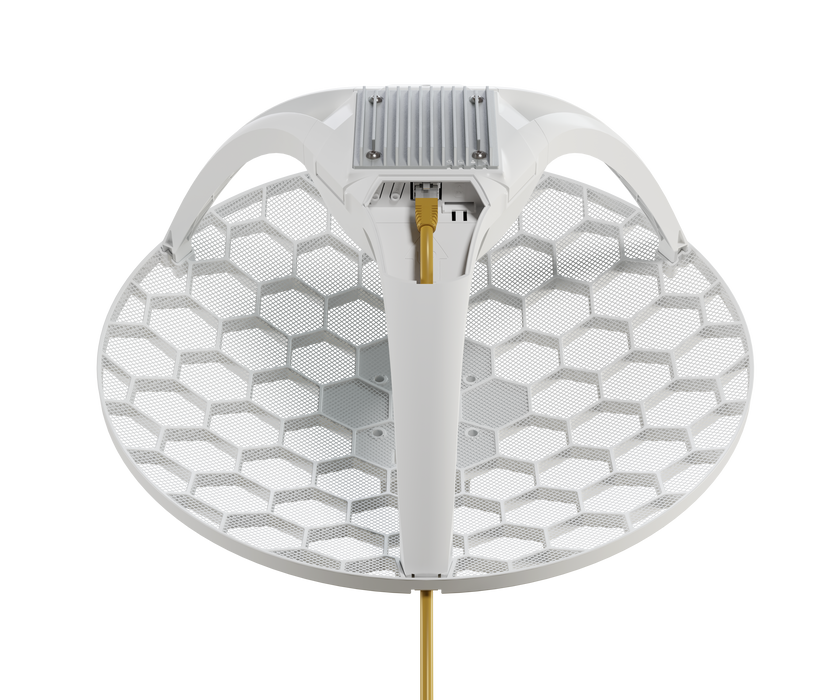

The LHG LTE18 Kit uses passive PoE over a single Gigabit Ethernet cable, delivering both power and data, making installation straightforward for rooftops or remote outdoor locations.
