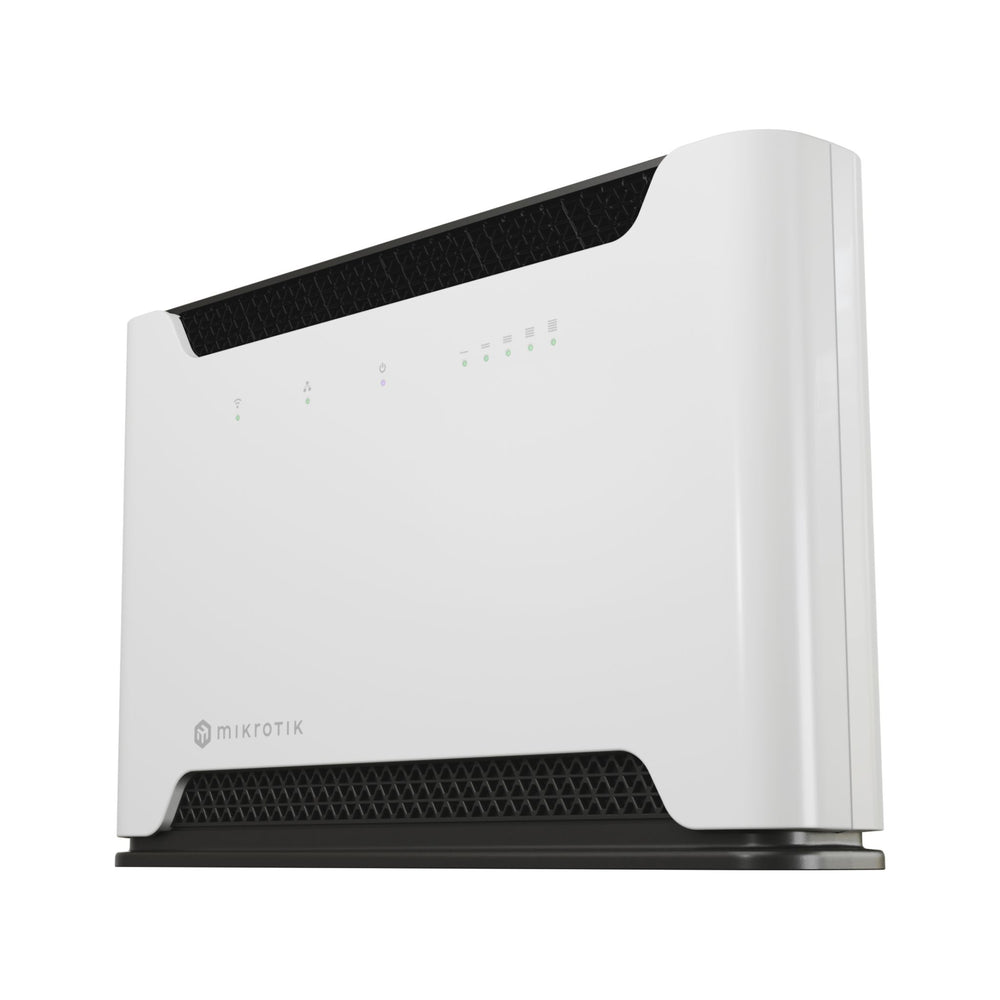

MikroTik Chateau LTE6 Home Access Point Router
Chateau LTE6 is a high-speed home access point with a quad-core CPU, fast LTE modem, and advanced networking software. It can be easily customised for different users, with options for backup LTE or wired ISP connections. Its carrier aggregation feature can double internet speeds in rural areas and it offers all the advanced features of RouterOS at a consumer-friendly price. It is also ideal for mobile operators, as it supports remote client management options and can be customised with branding and special project pricing. Improve your internet experience with Chateau LTE6.
Tech Specs
Click here for the MikroTik Chateau LTE6 datasheet.
| Device Specifications | |
|---|---|
| Product code | D53G-5HacD2HnD-TC&FG621-EA |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 448-896 (auto) MHz |
| Switch chip model | IPQ-4019 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $149.00 |
| Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1200 |
| Mobile | |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| MIMO DL | 2x2 |
| LTE FDD bands | 1 / 3 / 5 / 7 / 8 / 20 / 28 |
| LTE TDD bands | 38 / 40 / 41 |
| TAC | 86335904 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Powering | |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 21 W |
| Max power consumption without attachments | 15 W |
| Cooling type | Passive |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
| Other | |
| Mode button | Yes |
| Wireless specifications | |
| 2.4 GHz Transmit (dBm) / Receive Sensitivity | 1MBit/s 25 / -100 11MBit/s 25 / -94 6MBit/s 26 / -96 54MBit/s 23 / -78 MCS0 26 / -96 MCS7 22 / -73 |
| 5 GHz Transmit (dBm) / Receive Sensitivity | 6MBit/s 26 / -96 54MBit/s 22 / -80 MCS0 26 / -96 MCS7 21 / -75 MCS9 19 / -70 |
FAQs
Q: What is the MikroTik D53G‑5HacD2HnD‑TC&FG621‑EA used for?
A: This model is designed for home or small‑office use, combining dual‑band WiFi (2.4 GHz & 5 GHz) with a built‑in LTE Cat 6 modem (FG621‑EA) for mobile network connectivity and 5 × Gigabit Ethernet ports.
Q: What wireless standards and speeds does the D53G‑5HacD2HnD‑TC&FG621‑EA support?
A: It supports 802.11b/g/n on 2.4 GHz (dual‑chain) and 802.11a/n/ac on 5 GHz (dual‑chain), providing combined AC1200 class WiFi throughput under optimal conditions.
Q: What cellular and LTE connectivity features does the D53G‑5HacD2HnD‑TC&FG621‑EA include?
A: It includes a built‑in LTE Cat 6 modem supporting carrier aggregation for download speeds up to 300 Mbps and upload speeds up to around 50 Mbps, making it suitable for mobile‑backhaul or rural broadband scenarios.
Q: What hardware ports and management features are included in the D53G‑5HacD2HnD‑TC&FG621‑EA?
A: It offers 5 × 10/100/1000 Mbps Ethernet ports, one USB‑A port for storage or modem functionality, uses a quad‑core ARM CPU and 256 MB RAM, runs RouterOS Licence Level 4, supports advanced routing, VPN, firewall and IoT integration.
Q: Where is the D53G‑5HacD2HnD‑TC&FG621‑EA best deployed and how should it be installed?
A: Ideal for users needing both robust WiFi and mobile LTE connectivity—such as homes in rural areas, holiday lets, or small offices. It supports desktop or wall‑mount placement, and is configured easily for full use straight out‑of‑the‑box.
