MikroTik RouterBOARD Cloud Router Switch CRS317-1G-16S+RM
Please contact us for stocking information.

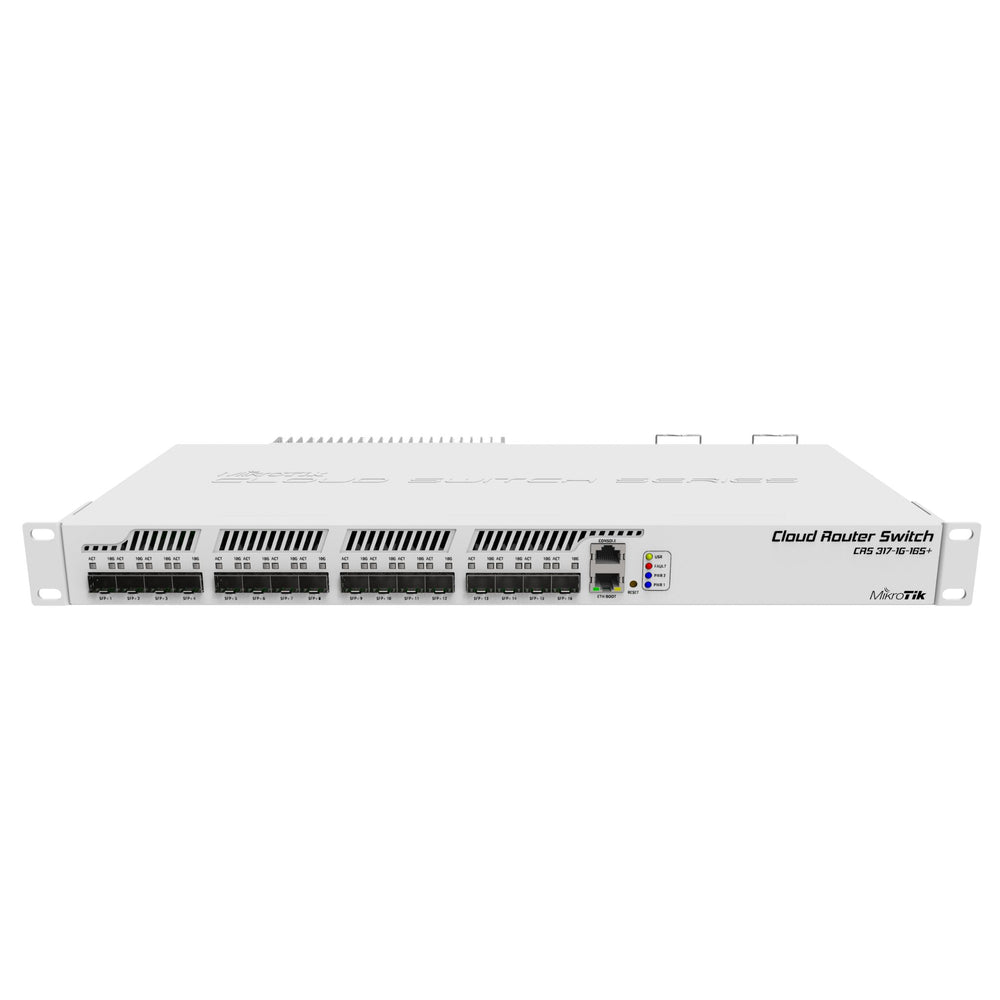

The MikroTik CRS317-1G-16S+RM is a rack-mountable switch with Layer3 features, 16 SFP+ ports for 10GbE connectivity, and a 1GbE copper management port. It offers high-performance and advanced features such as Spanning Tree Protocol and Link Aggregation, as well as a "Dual boot" option for choosing between RouterOS and SwOS.
Tech Specs
Click here for the CRS317-1G-16S+RM datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CRS317-1G-16S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX8216 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX8216 |
| Dimensions | 443 x 224 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 1 GB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $499.00 |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 44 W |
| Cooling type | 2 fans |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Fiber | |
| SFP+ ports | 16 |
| Peripherals | |
| Serial console port | RJ45 |
| Other | |
| CPU temperature monitor | Yes |
| Beeper | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
FAQs
Q: What is the MikroTik CRS317-1G-16S+RM?
A: The MikroTik CRS317-1G-16S+RM is a 1U rackmount managed switch with 16 SFP+ 10GbE ports and a 1GbE management port, designed for high-performance networks with silent, fanless operation.
Q: What network speeds does the CRS317-1G-16S+RM support?
A: It supports full 10GbE on all 16 SFP+ ports and 1GbE on the management port, providing ultra-fast connectivity for servers, storage, and high-bandwidth uplinks.
Q: Can the MikroTik CRS317-1G-16S+RM handle routing and VLANs?
A: Yes, it runs RouterOS v7 or SwitchOS and supports Layer 3 routing, VLANs, link aggregation, ACLs, and advanced switching features for flexible network management.
Q: How is the CRS317-1G-16S+RM powered and cooled?
A: The switch is powered via 24–57V DC input and features passive, fanless cooling for silent operation, making it ideal for noise-sensitive environments.
Q: What management features does the MikroTik CRS317-1G-16S+RM provide?
A: It offers network monitoring, traffic shaping, port isolation, spanning tree, and full RouterOS management tools for detailed control over 10GbE network performance and security.
