MikroTik CRS812 DDQ
Please contact us for stocking information.

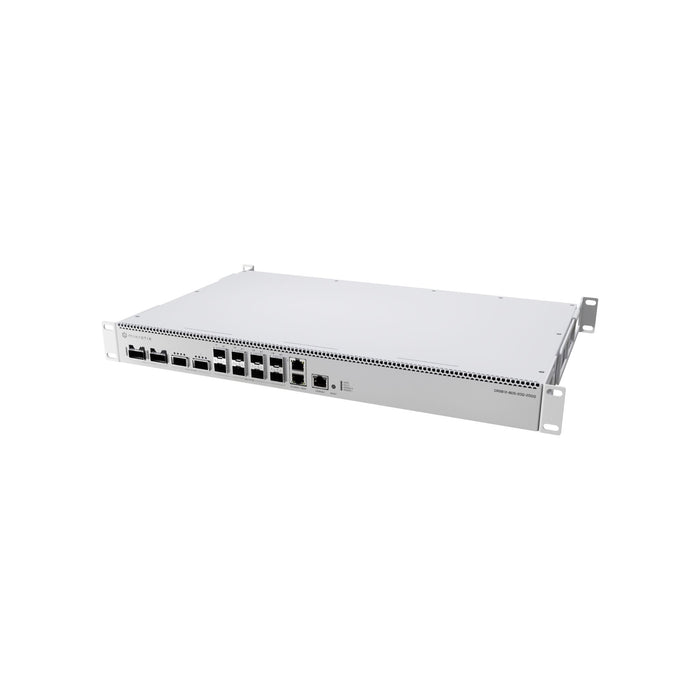

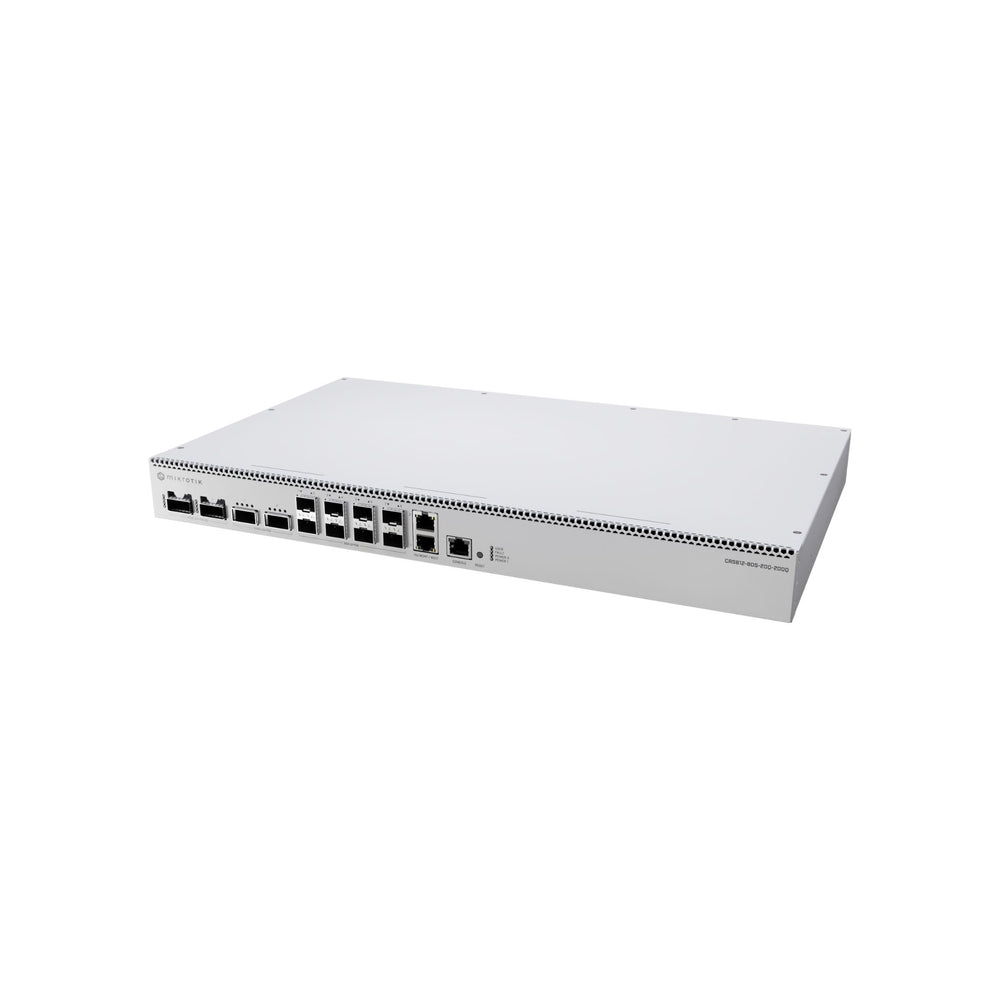

MikroTik CRS812 DDQ – Ultra-High-Speed Data Centre and Aggregation Switch
The MikroTik CRS812 DDQ is a high-capacity data centre and aggregation switch designed to deliver ultra-high-speed networking in a practical and cost-effective platform. Supporting 50G, 200G, and 400G connectivity within a single device, it is well suited to environments transitioning to next-generation bandwidth without added complexity.
Powered by a quad-core 2 GHz ARM processor with 4 GB of RAM, the CRS812 DDQ runs RouterOS v7, enabling advanced routing, switching, and traffic management. It features eight 50G SFP56 ports, two 200G QSFP56 ports, and two 400G QSFP56-DD ports, alongside two Ethernet ports supporting 1G and 10G connectivity. The QSFP56 and QSFP56-DD interfaces also support breakout modes, providing flexible port configurations across multiple speeds.

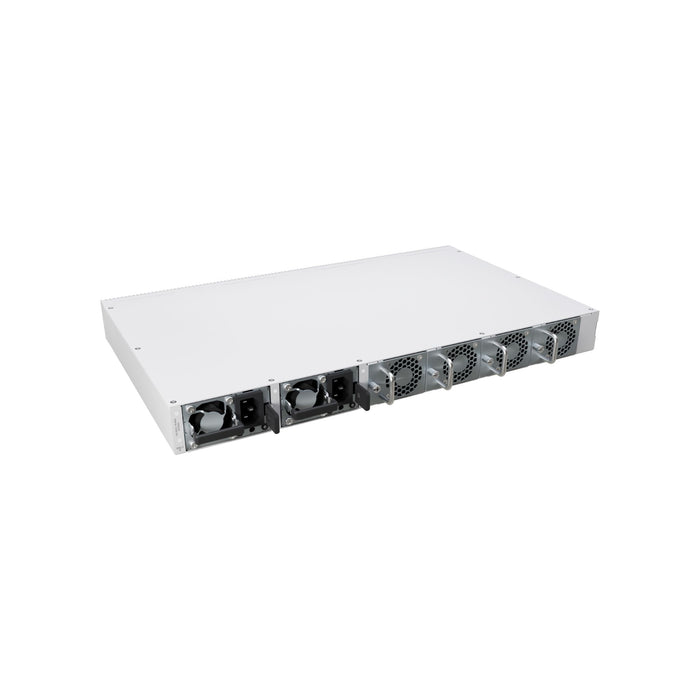

Built for reliability in demanding deployments, the CRS812 DDQ includes dual-redundant hot-swappable power supplies and four hot-swappable cooling fans. Combined with a modern switching chipset optimised for high throughput and efficiency, it is a strong choice for data centres, service providers, and enterprise core networks adopting ultra-high-speed Ethernet.
Tech Specs
View the full MikroTik CRS812 DDQ datasheet here.
| Device Specifications | |
|---|---|
| CPU | Quad-core AL52400, 2000 MHz |
| CPU Architecture | ARM 64-bit |
| Memory (RAM) | 4 GB DDR4 |
| Storage | 512 MB NAND |
| Ethernet Ports | (2) 10M/100M/1G/10G Ethernet ports |
| SFP56 Ports | (8) 50G SFP56 ports |
| QSFP56 Ports | (2) 200G QSFP56 ports |
| QSFP56-DD Ports | (2) 400G QSFP56-DD ports |
| Switch Chip | 98DX7335 |
| Dimensions (W x D x H) | 443 x 268 x 44 mm |
| Operating System | RouterOS v7 (Licence level 6) |
| Operating Temperature | -10°C to +50°C |
| AC Inputs | (2) |
| AC Input Range | 100–240 V |
| Power Adapter Output | 12 V, 20.8 A |
| Max. Power Consumption (No Attachments) | 81 W |
| Max. Power Consumption | 134 W |
