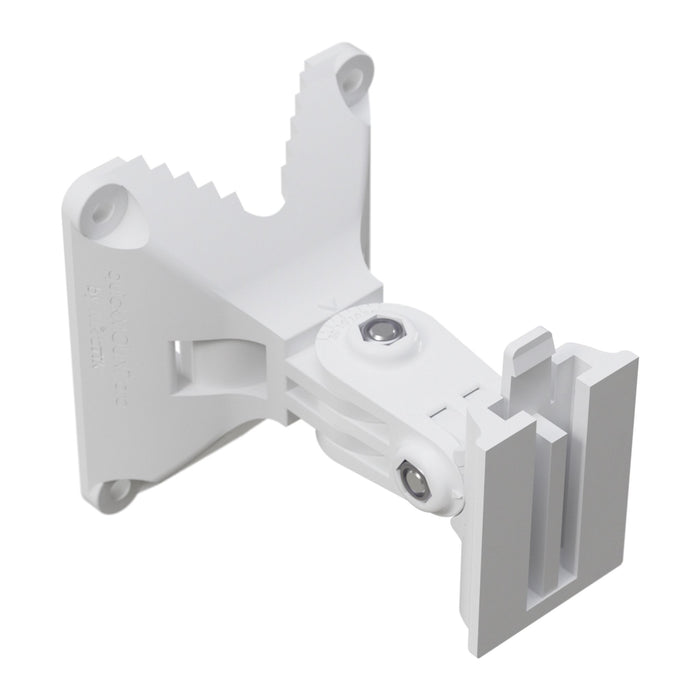

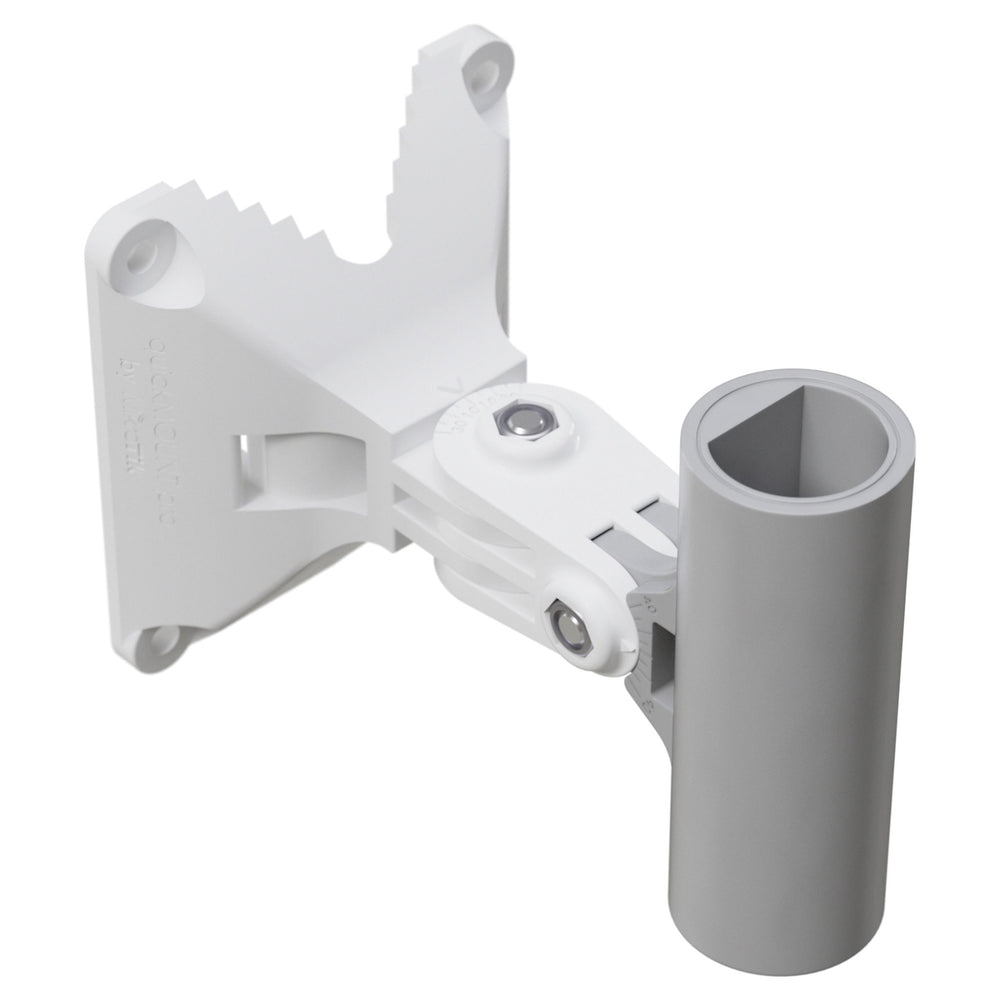

MikroTik quickMount Pro for PtP and Sector Antennas
The quickMOUNT pro is a versatile wall mount adapter for small PtP and sector antennas. It allows for 140-degree rotation in both horizontal and vertical planes and has a built-in graduation scale for precise antenna alignment. Compatible with any pole-mountable device or MikroTik's small mounting clip under 1.5 kg.
Tech Specs
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | QMP / QMP-LHG |
| Dimensions | 95x88x112mm, 74x81mm (mounting hole pattern) |
| Tube diameter | 35 mm |
| Max tube diameter to which mount can be attached | 65 mm |
| Maximum antenna weight | 1.5 kg |
| Maximum wind load | 100 N |
| Turn angle for MikroTik products | 140° |
| Compatible devices | QMP: SXT, OmniTIK, other antennas that are designed to be pole mounted QMP-LHG: LHG 5 |
| Material | anvilNITE |
FAQs
Q1: What is the MikroTik QuickMOUNT Pro (QMP)?
A: It’s a mounting adapter designed for small point‑to‑point or sector antennas, allowing secure installation on a wall or pole.
Q2: How much adjustment does the QuickMOUNT Pro offer?
A: The mount provides 140° of rotation both horizontally and vertically, helping you precisely align your antenna using the built-in graduated scale.
Q3: What size of pole can the QMP mount attach to?
A: It supports poles from 35 mm up to 65 mm in diameter via its included pole adapter.
Q4: What is the maximum antenna weight the QuickMOUNT Pro can support?
A: The mount supports antennas weighing up to 1.5 kg, making it suitable for most small MikroTik and third‑party pole‑mountable units.
Q5: What is the QuickMOUNT Pro made from, and how durable is it?
A: It’s made from a high-strength composite material called anvilNITE™, and is rated to handle a wind load of up to 100 N, making it durable for outdoor use.
