Teltonika PR1KC640 | 5G Combo MIMO Mobile/GNSS/WiFI Roof SMA Antenna
Teltonika PR1KC640 – 5G MIMO Roof Antenna with WiFi and GNSS
The Teltonika PR1KC640 is a high-performance 5G combo MIMO roof antenna designed to deliver reliable cellular, WiFi, and GNSS connectivity for mobile and fixed deployments. It supports wide 5G and LTE frequency ranges alongside dual-band WiFi and GNSS positioning, providing a complete multi-network solution for consistent connectivity and accurate location data.
Built for demanding environments, the PR1KC640 features a rugged IP67-rated enclosure and a secure screw-mount design for vehicle roofs and outdoor installations. Its multi-element configuration includes four cellular antennas, two WiFi antennas, and a GNSS receiver with an integrated LNA, enabling improved signal strength, higher throughput, and reliable positioning performance.
With up to 4.0 dBi gain across cellular and WiFi bands, and support for frequencies from 617–4200 MHz, 2.4 GHz and 5 GHz WiFi, and GNSS satellite bands, the antenna integrates seamlessly with Teltonika routers and compatible devices. It is well suited to transport fleets, industrial IoT, and remote deployments where stable, multi-technology connectivity is required.
Tech Specs
| Device Specifications | |
|---|---|
| 5G Mobile MIMO Antenna | |
| Frequency Range | 617 - 960 MHz 1710 - 2690 MHz 2900 - 4200 MHz |
| Polarization | Linear |
| Gain | 4.0 dBi |
| V.S.W.R | ≤3.0 |
| Impedance | 50 Ω |
| Connector Type and Count | 4x SMA Male |
| GNSS Antenna | |
| Compatibility | RUTX50 0***** RUTX50 000305 |
| Frequency Range | 1164 - 1300 MHz 1559 - 1610 MHz |
| Polarization | RHCP |
| Supply Voltage | 3 - 12 VDC |
| LNA Gain | 40 ± 2 dB |
| V.S.W.R | ≤2.0 |
| Impedance | 50 Ω |
| Current Consumption | ≤60 mA |
| Connector Type and Count | SMA Male |
| Wi-Fi MIMO Antenna | |
| Frequency Range | 2400 - 2483.5 MHz 4900 - 5925 MHz |
| Polarization | Linear |
| Gain | 4.0 dBi |
| V.S.W.R | ≤2.5 |
| Impedance | 50 Ω |
| Connector Type and Count | 2x RP-SMA Male |
| Mechanical / Environmental | |
| Mounting Method | Screw |
| Radome Ingress Protection Rating | IP67 (exclude cable outlet) |
| Radome Material | UV-Resistant ABS/PC |
| Weight | 960 ± 30 g |
| Housing Dimensions | 189 x 182 x 85 mm |
| Cable | 7 x LMR100, 3000 mm |
| Recommended Mounting Dimensions | Hole ø28 mm Panel thickness max 8 mm |
| Operating Temperature | -40 °C - +85 °C |
| RoHS Compliant | ✓ |
FAQs
Q1. What is the Teltonika 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna PR1KC640 used for?
A. The Teltonika 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna PR1KC640 is a multi-function outdoor antenna designed to enhance 5G/LTE, GNSS (GPS), and Wi-Fi signals in a single unit. It is ideal for vehicles, industrial deployments, and IoT installations where reliable multi-network connectivity and positioning are required.
Q2. What frequency bands and wireless technologies does the PR1KC640 support?
A. The antenna supports wide 5G/LTE bands (617–960 / 1710–2690 / 2900–4200 MHz), dual-band Wi-Fi (2.4 GHz and 5 GHz), and GNSS frequencies (1164–1300 / 1559–1610 MHz). This ensures compatibility with modern cellular, wireless LAN, and satellite positioning systems.
Q3. How does the PR1KC640 connect to routers or gateways?

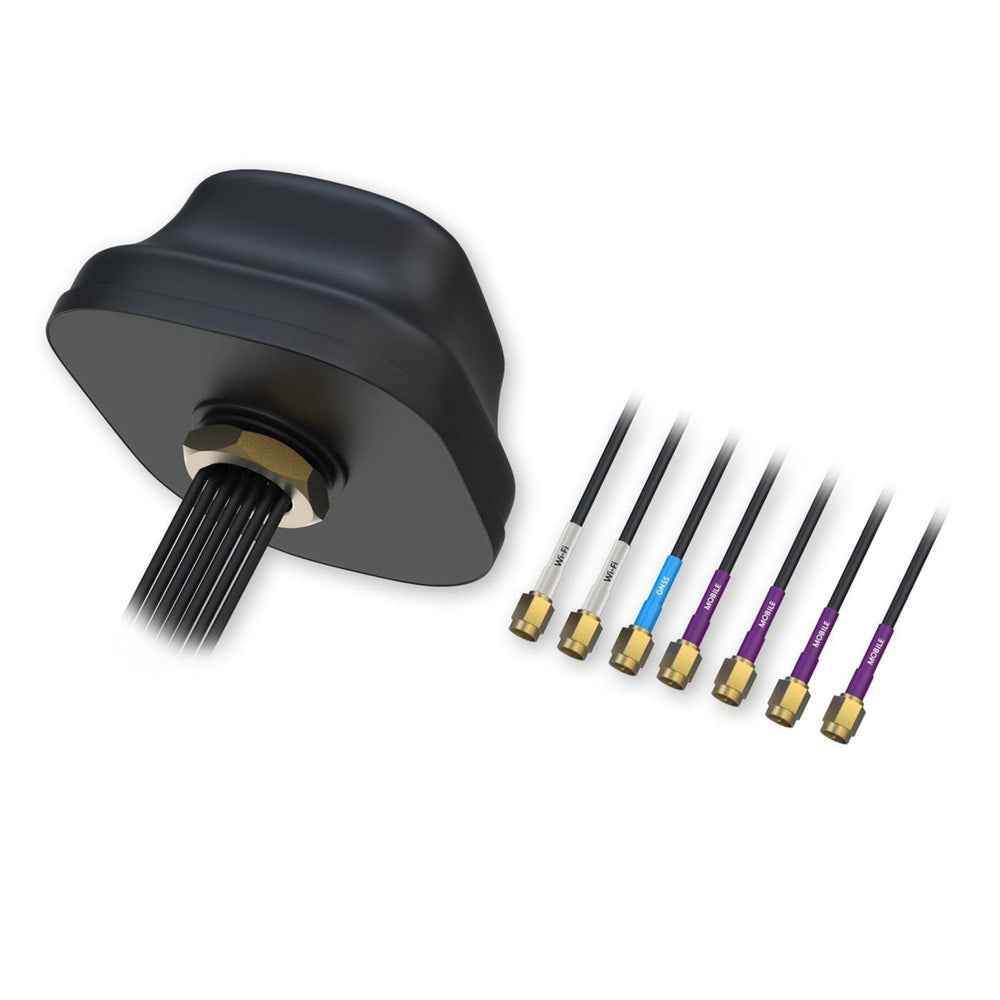

A. The antenna includes 7 integrated 3 m cables (LMR100) with connectors: 4× SMA (cellular MIMO), 2× RP-SMA (Wi-Fi MIMO), and 1× SMA (GNSS). These connect directly to compatible routers and gateways with multiple antenna ports.
Q4. Is the PR1KC640 suitable for outdoor and harsh environments?
A. Yes. The PR1KC640 features an IP67-rated UV-resistant enclosure (excluding cable outlet) and operates in temperatures from −40 °C to +85 °C, making it suitable for exposed outdoor, rooftop, or vehicle installations.
Q5. What performance benefits does the MIMO and GNSS design provide?
A. The antenna delivers 4×4 MIMO for cellular and 2×2 MIMO for Wi-Fi, improving throughput and signal reliability. The GNSS module includes a 40 dB LNA gain with RHCP polarisation, enabling accurate positioning and stable satellite reception.
