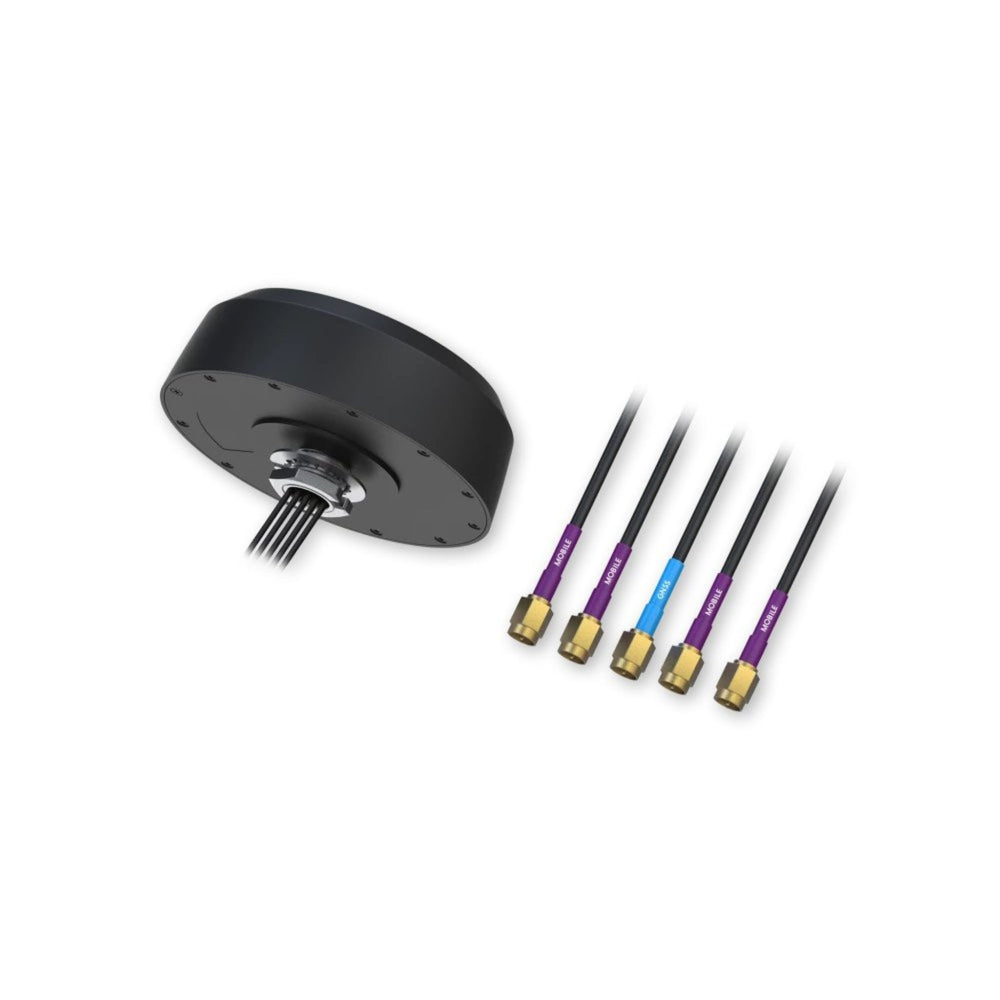

Teltonika PR1KCI49 | 5G Combo MIMO Mobile/GNSS Roof SMA Antenna
Teltonika PR1KCI49 – 5G MIMO Roof Antenna with GNSS
The Teltonika PR1KCI49 is a high-performance 5G combo MIMO roof antenna designed to deliver reliable cellular connectivity and precise GNSS positioning for mobile and fixed deployments. It features four cellular MIMO elements and a dedicated GNSS antenna, supporting wide 5G and LTE frequency ranges for consistent performance in demanding environments.
Built for vehicle and outdoor use, the antenna is housed in a rugged, weather-resistant enclosure rated to IP67 and IP69K after installation. It operates across a wide temperature range from –40 °C to +85 °C, ensuring dependable performance in harsh conditions. Omni-directional cellular coverage with up to 4.9 dBi gain, combined with a high-performance GNSS module, supports stable connectivity and accurate tracking.
Equipped with four SMA connectors for cellular MIMO and a separate SMA connector for GNSS, along with integrated 3-metre cables, the PR1KCI49 is designed for straightforward installation. It integrates seamlessly with Teltonika routers and is well suited to fleet management, telemetry, and remote monitoring applications.
Tech Specs
| Device Specifications | |
|---|---|
| 5G Mobile MIMO Antenna | |
| Frequency Range | 600 ~ 960 MHz 1400 ~ 6000 MHz |
| Polarization | Linear |
| Radiation Pattern Type | Omni-directional |
| Gain | Max 4.9 dBi |
| V.S.W.R | ≤ 3.2 |
| Impedance | 50 Ω |
| Connector Type and Count | 4x SMA Male |
| GNSS Antenna | |
| Frequency Range | 1164 ~ 1189 MHz 1559 ~ 1606 MHz |
| Polarization | RHCP |
| Radiation Pattern Type | Directional |
| Gain | 17 ± 2 dB |
| V.S.W.R | < 2 |
| Impedance | 50 Ω |
| Supply Voltage | 3 - 5 VDC |
| Current Consumption | 16 ± 3 mA |
| Connector Type and Count | 1x SMA Male |
| Mechanical / Environmental | |
| Cable | 4x ALS302, 1x RG174, 3000 mm |
| Operating Temperature | -40 °C to +85 °C |
| Mounting Method | Screw (M27 nut) |
| IP Rating | IP67 (after installation) / IP69K (after installation) |
| Weight | 780 g |
| RoHS Compliant | ✓ |
FAQs
Q1. What is the Teltonika 5G Combo MIMO Mobile/GNSS Roof SMA Antenna PR1KCI49 used for?
A. The Teltonika 5G Combo MIMO Mobile/GNSS Roof SMA Antenna PR1KCI49 is a high-performance outdoor antenna designed to enhance both 5G/LTE cellular connectivity and GNSS (GPS) positioning. It is ideal for industrial routers, vehicles, and IoT deployments requiring reliable broadband and accurate location tracking.
Q2. What frequency bands and technologies does the PR1KCI49 support?
A. The antenna supports wide 5G/LTE frequency ranges (600–960 MHz and 1400–6000 MHz) along with GNSS bands (1164–1189 MHz and 1559–1606 MHz). This ensures compatibility with modern cellular networks and satellite navigation systems.
Q3. How does the PR1KCI49 connect to networking devices?
A. The antenna includes 4× SMA Male connectors for cellular MIMO and 1× SMA Male connector for GNSS, with five integrated 3 m cables (4× ALS302 and 1× RG174). This allows direct connection to compatible routers and gateways with multiple antenna inputs.
Q4. Is the PR1KCI49 suitable for outdoor and harsh environments?
A. Yes. The antenna features an IP67/IP69K-rated enclosure (after installation) and operates in temperatures from −40 °C to +85 °C, making it suitable for demanding outdoor, vehicle, and industrial environments.
Q5. What performance benefits does the MIMO and GNSS design provide?
A. The 4×4 MIMO cellular design improves signal strength, throughput, and reliability, while the GNSS antenna includes ~17 dB gain with RHCP polarisation for accurate positioning and stable satellite reception in mobile or remote applications.
