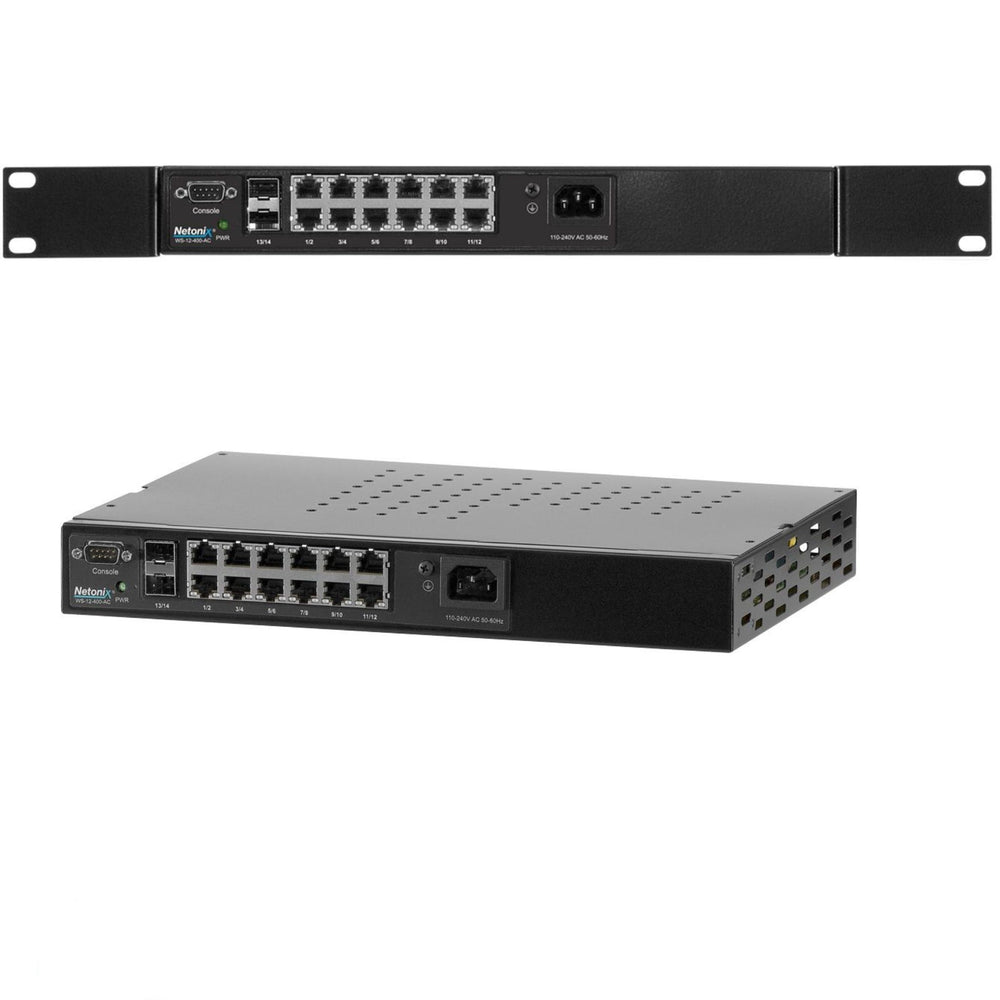

Netonix WS-12-400-AC 12 Port Gigabit WISP Switch
Please contact us for stocking information.
The Netonix WS-12-400-AC is a durable switch designed for the WISP industry, featuring a simple user interface and powerful software capabilities. It has 12 Gbps PoE ports, including four that can deliver 1.5A of 24VH or 48VH for powering Ubiquiti, Mimosa, and SAF Tehnika products. Perfect for compact spaces with high power demands.
Tech Specs
Click here for the Netonix WS-12-400-AC datasheet.
| Device Specifications | |
|---|---|
| Manufactured / Assembled | North America |
| Standard 19” rack mount / Desktop / Wall mount | YES |
| Dimensions | 330 mm x 228 mm x 44 mm |
| Weight | 3 kg |
| Power Input | 210-230 & 110-120 VAC |
| Chassis Earth Ground Lug | YES |
| Max. Power Consumption | N/A |
| Intelligent Forced Air Cooling With Fan RPM Monitoring | YES |
| Switch Core and PHYs | Vitesse |
| Processor | MIPS 24K 416 MHz |
| System Memory | 128 MB |
| Flash Storage | 16 MB |
| Total Non-Blocking Line Rate | 14 Gbps |
| Certifications | CE, FCC, IC |
| Operating Temperature | -25 to 55°C (-13 to 131° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
| Console Port | RS-232 |
| Ethernet Ports | 12 x 10/100/1000 Ethernet Ports 2 x SFP Ports |
| Passive POE Configured Per Port via UI / CLI | 24V 1A pins 4,5(+) 7,8(-) 48V 1A pins 4,5(+) 7,8(-) 24VH 2A pins 1,2,4,5(+) 3,6,7,8(-) 48VH 2A pins 1,2,4,5(+) 3,6,7,8(-) |
| POE Out Voltage Range | 50 VDC / 24 VDC |
| Passive POE Current Sensors Per Port | YES |
| ESD Rating | 24 kV Air / 24 kV Contact |
FAQs
Q1: What is the Netonix WS‑12‑400‑AC and what is it used for?
A: The Netonix WS‑12‑400‑AC is a managed 12‑port Gigabit PoE switch designed to deliver high‑speed network connectivity and up to 400 W of PoE power, enabling reliable power and data distribution to connected PoE devices in enterprise, wireless ISP (WISP), and IT infrastructures.
Q2: How many PoE ports does the WS‑12‑400‑AC have and what power budget does it support?
A: This switch features twelve Gigabit Ethernet ports with PoE support and a 400 W total power budget, allowing it to power and connect multiple devices such as wireless access points, IP cameras, VoIP phones, and other PoE‑enabled equipment without needing external injectors.
Q3: What power source does the WS‑12‑400‑AC use?
A: The WS‑12‑400‑AC operates from AC mains power, making it suitable for installation in network closets, server rooms, and rack‑mounted environments where standard AC power is available.
Q4: What managed features are included in the Netonix WS‑12‑400‑AC?
A: The switch offers managed switching capabilities including VLAN support, Quality of Service (QoS) prioritisation, SNMP monitoring, and advanced configuration options, giving administrators fine control over network traffic and performance in complex environments.
Q5: What physical and operational features make the WS‑12‑400‑AC suitable for professional network use?
A: It includes a rugged housing, status indicators for link, activity, and PoE power, and support for standard rack‑mount installation. These features ensure dependable operation in demanding enterprise, WISP, and high‑density PoE network environments.
