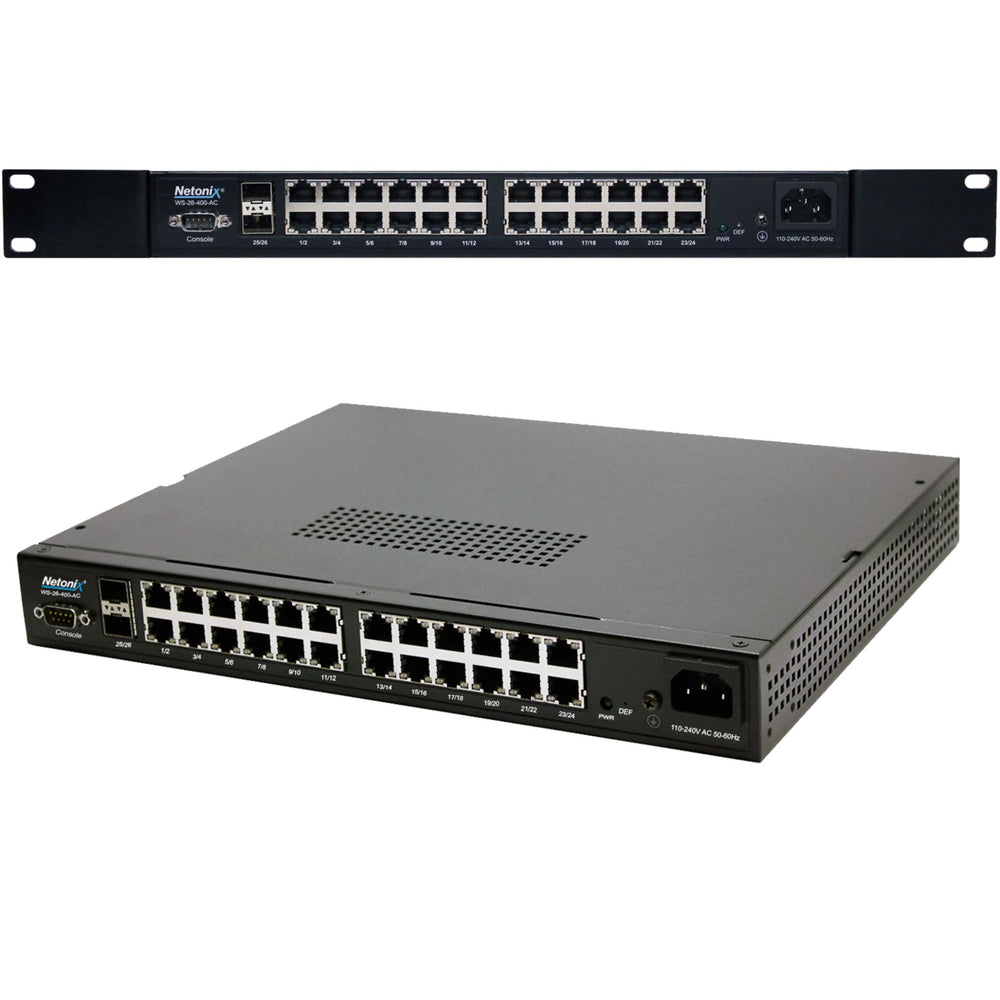

Netonix WS-26-400-AC 26 Port Gigabit WISP Switch
The Netonix WS-26-400-AC is a durable, high-performance WISP switch with a user-friendly interface and the ability to power various passive PoE devices.
Tech Specs
Click here for the Netonix WS-26-400-AC datasheet.
| Device Specifications | |
|---|---|
| Manufactured / Assembled | North America |
| Standard 19” rack mount / Desktop / Wall mount | YES |
| Dimensions (W x D x H) | 343 mm x 273 mm x 44 mm |
| Weight | <4 kg |
| Power Input | 210-230 & 110-120 VAC |
| Chassis Earth Ground Lug | YES |
| Max. Power Consumption | 400 Watts |
| Intelligent Forced Air Cooling With Fan RPM Monitoring | YES |
| Switch Core and PHYs | Vitesse |
| Processor | MIPS 24K 416 MHz |
| System Memory | 128 MB |
| Flash Storage | 16 MB |
| Total Non-Blocking Line Rate | 26 Gbps |
| Certifications | CE, FCC, IC |
| Operating Temperature | -25 to 55°C (-13 to 131° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
| Console Port | RS-232 |
| Ethernet Ports | 24 x 10/100/1000 Ethernet Ports 2 x SFP Ports |
| Passive POE Configured Per Port via UI / CLI | 24V 0.75A pins 4,5(+) 7,8(-) 48V 0.75A pins 4,5(+) 7,8(-) 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-) 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-) |
| POE Out Voltage Range | 50 VDC / 24 VDC |
| Passive POE Current Sensors Per Port | YES |
| ESD Rating | 24 kV Air / 24 kV Contact |
FAQs
Q1: What is the Netonix WS‑26‑400‑AC and what is it used for?
A: The Netonix WS‑26‑400‑AC is a managed 26‑port Gigabit PoE switch designed to provide both high‑speed data connectivity and up to 400 W of PoE power for multiple network devices. It’s suited to enterprise, wireless ISP (WISP), surveillance, and high‑density PoE network environments.
Q2: How many PoE ports does the WS‑26‑400‑AC have and what is its PoE power budget?
A: This switch features twenty‑six Gigabit Ethernet ports with PoE capability and a 400 W total PoE budget, enabling power and data to be delivered to a wide range of PoE‑enabled devices such as access points, cameras, and VoIP phones.
Q3: What power source does the WS‑26‑400‑AC require?
A: The WS‑26‑400‑AC is powered by AC mains, making it suitable for fixed installations in racks, network closets, and infrastructure rooms where standard AC power is available.
Q4: What managed networking features are supported by the WS‑26‑400‑AC?
A: It includes advanced managed switch features such as VLAN support, Quality of Service (QoS) prioritisation, SNMP monitoring, and other configuration options that allow administrators to optimise traffic flow and network performance.
Q5: What physical and operational features make the WS‑26‑400‑AC suitable for professional networks?
A: The switch has a rugged chassis, status LEDs for link, activity, and PoE power, and support for rack‑mount installation. These aspects make it dependable for enterprise, WISP, and other demanding PoE network environments where power and data distribution are critical.
