MikroTik Gigabit PoE Injector with Surge Protection

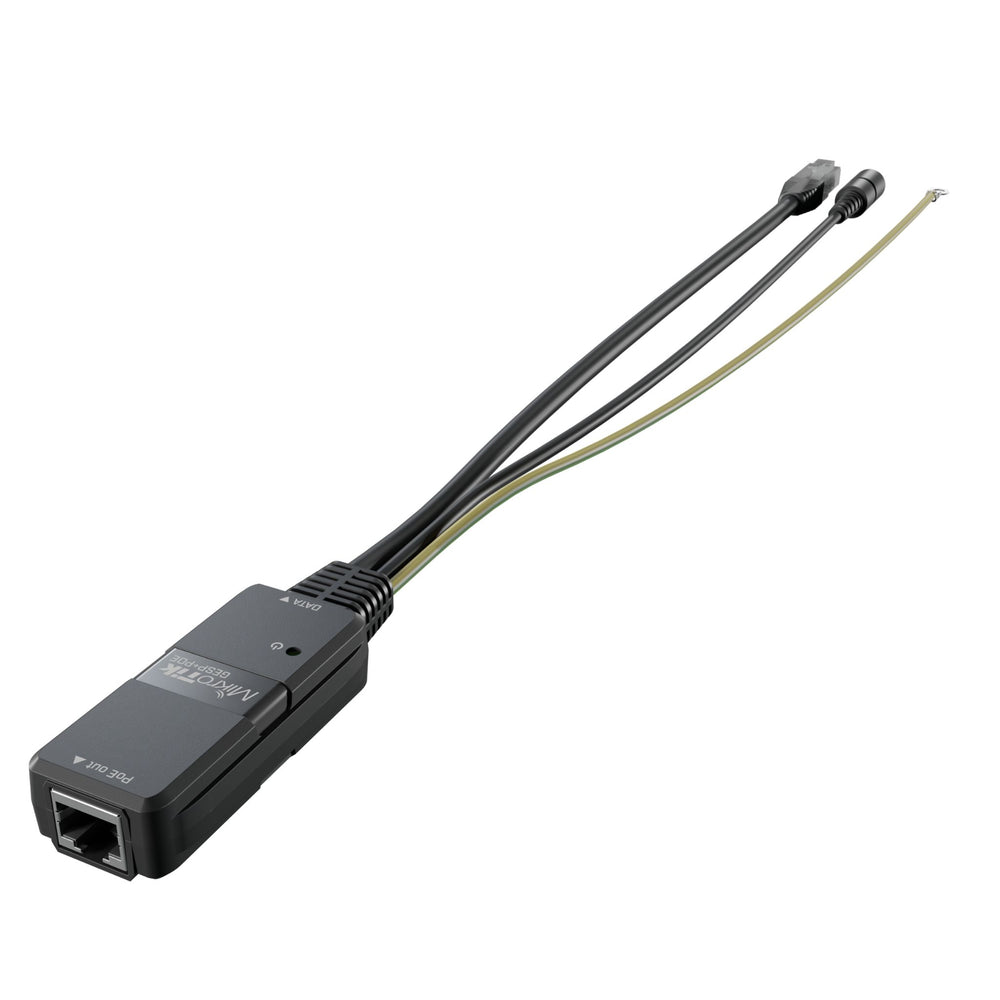

The GESP+POE-IN by MikroTik is a passive Gigabit PoE injector and surge protector, providing added safety for your setup.
Tech Specs
| Device Specifications | |
|---|---|
| Product code | GESP GESP+POE-IN |
| Interface connections | RJ45 Male/Female Connector |
| ESD/EMP protection | Absorbing transient current with response to surge voltage of 100 V/s 1 kV/μs ESD, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61643-21, ±8 kV contact, ±15 kV air |
| DC spark-over voltage | 75 V @ 100 V/s |
| Maximum impulse spark-over voltage | 700 V @ 1 kV/μs |
| Discharge current | 3 kA (8/20μs) |
| Minimum insulation resistance | 1 GΩ @ 50V |
| Maximum capacitance | 4 pF @ 1 MHz |
| Data line protection | RJ45 10/100/1000 Ethernet |
| PoE support | Passive PoE |
| IP rating | IP67 |
| Operating temperature | -40 to 70°C |
FAQs
Q1: What is the MikroTik GESP+POE‑IN?
A: It’s a passive Gigabit PoE injector that also provides surge protection, designed to power remote devices while protecting your network from voltage spikes.
Q2: What kind of surge protection does the GESP+POE‑IN offer?
A: The unit can absorb transient currents from ESD/EMP events, with strong surge protection capabilities and repeated impact resistance, helping safeguard connected devices.
Q3: What Ethernet interface does it use?
A: It provides Gigabit connectivity (10/100/1000 Mbps) via RJ45 input/output connectors.
Q4: What is the operating temperature range of the GESP+POE‑IN?
A: It works reliably in extreme conditions, from –40 °C to +70 °C, making it suitable for harsh indoor or outdoor-proximal environments.
Q5: How should I ground the device for maximum protection?
A: You should attach the included grounding wire to a properly grounded structure—such as a mast or rack—to ensure full surge protection effectiveness.
