RF elements NanoBracket for NBE-M5-16
by RF elements
Save 64%
Original price
£9.99
Current price
Excl. VAT:
£2.96
Incl. VAT:
£3.55
SKU NB-M5-16
18 in stock

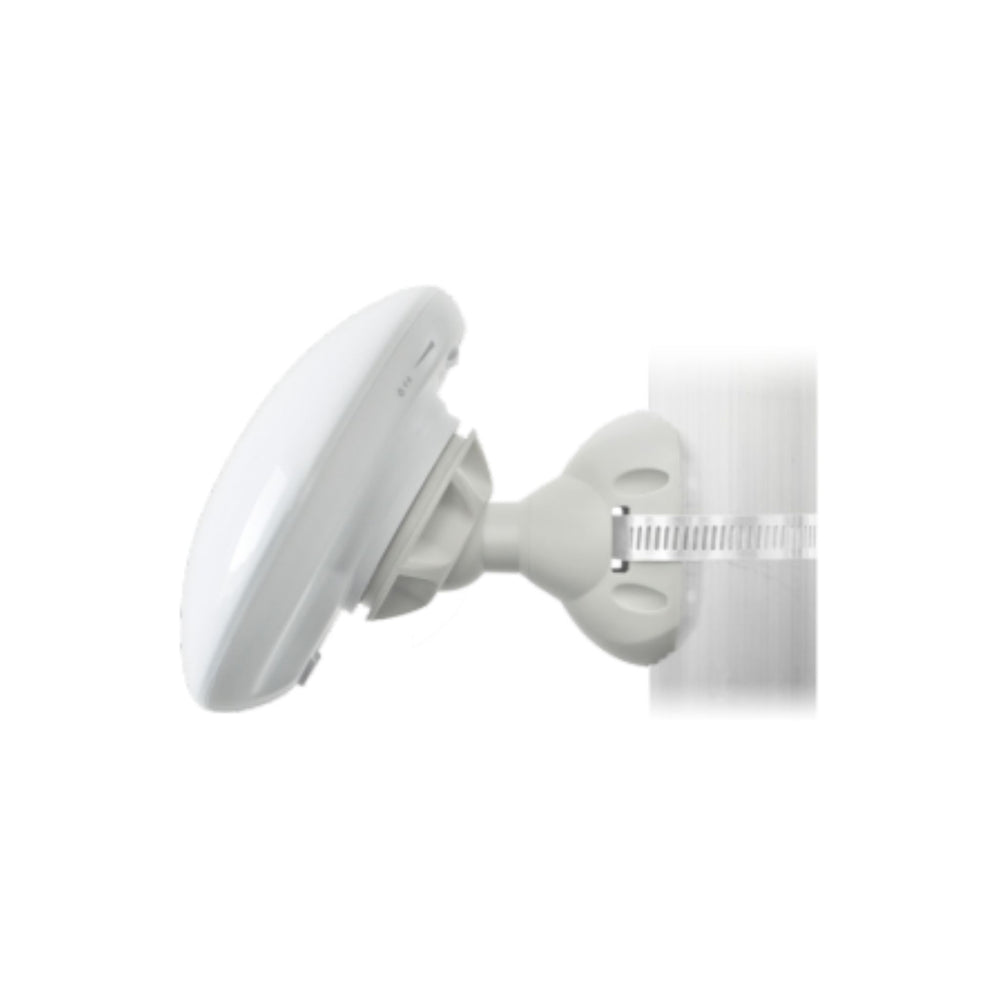

The mounting system designed for NanoBeam® M5-16 from UBNT is NanoBracket® for NBE-M5-16. The ultra-compact solid bracket is part of the 3rd Generation of the popular NanoBracket® Series. Made of resistant ABS plastic, it features a patent pending ball hinge that enables smooth and precise adjustment in azimuth, elevation, and rotation for up to 70°.
Tech Specs
Click here for the RF elements NanoBracket for NBE-M5-16 datasheet.
| Device Specifications | |
|---|---|
| Materials | Bracket, Holder – UV stabilised and weather resistant ABS plastic Hardware – Stainless Steel |
| Flame Rating | UL 94 HB |
| Pole Mounting Diameter | 50–70 mm |
| Wall Mounting | Yes |
| Operating Temperature | -30 to +60 °C |
| Wind Survival | 120 km/h |
| Weight | 0.13 kg / 0.28 lbs – single unit incl. package 7 kg / 15.4 lbs – carton (50 units) |
| Single Unit Retail Box | 10 × 8 × 7 cm |
| Carton Box (50 Units) | 52 × 37 × 20 cm |
