RF elements Symmetrical Horn Carrier Class SH-CC 5-80
The SH-CC Series boasts exceptional RF performance in a compact design. Its Scalar horn antennas feature symmetrical beams with identical patterns in the Vertical and Horizontal planes, resulting in minimal side lobes that greatly reduce interference. These antennas are perfect for providing coverage in areas with close proximity to clients, where issues with null zones may arise.

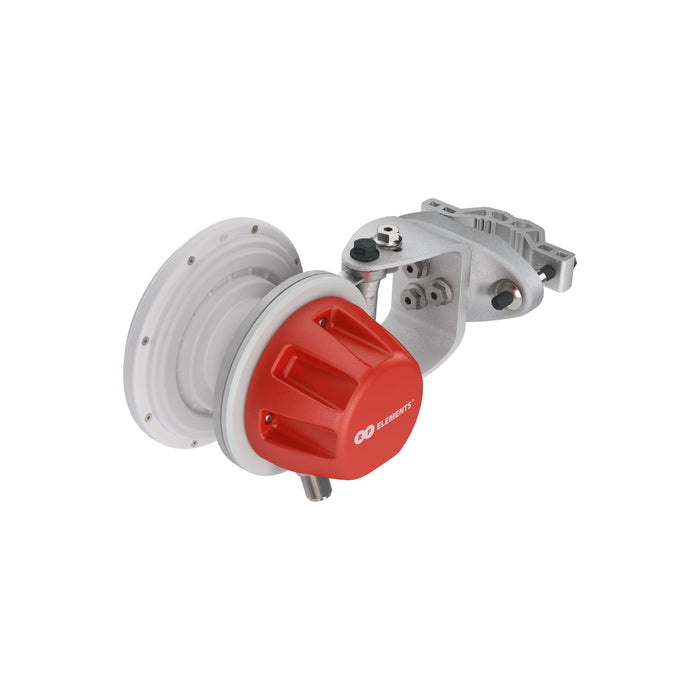

Additionally, the unique RF radiation patterns and compact size make it possible for high density AP clusters and radio co-location. The SH-CC 5-80 antenna also comes equipped with N-female connectors for added convenience.
Tech Specs
Click here for the RF elements Symmetrical Horn Carrier Class SH-CC 5-80 datasheet.
| Device Specifications | |
|---|---|

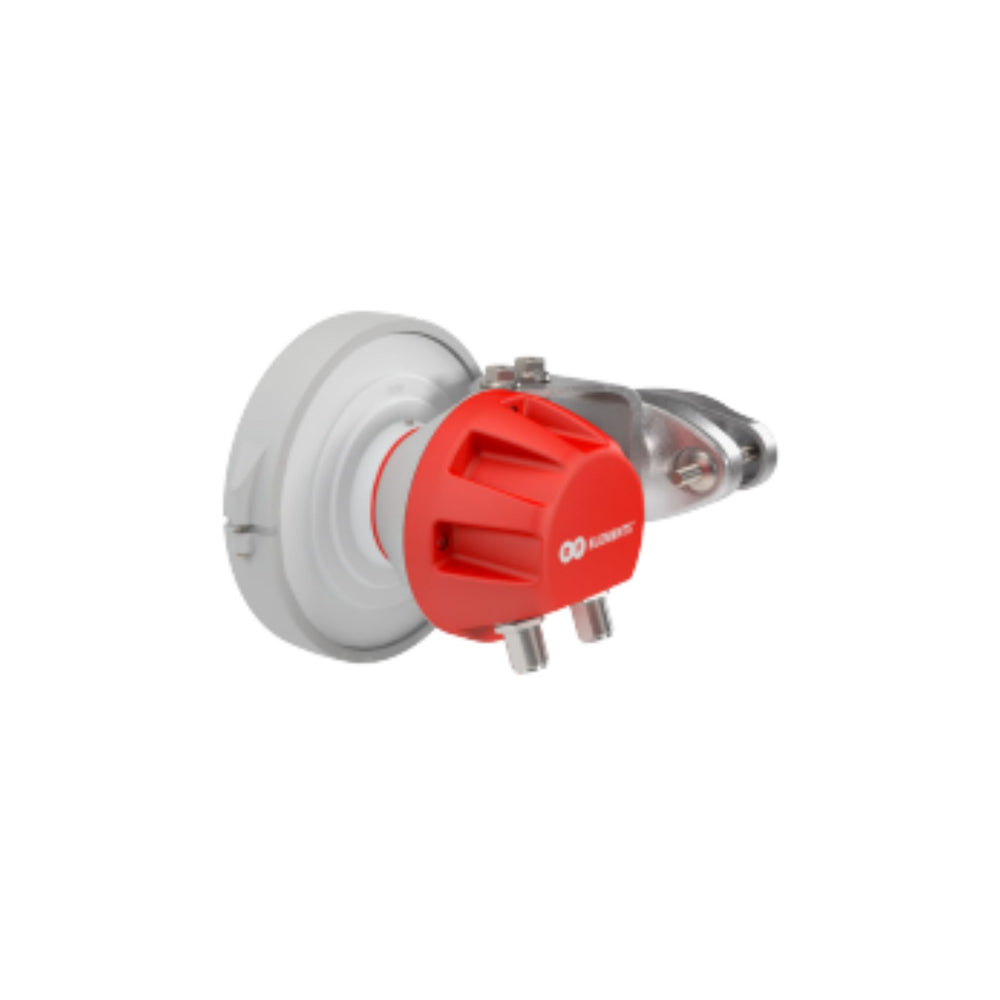

| Radio Connection | 2× N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant Polycarbonate, Polypropylene, Aluminium, Zinc, Stainless Steel |
| Environmental | IP55 |
| Flame Rating | UL 94 HB |

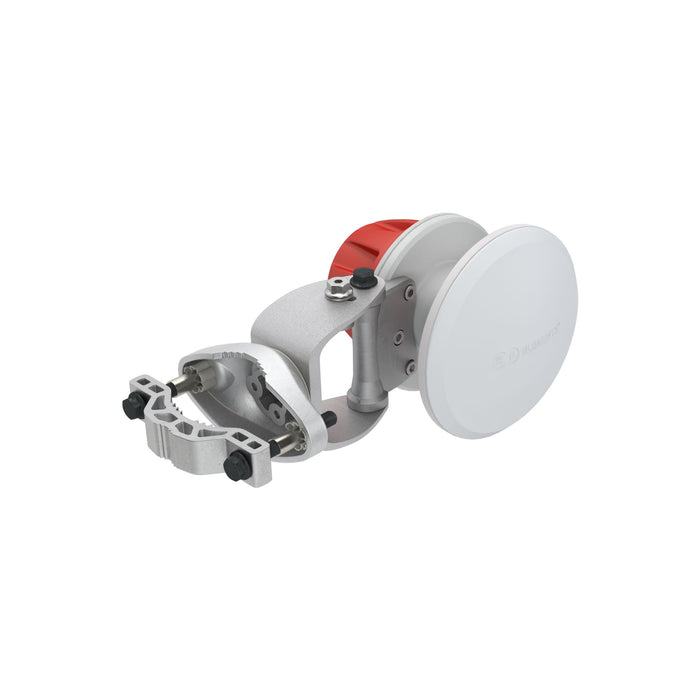

| Pole Mounting Diameter | 30–80 mm (1.1–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 24/11 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 197/93 cm² – Front/Side (30.5/14.4 in²) |
| Mechanical Tilt | ± 25° |
| Weight | 1.8 kg / 3.9 lbs – single unit 2.6 kg / 5.7 lbs – single unit incl. package 27.2 kg / 59.2 lbs – carton (10 units) |
| Single Unit Retail Box | 305 × 239 × 183 mm (12 × 9.4 × 7.2 inch) |
| 10 Units Carton Box | 940 × 510 × 335 mm (37 × 20 × 13.2 inch) |
| Frequency Range | 5180 – 6400 MHz |
| Gain | 10.4 dBi |
| Azimuth/Elevation BW -3 dB | H 60° / V 60° |
| Azimuth/Elevation BW -6 dB | H 80° / V 80° |
| Front-to-Back Ratio | 29 dB |
| VSWR Max 5180–5850 MHz | 1.6 |
| VSWR Max 5850–6400 MHz | 1.9 |
| Beam Efficiency | 94% |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
FAQs
Q1: What is the RF Elements Symmetrical Horn Carrier Class SH‑CC 5‑80 and what is it used for?
A: The RF Elements Symmetrical Horn Carrier Class SH‑CC 5‑80 is a high‑performance horn‑style antenna designed for outdoor wireless networks. It’s primarily used in point‑to‑multipoint (PtMP) and sector coverage installations where reliable and even signal dispersion is required.
Q2: What does “5‑80” mean in the SH‑CC 5‑80 antenna?
A: The “5‑80” designation refers to the antenna’s beamwidth range, offering a wide 5° to 80° horizontal coverage pattern that balances directivity and spread. This makes it suitable for broad area coverage with consistent signal strength.
Q3: How does the symmetrical horn design benefit wireless connectivity?
A: The symmetrical horn design provides uniform signal dispersion with minimal sidelobes, improving coverage consistency and reducing interference between sectors. This leads to clearer connections and more efficient frequency reuse in dense deployments.
Q4: What applications are ideal for the SH‑CC 5‑80?
A: The antenna is ideal for wireless ISP (WISP) base stations, campus networks, fixed‑wireless access, and other outdoor wireless systems where stable, wide‑area coverage and interference resistance are priorities.
Q5: What physical and environmental features does the RF Elements SH‑CC 5‑80 antenna offer?
A: The SH‑CC 5‑80 is built with durable outdoor housing suitable for rugged environments. Its design supports easy mast or pole mounting and is engineered to withstand typical outdoor temperature and weather conditions, ensuring long‑term performance.
