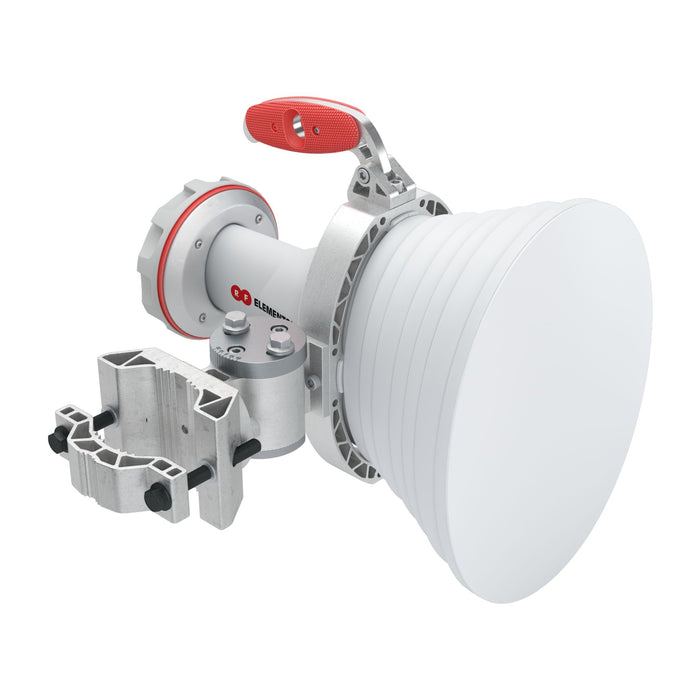

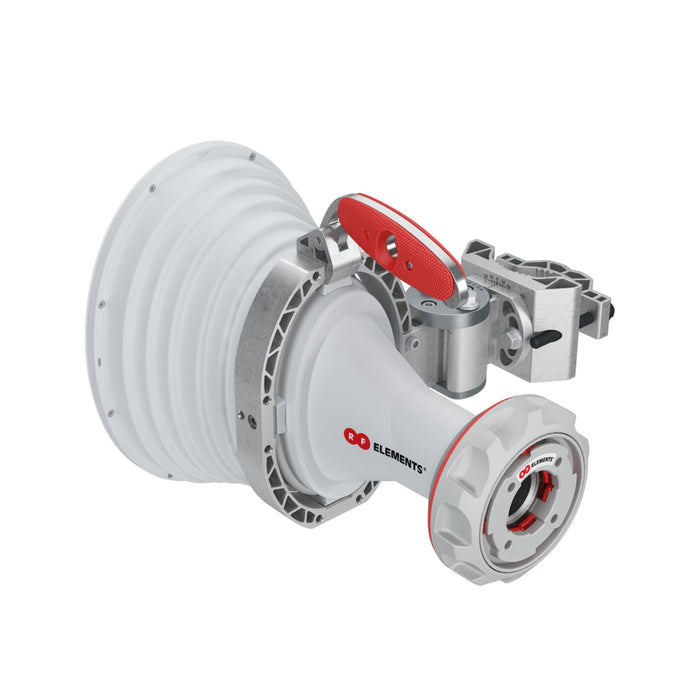

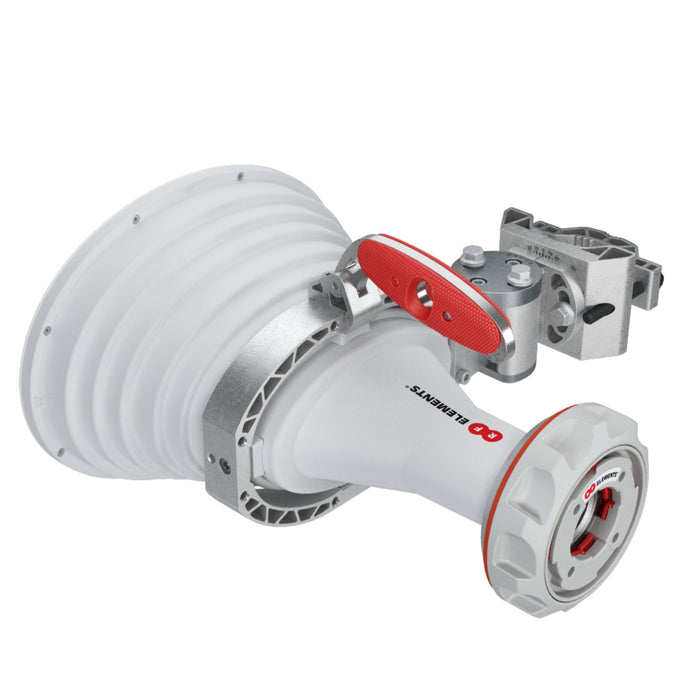

RF elements 20/30 Degree Asymmetrical Horn Antenna with TwistPort Connector and BeamSwitch
The RF elements Asymmetrical Horn TP Antennas feature a game-changing TwistPort connector and unique beam shape for enhanced coverage and noise rejection. They are also compatible with Symmetrical Horn Antennas and feature easy mounting with AH2030-TP BeamSwitch. The AH2030-TP can provide a 20 degree azimuth and 30 degree elevation beam width.
Tech Specs
Click here for the RF elements AH2030-TP datasheet.
| Device Specifications | |
|---|---|
| Technical Data | |
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic Polycarbonate HDPE Aluminium Stainless Steel |
| Environmental Rating | IP55 |
| Pole Mounting Diameter | 40–80 mm (1.5–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 71/49 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 580/404 cm² – Front/Side (89.9/62.6 in²) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 4.2 kg (9.2 lbs) – single unit* 6.3 kg (13.8 lbs) – single unit incl. package* |
| Packaging Dimensions | Single Unit Retail Box: 483 × 334 × 235 mm (19.0 x 13.1 x 9.2 inch)* |
| Performance | |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 20.5 dBi |
| Azimuth Beam Width -3 dB | H 21° / V 21° |
| Elevation Beam Width -3 dB | H 15° / V 15° |
| Azimuth Beam Width -6 dB | H 30° / V 30° |
| Elevation Beam Width -6 dB | H 20° / V 20° |
| Beam Efficiency** | 95% |
| Front-to-Back Ratio | 35 dB |
FAQs
Q1: What is the RF Elements 30° Asymmetrical Beam Antenna AH2030‑TP and what is it used for?
A: The RF Elements 30° Asymmetrical Beam Antenna AH2030‑TP is a high‑performance outdoor wireless antenna designed for point‑to‑multipoint (PtMP) deployments. It provides a 30° asymmetrical beam pattern for targeted sector coverage with efficient signal distribution.
Q2: What does “asymmetrical beam” mean for this antenna?
A: An asymmetrical beam shape means the antenna’s signal pattern is intentionally skewed to focus strong coverage in desired directions while reducing signal spill where coverage is not needed. This helps minimise interference and improve network efficiency.
Q3: What does the “30°” specification refer to?
A: The 30° refers to the horizontal beamwidth of the antenna, which indicates how wide the wireless signal spreads across the coverage area. A 30° beam delivers focused and controlled coverage that is ideal for medium‑range wireless links.
Q4: Where is the AH2030‑TP antenna typically deployed?
A: This antenna is ideal for wireless ISP base stations, campus networks, fixed‑wireless access points, and rural broadband installations, where precise, sector‑oriented wireless coverage and reliable signal stability are required.
Q5: What physical and environmental features does the AH2030‑TP offer?
A: The AH2030‑TP is built with a rugged outdoor enclosure designed to withstand harsh weather and temperature extremes. It supports mast or pole mounting for secure installation and dependable long‑term outdoor performance.
