RF elements HG3-CC-S70 70° Symmetrical Horn Carrier Class Gen 2
The RF elements HG3-CC-S70 70° Symmetrical Horn Carrier Class Gen 2 is a scalar horn with exceptional noise rejection and improved network scalability and throughput. Its unique beam performance and great co-location characteristics allow for higher density sectors, thanks to its circular cross-section and N-female connectors. With a 70° beam width and 11.5dBi gain, the HG3-CC-S70 is perfect for wide range of radios.
Tech Specs
Click here for the RF Elements HG3-CC-S70 datasheet.
| Device Specifications | |
|---|---|
| Technical Data | |

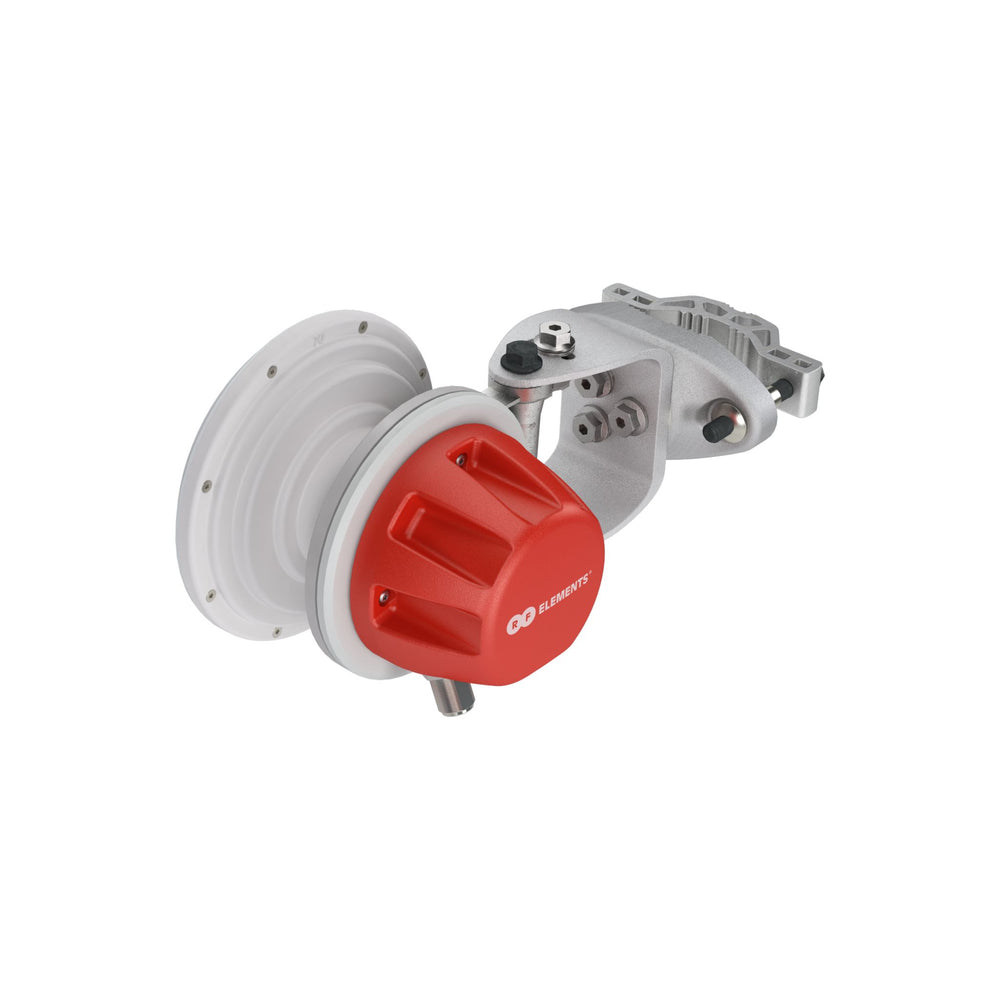

| Radio Connection | 2x N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant polycarbonate Polypropylene Aluminium Zinc Stainless Steel |
| Environmental Rating | IP55 |
| Flame Rating | UL 94 HB |

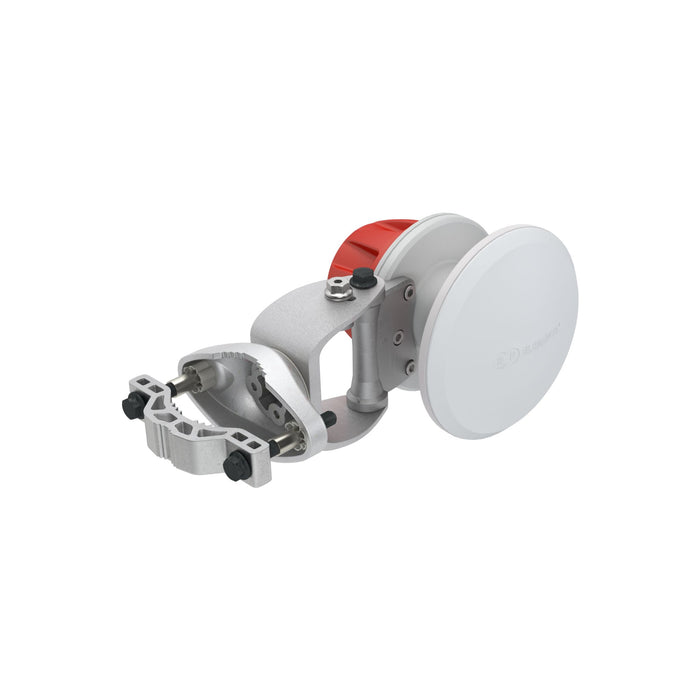

| Pole Mounting Diameter | 30–80 mm (1.1–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 23/10 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 190/84 cm² – Front/Side (29.5/13 in²) |
| Mechanical Tilt | ± 25° |
| Weight | 1.8 kg / 3.9 lbs – single unit 2.6 kg / 5.7 lbs – single unit incl. package 27.4 kg / 60.4 lbs – carton (10 units) |
| Packaging Dimensions | Single Unit Retail Box: 305 × 239 × 183 mm (12 x 9.4 x 7.2 inch) 10 Units Carton Box: 940 × 510 × 335 mm (37 x 20 x 13.2 inch) |
| Performance | |
| Frequency Range | 5180 - 6400 MHz |
| Gain | 11.5 dBi |
| Azimuth/Elevation BW -3 dB | H 50° / V 50° |
| Azimuth/Elevation BW -6 dB | H 70° / V 70° |
| Front-to-Back Ratio | 30 dB |
| VSWR Max 5180-5850 MHz | 1.6 |
| VSWR Max 5850-6400 MHz | 1.9 |
| Beam Efficiency** | 94% |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
FAQs
Q1: What is the RF Elements Symmetrical Horn Carrier Class Gen 2 HG3‑CC‑S70 and what is it used for?
A: The RF Elements Symmetrical Horn Carrier Class Gen 2 HG3‑CC‑S70 is a high‑performance horn‑style wireless antenna designed for outdoor networks. It’s ideal for point‑to‑multipoint (PtMP) deployments where broad sector coverage and stable signal distribution are required.
Q2: What does the “70°” beamwidth mean for this antenna?
A: The 70° horizontal beamwidth indicates the spread of the antenna’s wireless signal. A 70° beam provides wide sector coverage, allowing the antenna to serve a larger area from a central base station while still offering focused performance.
Q3: How does the symmetrical horn design enhance wireless performance?
A: The symmetrical horn design ensures uniform signal dispersion with minimal sidelobe interference. This translates to more consistent coverage and improved link reliability across the entire beam, even in environments with many connected clients.
Q4: What applications is the HG3‑CC‑S70 antenna suitable for?
A: This antenna is well‑suited for wireless ISP base stations, campus networks, fixed‑wireless access points, and community broadband deployments where dependable sector coverage and performance are needed over a wide area.
Q5: What physical and environmental features does the HG3‑CC‑S70 offer?
A: The HG3‑CC‑S70 is built with a rugged outdoor housing designed to withstand harsh weather and temperature extremes. It supports mast or pole mounting, making it suitable for long‑term outdoor wireless installations.
