RF elements HG3-TP-S30 18dBi 30° Symmetrical Beam Antenna
The improved RF elements Gen2 Symmetrical Horn allows for versatile mounting and lossless connection with third party radios through twistport technology, providing optimal performance and scalability.
Tech Specs
Click here for the RF Elements HG3-TP-S30 datasheet.
| Device Specifications | |
|---|---|

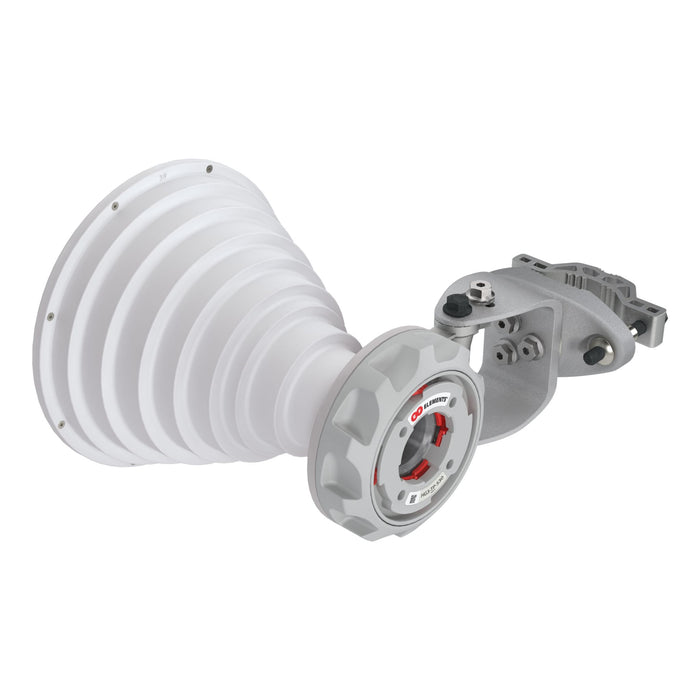

| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel |
| Environmental | IP55 |
| Flame Rating | UL 94 HB |

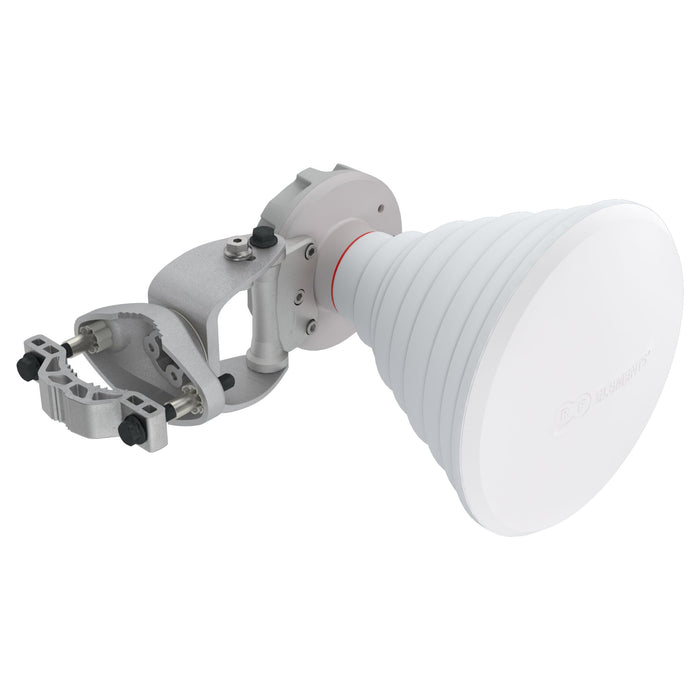

| Pole Mounting Diameter | 30–80 mm (1.1–3.1 inch), recommended as close to 80 mm as possible |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 46/23 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 379/188 cm² – Front/Side (58.8/29.1 in²) |
| Mechanical Tilt | ± 25° |
| Weight | 1.9 kg / 4.1 lbs – single unit 3.3 kg / 7.3 lbs – single unit incl. package 17.4 kg / 38 lbs – carton (5 units) |
| Single Unit Retail Box | 412 × 277 × 234 mm (16.2 × 10.9 × 9.2 inch) |
| 5 Units Carton Box | 1190 × 300 × 440 mm (46.8 × 11.8 × 17.3 inch) |
| Frequency Range | 5180 – 6775 MHz * |
| Gain | 18.4 dBi |
| Azimuth Beam Width -3 dB | H 21° / V 21° |
| Elevation Beam Width -3 dB | H 21° / V 21° |
| Azimuth Beam Width -6 dB | H 30° / V 30° |
| Elevation Beam Width -6 dB | H 30° / V 30° |
| Beam Efficiency | 94% |
| Front-to-Back Ratio | 37 dB |
FAQs
Q1: What is the RF Elements Symmetrical Horn TP Antenna HG3‑TP‑S30 and what is it used for?
A: The RF Elements Symmetrical Horn TP Antenna HG3‑TP‑S30 is a high‑performance outdoor wireless antenna designed for point‑to‑multipoint (PtMP) networks. It provides focused signal coverage with a 30° beamwidth, ideal for reliable sector links and extended reach.
Q2: What does the “30°” beamwidth mean for this antenna?
A: The 30° horizontal beamwidth describes the width of the signal spread. A 30° beam strikes a balance between focused reach and broad area coverage, making it suitable for medium‑range PtMP links where targeted coverage improves performance.
Q3: How does the symmetrical horn design benefit wireless connectivity?
A: The symmetrical horn design ensures uniform signal dispersion with minimal sidelobe interference. This translates to more consistent coverage and improved throughput, especially in environments with many connected clients.
Q4: Where is the HG3‑TP‑S30 antenna typically deployed?
A: This antenna is commonly used for wireless ISP base stations, campus networks, rural broadband links, and fixed‑wireless access systems where focused, reliable signal coverage over a defined sector is required.
Q5: What physical and environmental features does the HG3‑TP‑S30 offer?
A: The HG3‑TP‑S30 is built with a rugged outdoor housing designed to withstand weather and temperature extremes. It supports pole or mast mounting for secure installation and long‑term outdoor operation.
