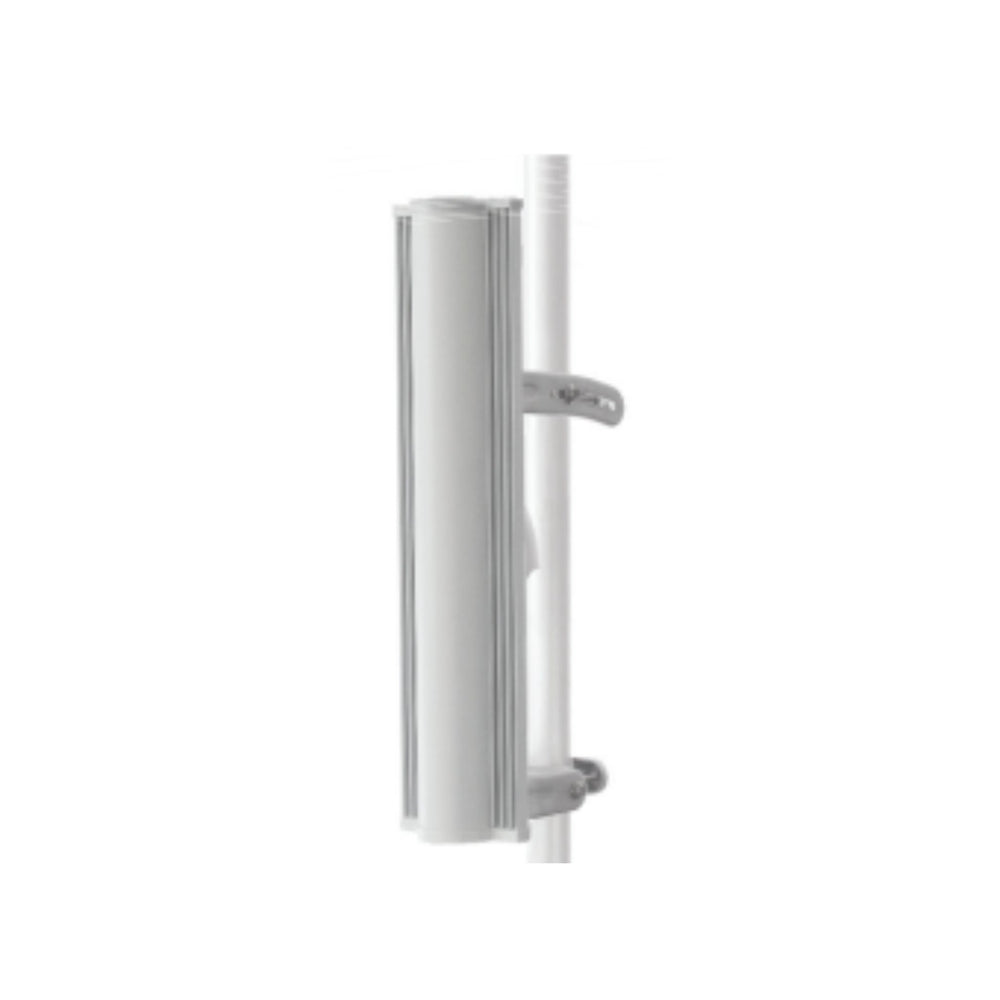

RF elements Sector Carrier Class 5-16 HHV 3x3
RF elements Sector Carrier Class antennas meet customer needs for high RF performance, noise resistance, easy installation, and cost efficiency. These antennas feature a patented BackShield™ system that uses frequency selective reflectors to reduce side lobes and backside near field radiation.
Tech Specs
Click here for the RF elements Sector Carrier Class 5-16 HHV 3x3 datasheet.
| Device Specifications | |
|---|---|
| Antenna Connection | 3 × RP-SMA on integrated semi-flex pigtails |
| Antenna Type | 5 GHz 16 dBi HHV |
| Environmental | IP55 |
| Temperature | -26°C to +60°C (-15°F to +140°F) |
| Wind Survival | 160 km/h |
| Electrical Downtilt | 0° |
| Pole Mounting Diameter | max 85 mm |
| Weight | 3.1 kg / 6.8 lbs – single unit 4.1 kg / 9 lbs – single unit incl. package |
| Single Unit Retail Box | 115 × 10 × 22 cm |
| Frequency Range | 5450 – 5850 MHz |
| Gain | H1 16.7 dBi / H2 16 dBi / V 16.7 dBi |
| Polarization | Triple Linear H1 + H2 + V |
| Azimuth Beam Width -3 dB | H1 77° / H2 76° / V 76° |
| Elevation Beam Width -3 dB | H1 7.5° / H2 7.5° / V 7.5° |
| Azimuth Beam Width -6 dB | H1 100° / H2 99° / V 102° |
| Elevation Beam Width -6 dB | H1 10° / H2 10° / V 10° |
| Front-to-Back Ratio | 30.6 dB (Min.) |
| Polarization Isolation | V-H2 18 dB V-H1 18 dB H2-V 23 dB H2-H1 0 dB H1-V 19 dB H1-H2 0 dB |
| Impedance | 50 Ohm |
| VSWR | Max 1.8 / Typical 1.35 |
| Isolation Between Ports | H1-H2 44 dB H1-V 30 dB H2-V 65 dB |
| Compatible Wireless Platforms | *with EasyBracket™ for ePMP™ **with EasyBracket™ 912 RF elements® StationBox® S, StationBox® S CARRIER CLASS, RockShield™ Cambium Networks™ ePMP™ 1000 Connectorized Radio* MikroTik™ BaseBox**, NetBox**, NetMetal ** Ubiquiti Networks™ UBNT Rocket™ M5, UBNT Rocket™ M5 Titanium UBNT Rocket™ 5ac, UBNT Rocket™ 5ac Prism |
FAQs
Q1: What is the RF Elements Sector Carrier Class 5‑16 HHV and what is it used for?
A: The RF Elements Sector Carrier Class 5‑16 HHV is a high‑performance sector antenna designed for outdoor wireless networks. It is used in point‑to‑multipoint (PtMP) deployments to provide broad horizontal coverage and strong signal distribution to wireless client devices.
Q2: What does the “5‑16” horizontal beamwidth mean for this sector antenna?
A: The 5‑16° horizontal beamwidth indicates that this antenna provides focused but expansive sector coverage. It helps deliver reliable connectivity over a wide area while maintaining signal strength and stability for multiple receivers.
Q3: What MIMO configuration does the SEC‑CC‑5‑16‑HHV support?
A: This sector antenna is built with 3×3 MIMO capability, which enables it to transmit and receive multiple spatial streams simultaneously. This improves throughput, spectral efficiency, and overall wireless performance in high‑density or high‑traffic environments.
Q4: What applications is the SEC‑CC‑5‑16‑HHV suitable for?
A: The antenna is ideal for wireless ISP base stations, campus networks, urban or rural PtMP systems, and community broadband deployments where broad sector coverage and reliable signal distribution are essential.
Q5: What physical and environmental features does the RF Elements Sector Carrier Class 5‑16 HHV offer?
A: The sector antenna features a rugged, weather‑ready housing and supports mast or pole mounting for fixed outdoor installations. It’s engineered for long‑term reliability in challenging environments where consistent wireless connectivity is required.
