RF elements Symmetrical Horn Carrier Class SH-CC 5-90
The SH-CC Series provides unparalleled RF capabilities in a compact design. Its scalar horn antennas feature symmetrical beams, resulting in identical patterns in the vertical and horizontal planes. This unique feature greatly reduces interference through extremely small side lobes. SH-CC Antennas are perfect for areas with close-in clients where null zones are a concern.
With its unique RF radiation patterns and compact size, it allows for high-density AP clusters and radio co-location. The SH-CC 5-90 antenna comes equipped with N-female connectors.
Tech Specs
Click here for the RF elements Symmetrical Horn Carrier Class SH-CC 5-90 datasheet.
| Device Specifications | |
|---|---|

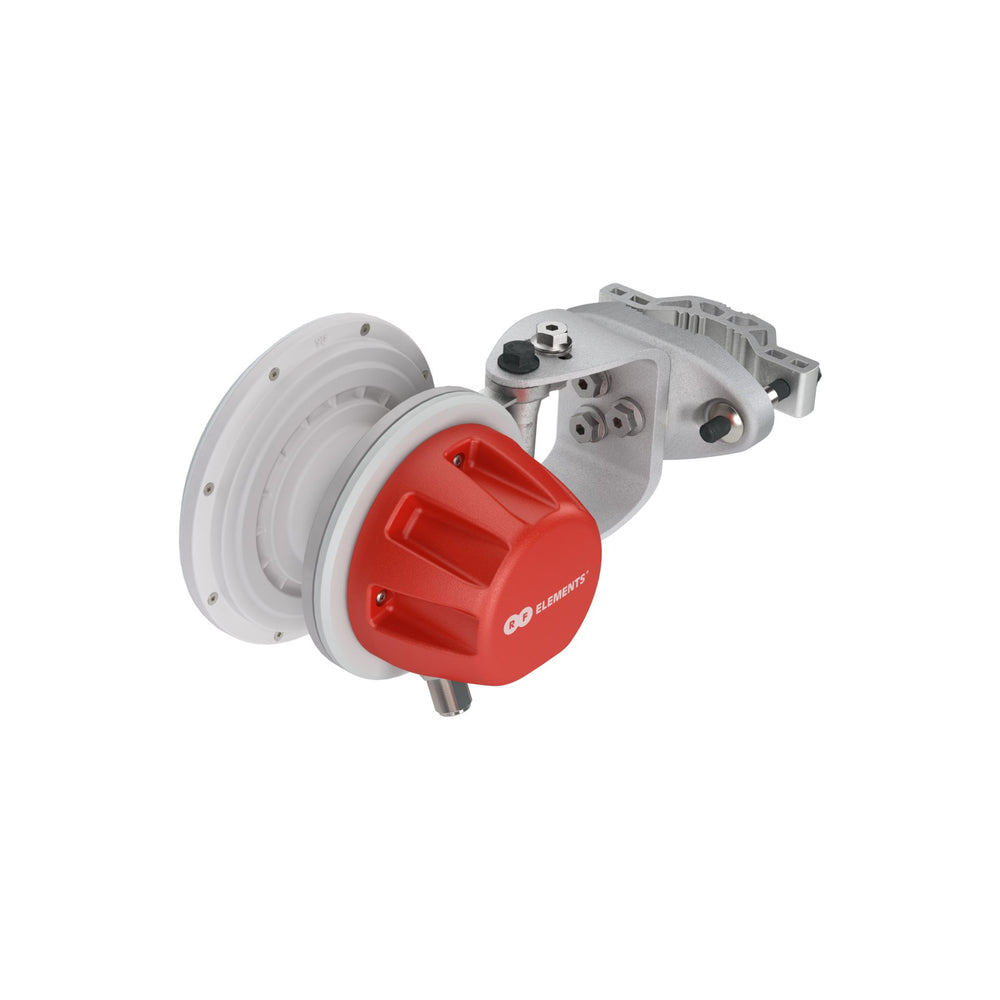

| Radio Connection | 2× N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant Polycarbonate, Polypropylene, Aluminium, Zinc, Stainless Steel |
| Environmental | IP55 |
| Flame Rating | UL 94 HB |

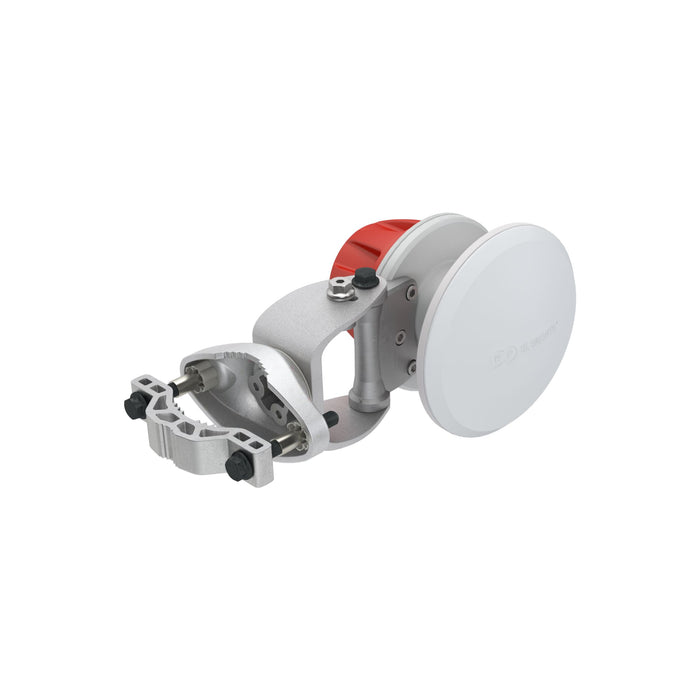

| Pole Mounting Diameter | 30–80 mm (1.1–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 25/10 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 203/80 cm² – Front/Side (31.5/12.4 in²) |
| Mechanical Tilt | ± 25° |
| Weight | 1.8 kg / 3.9 lbs – single unit 2.6 kg / 5.7 lbs – single unit incl. package 27.4 kg / 60.4 lbs – carton (10 units) |
| Single Unit Retail Box | 305 × 239 × 183 mm (12 × 9.4 × 7.2 inch) |
| 10 Units Carton Box | 940 × 510 × 335 mm (37 × 20 × 13.2 inch) |
| Frequency Range | 5180 – 6400 MHz |
| Gain | 9.6 dBi |
| Azimuth/Elevation BW -3 dB | H 67° / V 67° |
| Azimuth/Elevation BW -6 dB | H 90° / V 90° |
| Front-to-Back Ratio | 28 dB |
| VSWR Max 5180–5850 MHz | 1.6 |
| VSWR Max 5850–6400 MHz | 1.9 |
| Beam Efficiency | 92% |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
FAQs
Q1: What is the RF Elements Symmetrical Horn Carrier Class SH‑CC 5‑90 and what is it used for?
A: The RF Elements Symmetrical Horn Carrier Class SH‑CC 5‑90 is a high‑performance horn‑style wireless antenna designed for outdoor networks, providing wide horizontal coverage. It’s typically used in point‑to‑multipoint (PtMP) and sector coverage deployments where broad, even signal distribution is required.
Q2: What does the “5–90” beam pattern mean for this antenna?
A: The “5–90” designation refers to the antenna’s graded beam coverage, offering a wide horizontal angle from narrow to broad for strong sector coverage. This allows network designers to cover large areas while maintaining reliable link quality and reduced signal interference.
Q3: How does the symmetrical horn design improve wireless performance?
A: The symmetrical horn design ensures a consistent radiation pattern with minimal sidelobes, which improves signal uniformity and reduces interference across the coverage area — especially beneficial in dense wireless environments.
Q4: What applications are ideal for the SH‑CC 5‑90 antenna?
A: This antenna is ideal for wireless ISP base stations, campus networks, fixed‑wireless access, and public venue coverage where reliable wide‑angle wireless distribution is needed and interference must be minimised.
Q5: What physical and environmental features does the SH‑CC 5‑90 offer?
A: The SH‑CC 5‑90 is built for outdoor durability, with a rugged enclosure suited to harsh environmental conditions. It supports mast or pole mounting and is designed for continuous operation in varying weather conditions common to outdoor wireless deployments.
