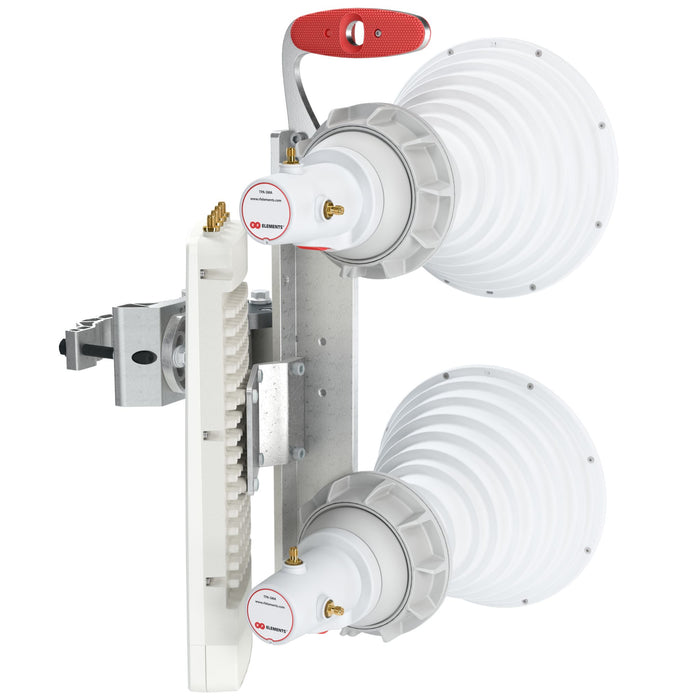

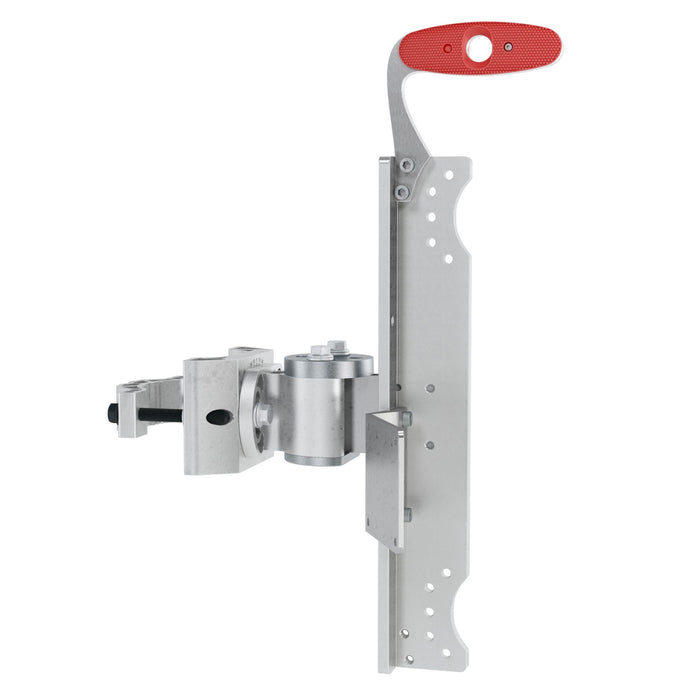

The RF elements Twin Horn Bracket (THB) is the ideal mounting solution for deploying two horn antennas in identical setups, utilizing a dual N connector or dual TPA-SMA setup. It also has an integrated option for 4x4 MIMO radios, making installation in the field easy. The optional radio mount is detachable for use with third-party radios.
Tech Specs
Click here for the RF Elements Twin Horn Bracket datasheet.
| Device Specifications | |
|---|---|
| Product ID | THB |
| Materials | Aluminium and Zinc Alloy, Stainless Steel, UV stabilized and weather resistant ABS plastic |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Flame Rating | UL 94 HB |
| Wind Survival | 160 km/h |
| Pole Mounting Diameter | 40–80 mm (recommend as close to 80 mm as possible) |

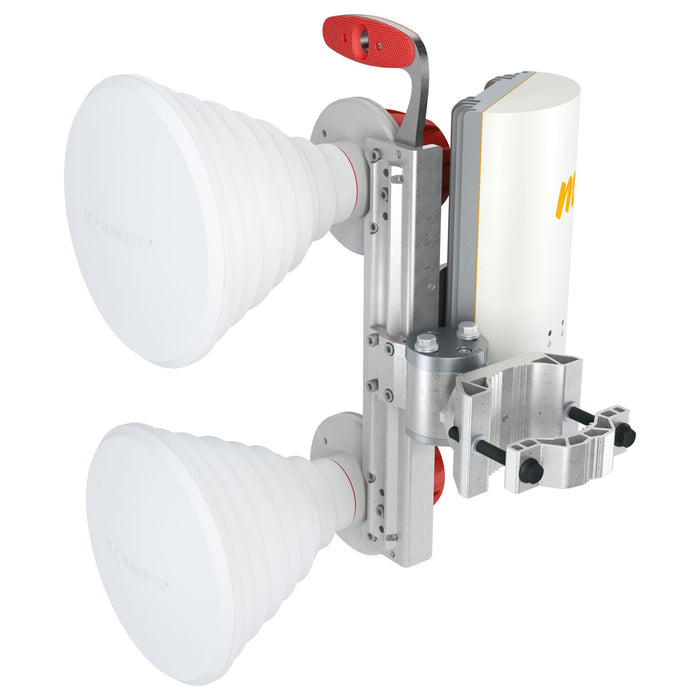

| Radio Compatibility | Cambium Networks™ ePMP™ 3000, ePMP™ 4600 AP and Mimosa® A5c |
| Antenna Compatibility | Any Symmetrical Horn TP Antennas Gen2 with TPA-SMA, any Symmetrical Horn CC Antennas Gen2 |
FAQs
Q1: What is the RF Elements Twin Horn Bracket (THB) and what is it used for?
A: The RF Elements Twin Horn Bracket (THB) is a heavy‑duty mounting accessory designed to securely hold two horn antennas on a single pole or mast. It’s used in outdoor wireless installations where paired antennas are needed for broader coverage or diversity links.
Q2: How does the Twin Horn Bracket support antenna alignment?
A: The THB provides a stable, adjustable mounting platform that helps maintain precise antenna positioning and alignment. This ensures optimal signal performance by keeping both horn antennas correctly oriented relative to the wireless link.
Q3: What types of antennas can be mounted using the RF Elements THB?
A: This bracket is suitable for pairing compatible horn antennas in outdoor networks. It’s ideal when two antennas are deployed on the same mast to cover different sectors or achieve diversity and redundancy.
Q4: How is the RF Elements Twin Horn Bracket installed?
A: The bracket attaches to a pole or mast, and horn antennas are mounted to it using the included hardware. It is engineered for robust outdoor use and can be adjusted to achieve the desired antenna orientation.
Q5: What environments and setups is the Twin Horn Bracket ideal for?
A: The THB is ideal for wireless ISP (WISP) base stations, point‑to‑multipoint sector installations, high‑density traffic scenarios, and outdoor fixed‑wireless deployments where paired antennas can improve performance or provide redundancy.
