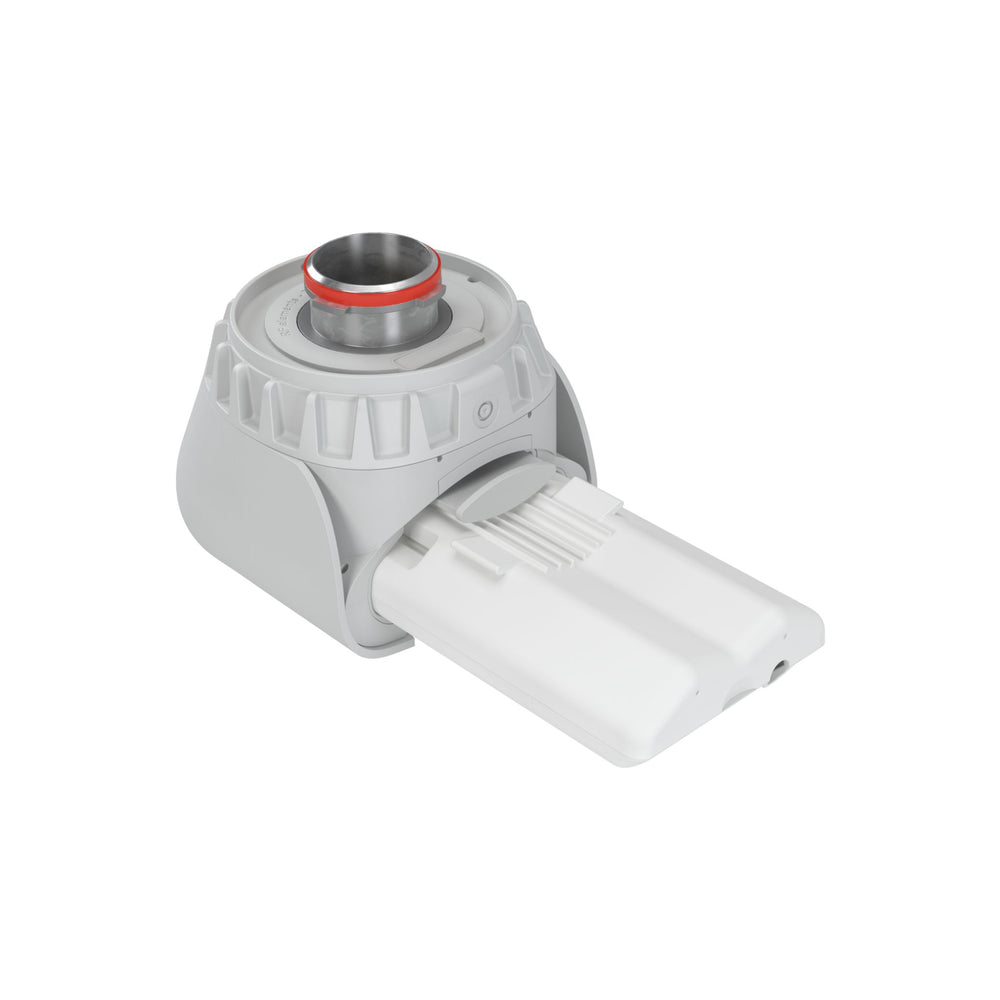

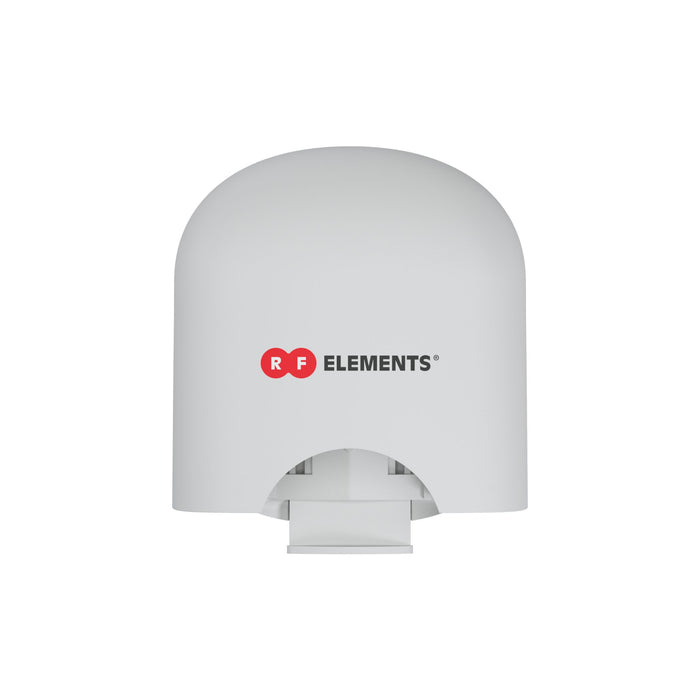

RF elements TwistPort Adaptor for Ubiquiti Rocket 5AC Lite
As an industry expert, trust the RF elements TPA-R5AC TwistPort Adaptor for seamless integration of R5AC Lite radios with the proprietary TwistPort waveguide connector. No tools required.
Tech Specs
Click here for the RF Elements TPA-R5AC datasheet.
| Device Specifications | |
|---|---|
| Product ID | TPA-R5AC |
| Antenna Connection | TwistPort™ – Quick Locking Waveguide Port |
| Radio Connection | 2× Slide-On RP-SMA |
| Materials | Insert – Aluminium Alloy Adaptor – UV stabilised and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Wind Survival | 160 km/h |
| Frequency Range | 5180 – 6400 MHz |
| Polarization | Dual Linear H + V |
| Antenna Compatibility | Any TwistPort™ Compatible Antenna |
| Radio Compatibility | Ubiquiti™: Rocket® 5AC-Lite |
FAQs
Q1: What is the RF Elements TwistPort™ Adapter for Rocket AC and what is it used for?
A: The TwistPort™ Adapter for Rocket AC (TPA‑R5AC) is a specialised mounting adapter designed to connect Rocket AC radios to compatible TwistPort™‑based antennas. It improves RF performance by aligning the radio and antenna ports for optimal signal flow.
Q2: How does the TwistPort™ Adapter improve wireless performance?
A: The adapter creates a continuous RF waveguide path between the radio and the antenna, reducing signal reflections and loss that occur at standard rectangular connectors. This leads to higher throughput and better overall link reliability.
Q3: What equipment is the TwistPort™ Adapter compatible with?
A: The adapter is designed specifically for Rocket AC series radios and TwistPort™‑compatible antennas, providing a secure and low‑loss interface between the radio and the antenna for improved network performance.
Q4: How is the TwistPort™ Adapter installed?
A: The adapter mounts directly to the Rocket AC radio and mates with the TwistPort™ interface on compatible antennas. Its design ensures a weather‑protected and mechanically secure connection for outdoor wireless deployments.
Q5: What applications is the TwistPort™ Adapter ideal for?
A: It’s ideal for point‑to‑point and point‑to‑multipoint wireless links, wireless ISP (WISP) backhaul, and other high‑performance outdoor wireless installations where maximising signal strength and efficiency is critical.
