RF elements UltraHorn 5Ghz 24dBi TwistPort Antenna

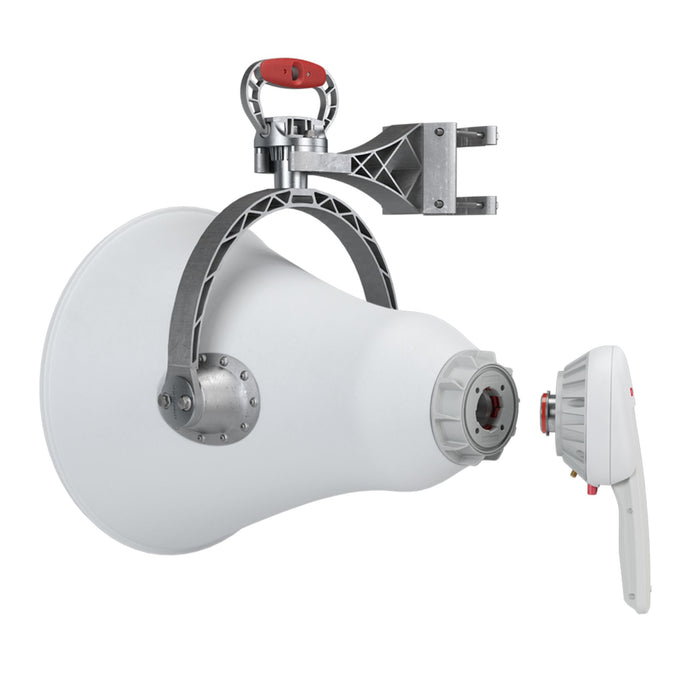

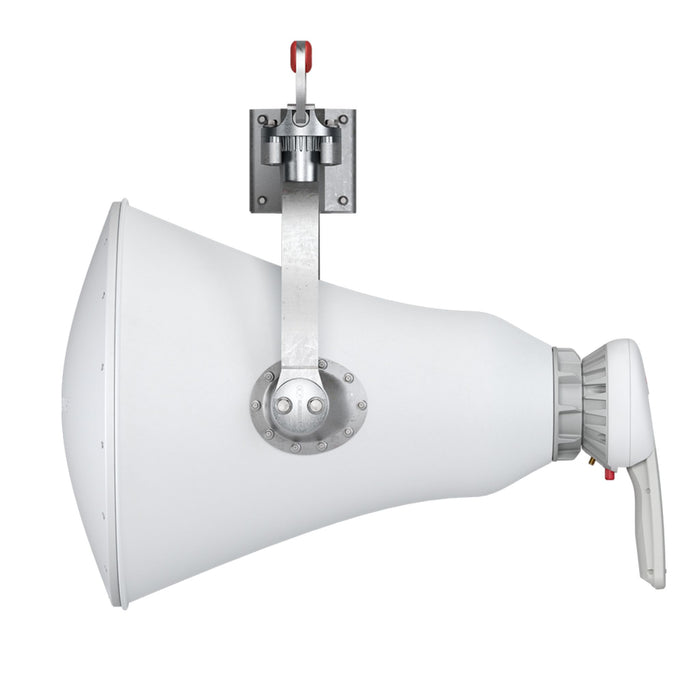

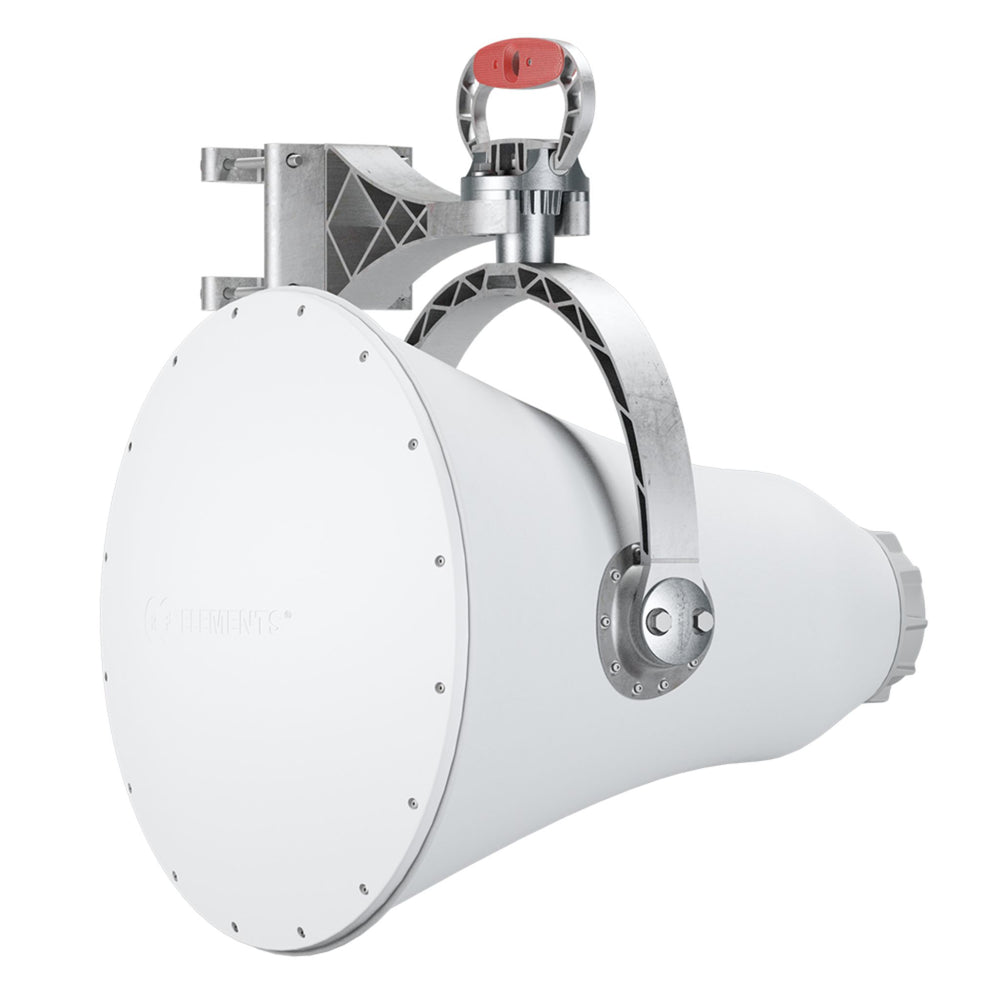

The RF elements UltraHorn 5Ghz 24dBi TwistPort Antenna provides high gain and low loss for point-to-point links, with ultra noise rejection and a symmetrical beam. Its mount is separate from the antenna for quick and easy adjustment, making it a great choice for long links in noisy environments.
Tech Specs
Click here for the RF Elements UH-TP-5-24 datasheet.
| Device Specifications | |
|---|---|
| Technical Data | |
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic Polycarbonate Polypropylene Aluminium Stainless Steel |
| Environmental Rating | IP55 |
| Pole Mounting Diameter | 30–80 mm (1.2–3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 150/104 N – Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 1231/849 cm² – Front/Side (190.8/131.6 in²) |
| Mechanical Adjustment | ± 25° Elevation, ± 25° Azimuth |
| Weight | 8.2 kg (18 lbs) – single unit 9.2 kg (20 lbs) – single unit incl. package |
| Packaging Dimensions | Single Unit Retail Box: 55.0 × 55.0 × 66.6 cm (21.7 x 21.7 x 26.2 inch) |
| Performance | |
| Frequency Range | 5180 - 6775 MHz * |
| Gain | 24 dBi |
| Azimuth Beam Width -3 dB | H 11° / V 11° |
| Elevation Beam Width -3 dB | H 11° / V 11° |
| Azimuth Beam Width -6 dB | H 16° / V 15° |
| Elevation Beam Width -6 dB | H 16° / V 15° |
| Beam Efficiency** | 99% |
| Polarization | Double Linear H+V |
| Front-to-Back Ratio | 40 dB |
