MikroTik L009UiGS-RM

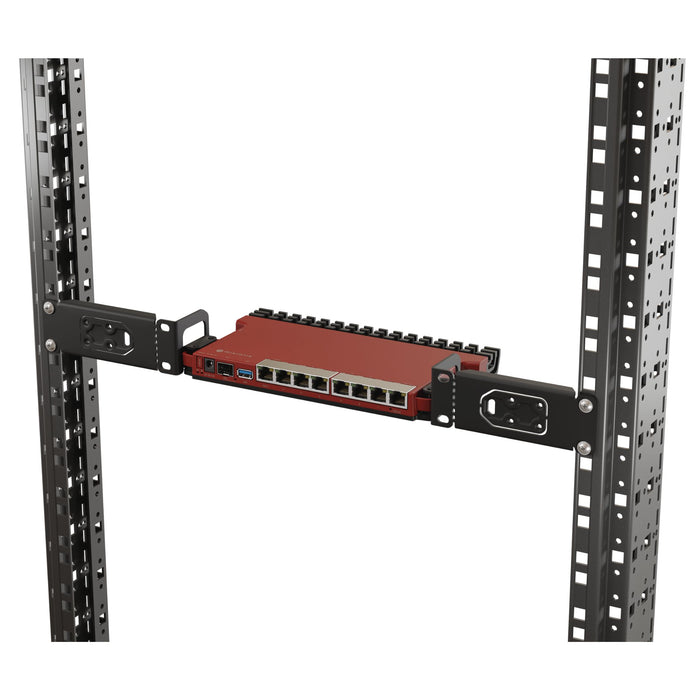

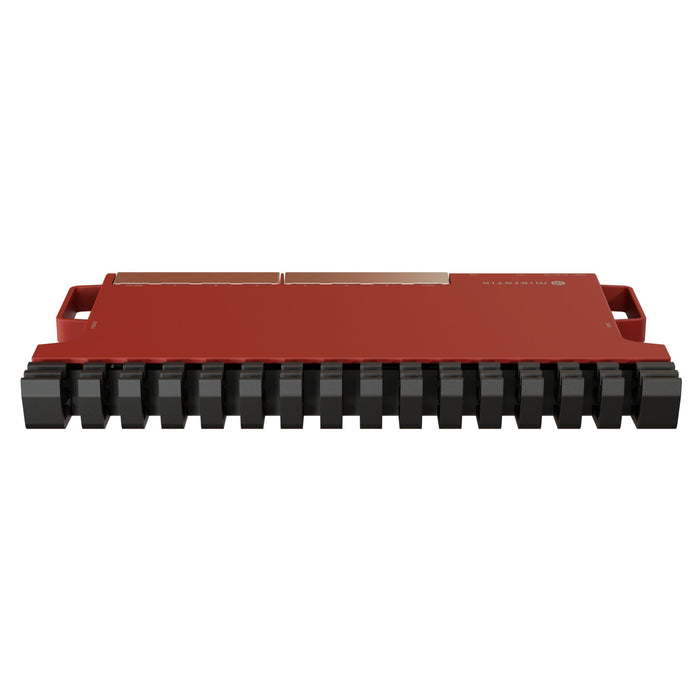

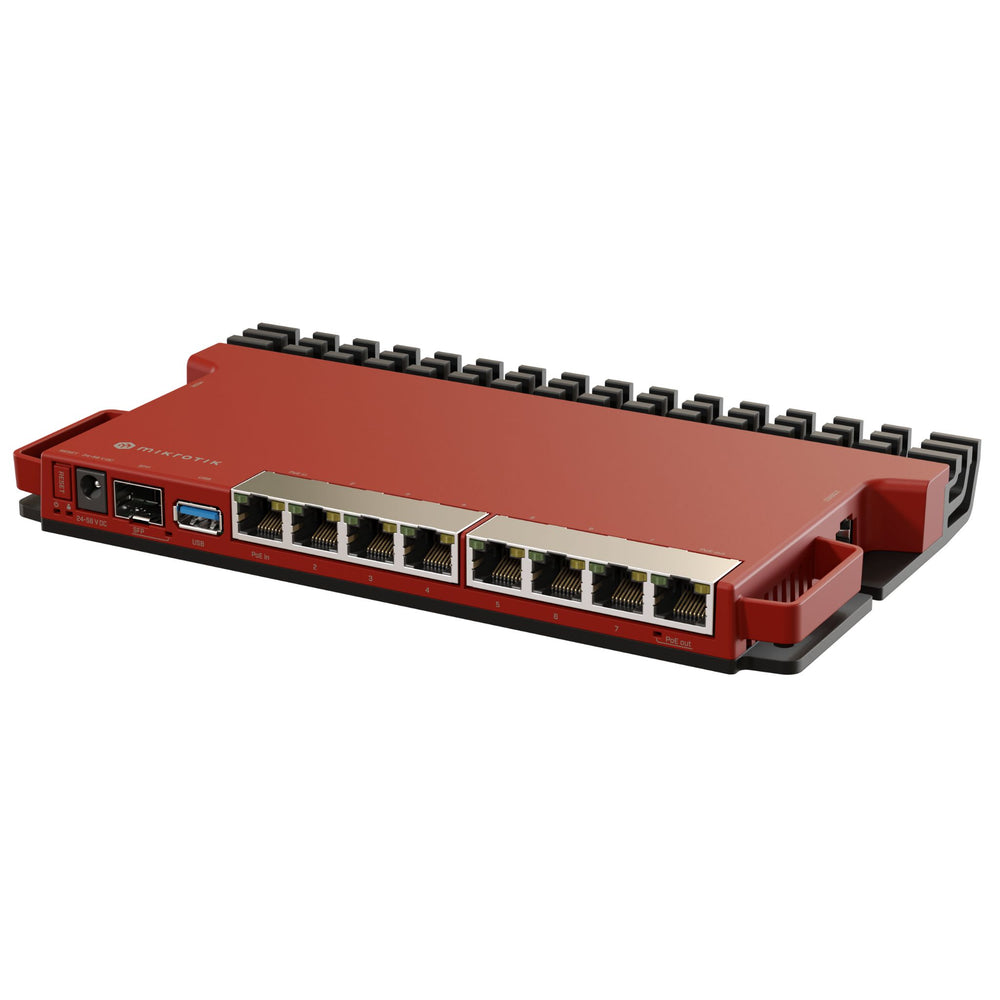

L009UiGS-RM offers a powerful dual-core ARM CPU and advanced features like IPsec hardware encryption. With its modern ARM CPU, full-sized USB port, and gigabit Ethernet ports, it is up to 4 times faster than RB2011. It also includes a PoE-in port and an SFP cage for easy connectivity. The enclosure acts as a heat-sink and can fit up to four routers in a single 1U rackmount space. The RM version does not have 2.4 GHz wireless.
Tech Specs
Click here for the L009UiGS-RM datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | L009UiGS-RM |
| Architecture | ARM |
| CPU | IPQ-5018 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 88E6190 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $119.00 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 24-56 V |
| Max power consumption | 40 W |
| Max power consumption without attachments | 8 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 24-56 V |
| PoE-out | |
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 1 A |
| High voltage PoE-Out current limit | 450 mA |
| Max total out (A) | 1 A |
| Ethernet | |
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Fiber | |
| SFP ports | 1 (2.5G supported) |
| Peripherals | |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
| Other | |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
FAQs
Q: What is the MikroTik L009UiGS-RM used for?
A: The L009UiGS-RM is a high-performance router designed for enterprise and service-provider environments, offering eight Gigabit Ethernet ports, one SFP slot supporting 1 Gbps or 2.5 Gbps, PoE-in and PoE-out support, and rack-mount form factor.
Q: What are the key hardware specifications of the L009UiGS-RM?
A: It features a dual-core ARM CPU (800 MHz), 512 MB RAM, 128 MB NAND storage, eight 10/100/1000 Mbps Ethernet ports, one SFP port (2.5 Gbps supported), USB 3.0 Type-A port, console RJ-45 and rack-mount kit.
Q: What power and PoE features does the L009UiGS-RM offer?
A: The router supports PoE-in on its first port (802.3af/at), DC jack input (24-56 V) and passive PoE-out on its last Ethernet port to power downstream devices. Max power consumption is around 40 W, and typical operation around 8 W without attachments.
Q: Why choose the L009UiGS-RM over previous generation models?
A: Compared to legacy models, it delivers significantly improved routing and packet-processing performance, enhanced firewall and encryption support, full Gigabit ports (+ 2.5 Gb SFP), USB container support, and a 1U rack-mountable enclosure designed for efficient deployment.
Q: In what environments is the L009UiGS-RM ideal and how should it be deployed?
A: It’s ideal for server-room, rack-mount network installations in enterprise or ISP settings. With 1U mounting, passive cooling, and robust features it suits high-density, high-performance scenarios and professional connectivity setups.
