Mikrotik Heavy-Duty PoE Home Lab Router
Please contact us for stocking information.

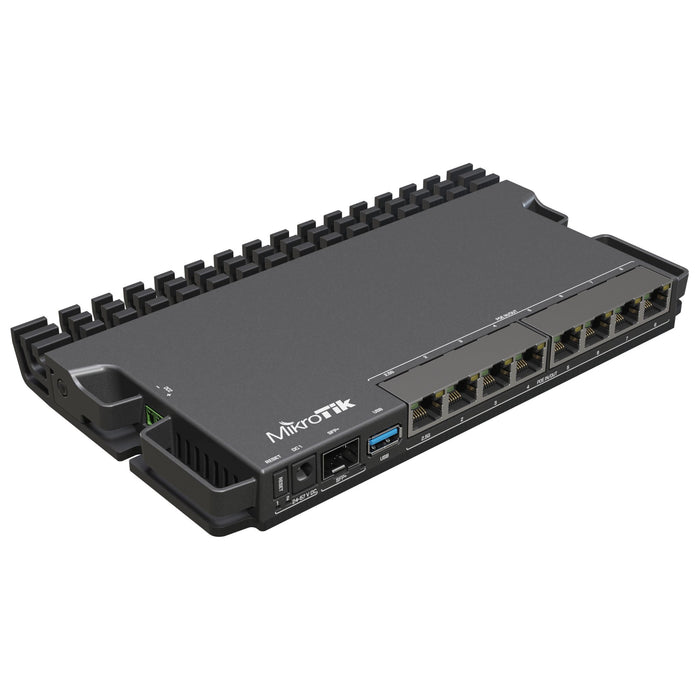

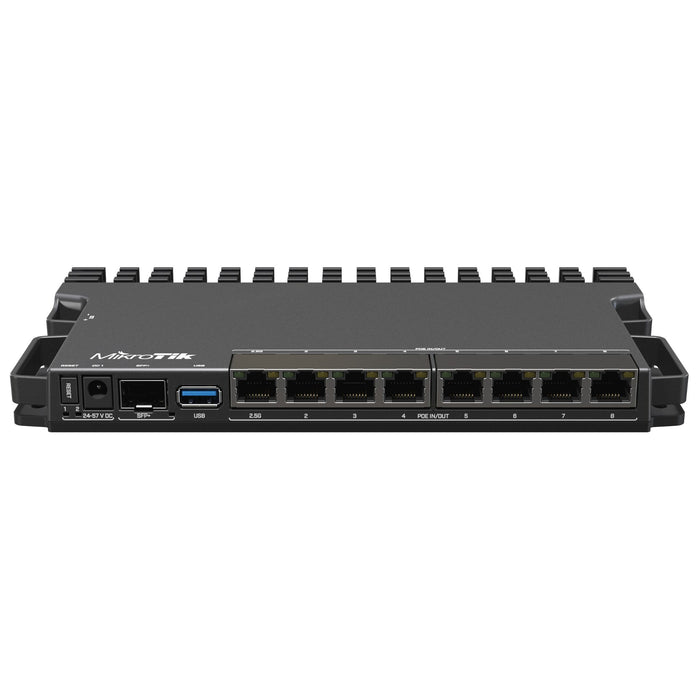

This RB5009 model has all the features of the previous version: Gigabit Ethernet, 2.5 Gigabit Ethernet, and 10 Gigabit SFP+ cage for fibre connectivity. It also includes PoE-in & PoE-out on all eight Ethernet ports and a wide voltage range of 24-57V. TheRB5009 is a powerful and affordable option for small and medium ISPs, with a durable metallic case and multiple powering options.
Tech Specs
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | RB5009UPr+S+IN |
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |
| Switch chip model | 88E6393 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -40°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $299.00 |
| Powering | |
| Number of DC inputs | 3 (2-pin terminal, DC jack, PoE-IN) |
| DC jack input Voltage | 24-57 V |
| 2-pin terminal input Voltage | 24-57 V |
| Max power consumption | 150 W |
| Max power consumption without attachments | 16 W |
| PoE in | 802.3af/at (ether1), Mode B (ether2-ether8) |
| Cooling type | Passive |
| PoE in input Voltage | 24-57 V |
| PoE-out | |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 900 mA |
| High voltage PoE-Out current limit | 440 mA |
| Max total out (A) | 2.59 A |
| Total output current | 2.28 A |
| Total output power | 130 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 7 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) | 1 |
| Fiber | |
| SFP+ ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
| Other | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
FAQs
Q: What is the MikroTik RB5009UPr+S+IN used for?
A: It’s a high‑performance, PoE-enabled wired router built for edge, aggregation or lab networks. It supports multiple power inputs, can output PoE on its ports, and is suitable for powering other devices as well as routing.
Q: What are the core hardware specifications of this router?
A: It includes a quad‑core ARM 64-bit CPU (88F7040), 1 GB DDR4 RAM, 1 GB NAND storage, 7 Gigabit Ethernet ports, 1 × 2.5 Gb Ethernet, 1 × 10 Gb SFP+ port, and a USB‑A 3.0 port.
Q: How is the RB5009UPr+S+IN powered and what PoE features does it support?
A: The device supports three power inputs: 24‑57 V via DC jack, 2‑pin terminal, or 802.3af/at PoE‑in. It can output PoE (802.3af/at) from all eight Ethernet ports, delivering up to ~2.6 A total across them.
Q: What is the operating temperature and build quality of the RB5009UPr+S+IN?
A: It has a durable metal chassis, passive cooling, and is rated for operation between –40 °C and +60 °C, making it suitable for demanding indoor or lightly protected rack environments.
Q: Who should choose the RB5009UPr+S+IN and in what network scenarios?
A: Ideal for ISPs, network labs, edge aggregation, or PoE‑powered deployments. With its multi‑gig and SFP+ ports plus full PoE out, it’s perfect for powering access points, cameras, or other PoE devices while routing traffic.
