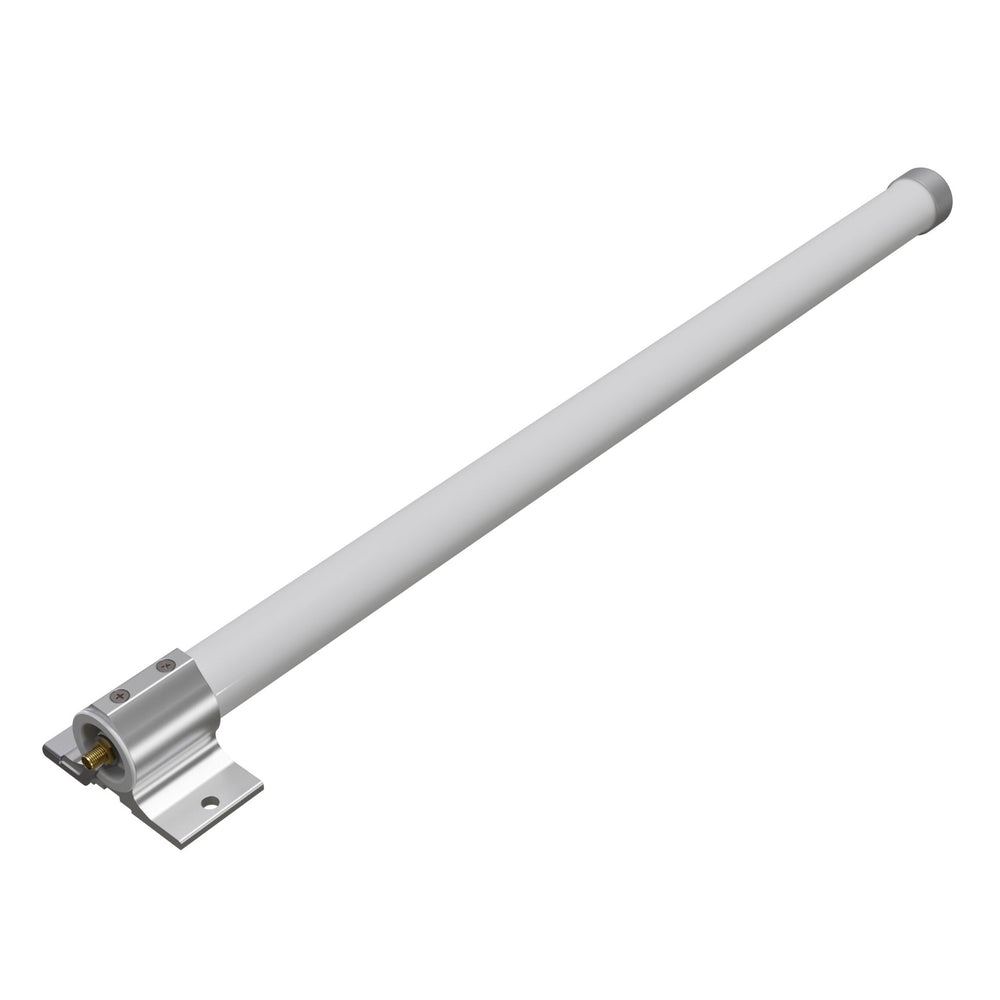

MikroTik 6.5dBi Omni Antenna for LoRa Devices
This LoRa antenna kit includes a 6.5 dBi Omni antenna designed for 824-960 MHz frequencies, a 1 m long SMA cable, and a convenient mechanical holder for quick and easy mast attachment.
Tech Specs
| Device Specifications | |
|---|---|
| Product code | 868_Omni_antenna |
| Frequency | 862 - 876 MHz |
| Peak gain | 6.5 dBi |
| Horizontal beamwidth | 360° |
| Vertical beamwidth | 30° |
| Nominal impedance | 50 Ω |
| Lightning protection | DC ground |
| Antenna connector | SMA female |
| Weight | 0.6 kg |
| Dimensions | 42 x 68 x 495 mm |
FAQs
Q1: What is the MikroTik 868 Omni Antenna used for?
A: It’s an omni‑directional antenna ideal for LoRa and other sub‑GHz wireless networks, providing 360° horizontal coverage in a compact, weatherproof design.
Q2: What frequency range does the 868 Omni support?
A: The antenna operates from 824 MHz to 960 MHz, making it compatible with many European and regional sub‑GHz deployments.
Q3: What is the gain and beam pattern of the antenna?
A: The antenna has a maximum gain of 6.5 dBi, with a horizontal beamwidth of 360° (full omni coverage) and a vertical beamwidth of 30°.

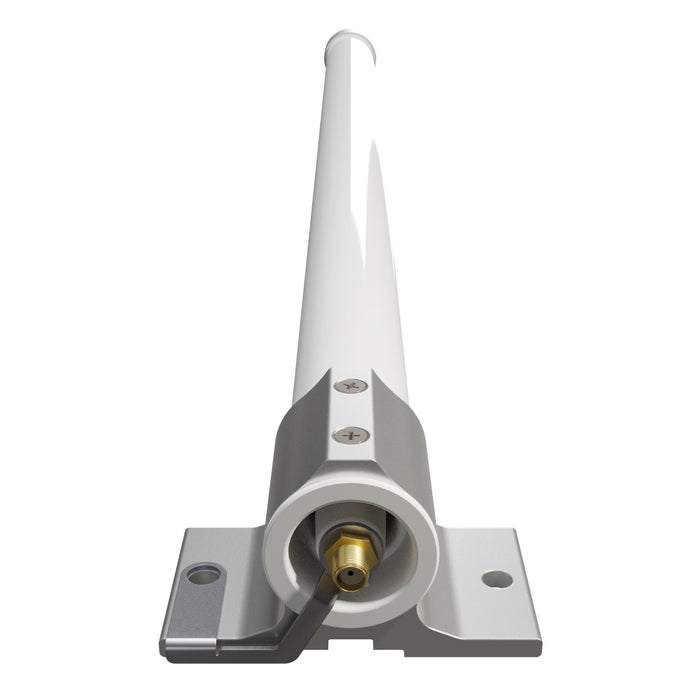

Q4: What type of connector and mounting does it use?
A: It comes with an SMA‑female connector, and includes a 1 m SMA cable plus a mechanical holder for quick mast mounting on 25–50 mm poles or wall brackets.
Q5: How rugged is the 868 Omni antenna?
A: The antenna is rated IP66 for water resistance (protection against jets), weighs around 0.6 kg, and is designed to withstand outdoor conditions.
