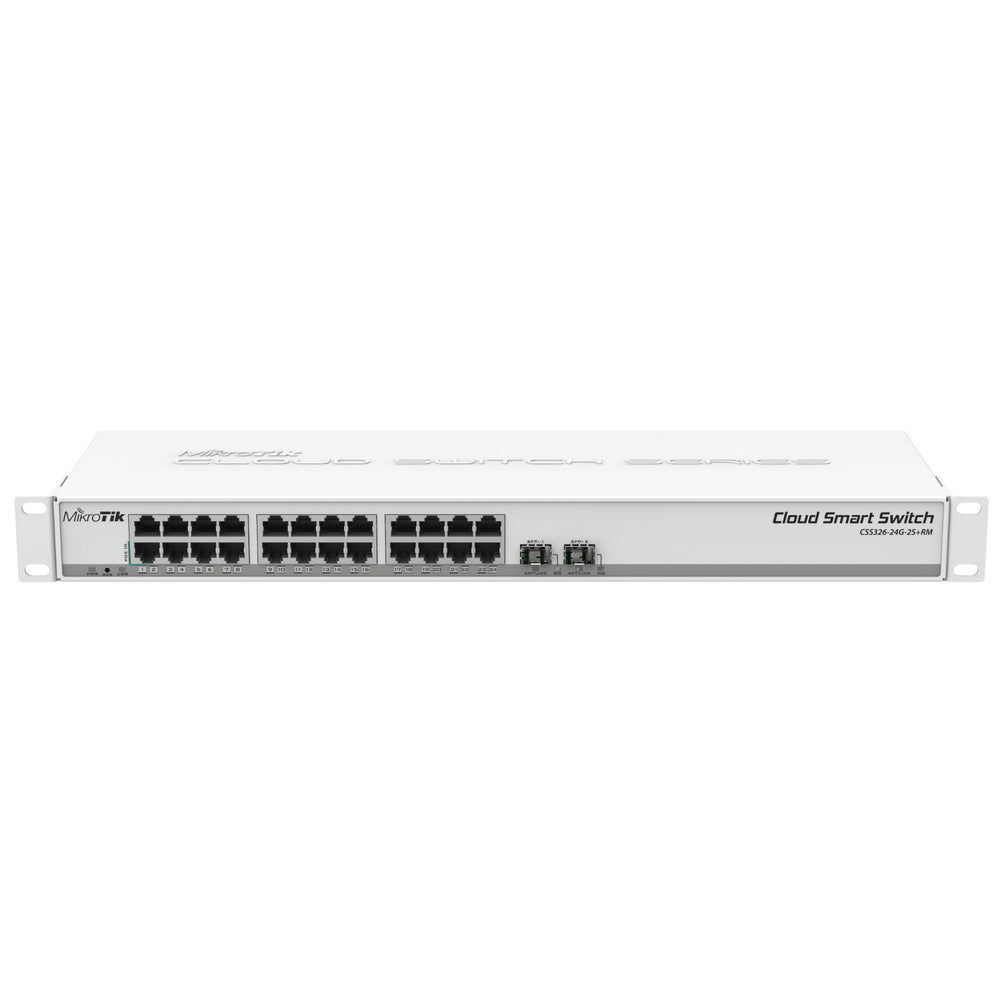

MikroTik Cloud Smart Switch CSS326-24G-2S+RM
The MikroTik Cloud Smart Switch CSS326-24G-2S+RM is a 1U rackmount device powered by SwOS. It boasts 24 Gigabit Ethernet ports and 2 SFP+ ports, offering high-speed connectivity and advanced switching capabilities. This includes basic switch management, port-to-port forwarding management, VLAN configuration, and bandwidth limitation. The SFP+ cages support both 1.25G SFP and 10G SFP+ modules, providing versatile networking options for professionals in the industry.
Tech Specs
Click here for the CSS326-24G-2S+RM datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CSS326-24G-2S+RM |
| Switch chip model | 98DX3216 |
| Dimensions | 443 x 144 x 44 mm |
| Operating System | SwOS |
| Storage size | 2 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $159.00 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 19 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 10-30 V |
| Ethernet | |
| 10/100/1000 Ethernet ports | 24 |
| Fiber | |
| SFP+ ports | 2 |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
FAQs
Q: What is the MikroTik CSS326‑24G‑2S+RM used for?
A: It’s a rack-mountable smart switch for edge or aggregation deployments, providing 24 Gigabit Ethernet ports alongside 2 SFP+ uplink ports for high-speed fiber connectivity.
Q: What switching features does the CSS326‑24G‑2S+RM support?
A: Running MikroTik’s SwOS, it supports VLANs (802.1Q), MAC‑filtering, port isolation, port mirroring, broadcast storm control, ACLs, and bandwidth limits, all via a web GUI.
Q: How is the CSS326‑24G‑2S+RM powered, and what are its power requirements?
A: The switch supports both DC jack input (10–30 V) and passive PoE‑in (on port 1) within the same voltage range. Its maximum power draw is approximately 19 W.
Q: What are the uplink and fiber capabilities of the switch?
A: It has 2 × SFP+ cages that support both 1.25 Gb SFP modules and 10 Gb SFP+ modules, making it flexible for different fiber link types.
Q: What are the physical and environmental specifications of the CSS326‑24G‑2S+RM?
A: The chassis is 1U rack‑mountable (443 × 144 × 44 mm), passively cooled (fanless), and rated to operate between –20 °C and +70 °C, making it well suited for a variety of deployments.
