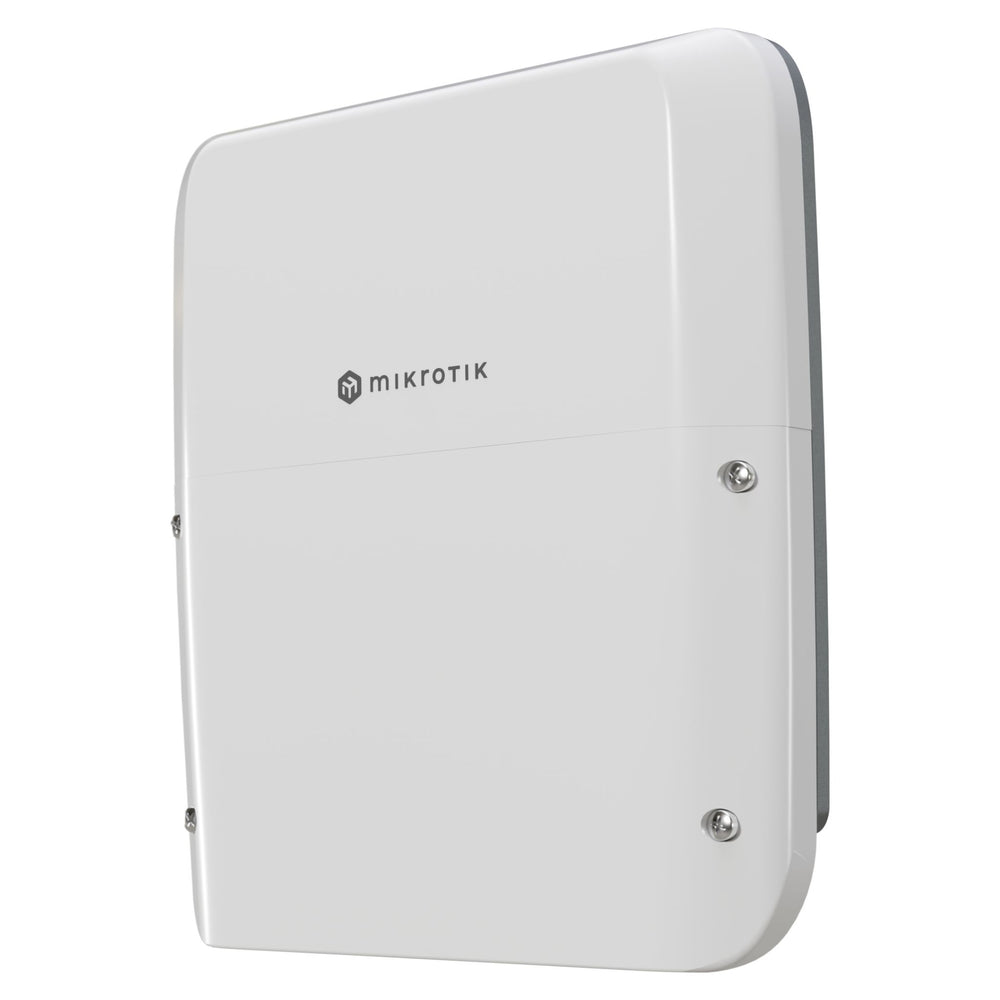

MikroTik RB5009UPr+S+OUT outdoor case with RouterOS L5 license
The RB5009UPr+S+OUT is a small but powerful outdoor networking device with 9 power options and 130W power limit. It can perform various tasks such as PPPoE, DHCP, MPLS, VPLS, and hardware bridging. Perfect for ISPs of all sizes.
Tech Specs
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | RB5009UPr+S+OUT |
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |
| Switch chip model | 88E6393 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $319.00 |
| Powering | |
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | 24-57 V |
| Max power consumption | 150 W |
| Max power consumption without attachments | 15 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 24-57 V |
| PoE-out | |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 900 mA |
| High voltage PoE-Out current limit | 440 mA |
| Max total out (A) | 2.59 A |
| Total output current | 2.28 A |
| Total output power | 130 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 7 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Number of 2.5G Ethernet ports with PoE-out | 1 |
| Fiber | |
| SFP+ ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
| Other | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 66 |
FAQs
Q: What is the MikroTik RB5009UPr+S+OUT used for?
A: The RB5009UPr+S+OUT is designed for demanding outdoor network installations, offering seven Gigabit Ethernet ports, one 2.5 GbE port, a 10 Gb SFP+ uplink, full PoE‑out on all Ethernet ports, and a weather‑proof IP66‑rated enclosure to ensure performance in harsh conditions.
Q: What are the hardware and performance specifications of the RB5009UPr+S+OUT?
A: It features a quad‑core ARM CPU (88F7040), 1 GB of RAM, 1 GB NAND storage, seven 1 Gbps Ethernet ports, one 2.5 Gbps Ethernet port, and one 10 Gbps SFP+ slot. The device runs RouterOS v7 with Licence Level 5 for advanced routing and switching.
Q: How does the RB5009UPr+S+OUT support PoE‑in and PoE‑out, and what power redundancy does it offer?
A: It supports up to nine powering options including dual DC inputs and PoE‑in on Ethernet ports. PoE‑out is supported on all eight Ethernet ports, each capable of delivering up to ~25W, with a total output power limit of around 130W, enabling simultaneous powering of downstream devices.
Q: In what network and environmental scenarios is the RB5009UPr+S+OUT ideal?
A: This model is ideal for tower‑mounted or outdoor edge network sites where wiring and power redundancy are critical. Its weather‑proof build, high port count, multi‑gig connectivity and PoE‑out capability make it perfect for remote cabinets, ISP access nodes or distributed outdoor infrastructure.
Q: What installation and mounting considerations apply to the RB5009UPr+S+OUT?

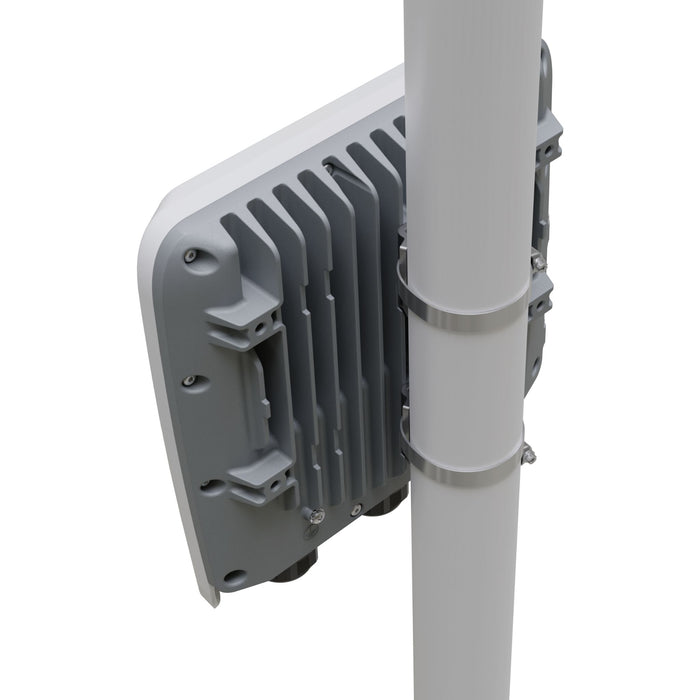

A: The router is enclosed in a rugged metal case rated for operation from ‑40 °C to +70 °C and IP66 ingress protection. It supports pole or wall mounting with the included clamp sets and requires careful power planning to ensure the PoE‑out and PoE‑in supply capacity meets your deployment needs.
