MikroTik RouterBOARD hEX Lite Router

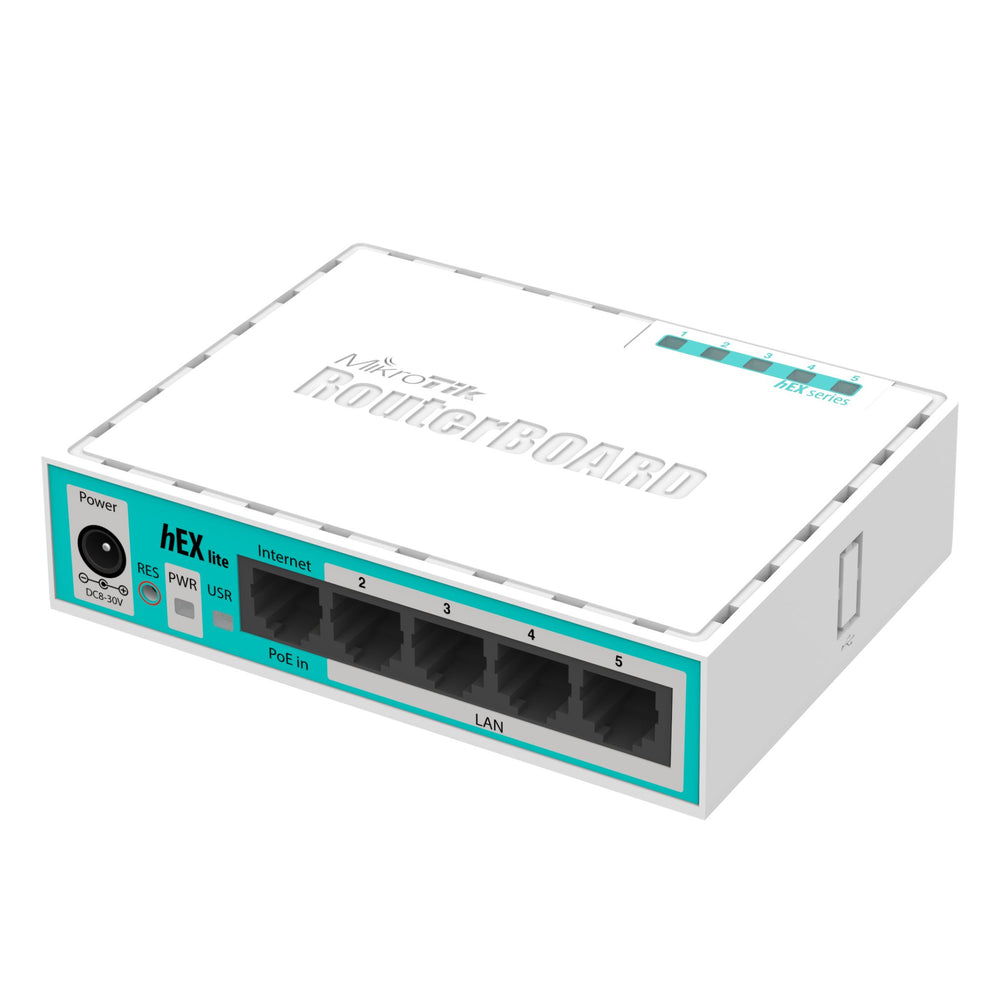

The RB750r2 hEX lite is a compact 5-port ethernet router housed in a sleek plastic enclosure.
Tech Specs
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | RB750r2 |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 850 MHz |
| Switch chip model | QCA9533 |
| Dimensions | 113 x 89 x 28 mm Weight without packaging and cables: 129g |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $39.95 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input voltage | 6–30 V |
| Max power consumption | 2 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input voltage | 6–30 V |
| Ethernet | |
| 10/100 Ethernet ports | 5 |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
FAQs
Q: What is the MikroTik RB750r2 used for?
A: The RB750r2 is a compact, wired router designed for home or small office deployments, providing reliable routing and switching across five Fast‑Ethernet ports.
Q: What are the key hardware specifications of the RB750r2?
A: It features a single-core 850 MHz CPU, 64 MB RAM, 16 MB flash memory, and five 10/100 Mbps Ethernet ports, running RouterOS Licence Level 4 for advanced routing and firewall functions.
Q: How is the RB750r2 powered and what PoE features does it support?
A: The device supports DC jack input or passive PoE‑in (6‑30 V DC), allowing flexible powering options with low energy consumption around 2 W.
Q: In what scenarios is the RB750r2 most suitable?
A: It is ideal for wired network setups in small offices, homes, or branch networks where WiFi is not required but stable routing and Ethernet connectivity are needed.
Q: What are the operating conditions and installation considerations?
A: The RB750r2 is designed for indoor use, operating between ‑40 °C and +70 °C, and features a compact plastic casing (113 × 89 × 28 mm) suitable for desktop or small rack placement.
