MikroTik RouterBOARD PowerBox - RB750P-PBR2 Outdoor Router
The MikroTik RouterBOARD PowerBox RB750P-PBR2 Outdoor Router is a variant of the popular RB750P model. This device boasts 5 Ethernet ports, with PoE available on ports 1-4. Its durable outdoor casing allows for convenient mounting on masts and other outdoor areas. All 5 Ethernet ports are shielded 10/100 ports, while the 4 PoE ports can supply a maximum of 1A per port or 2A total. Powered by a QCA9531 650MHz CPU with 64MB of RAM, this router is a reliable choice for outdoor networking needs.
Tech Specs
| Device Specifications | |
|---|---|
| Product code | RB750P-PBr2 |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9533 |
| Dimensions | 125x178x48mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $69.00 |
| Powering | |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 50 W |
| Max power consumption without attachments | 2 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 8-30 V |
| PoE-out | |
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 1 A |
| Max total out (A) | 2 A |
| Ethernet | |
| 10/100 Ethernet ports | 5 |
| Other | |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
FAQs
Q: What is the MikroTik RB750P-PBR2 used for?
A: The RB750P-PBR2 is designed for outdoor network setups where both routing and remote powering of PoE devices are required. It offers five 10/100 Mbps Ethernet ports and PoE-out on four of them, ideal for powering access points or other devices.
Q: What are the key hardware specifications of the RB750P-PBR2?
A: It features a 650 MHz single-core CPU, 64 MB RAM, 16 MB flash storage, and five shielded 10/100 Mbps Ethernet ports. It comes with RouterOS License Level 4 and is built in a weather-rated outdoor enclosure.
Q: How is the RB750P-PBR2 powered and what PoE-out features does it support?
A: The router supports DC jack input or passive PoE-in in the 8-30 V range. Ports 2 to 5 can each output passive PoE up to 1 A, with a maximum total output of 2 A, enabling the device to power downstream equipment without additional injectors.
Q: In what deployment scenarios is the RB750P-PBR2 ideal?
A: It is ideal for tower-mounted or outdoor network hubs where multiple PoE-powered devices such as access points or cameras need both network connectivity and power from a single location. Its outdoor-rated build allows for installations in harsh environments.
Q: What are the environmental and installation considerations for the RB750P-PBR2?

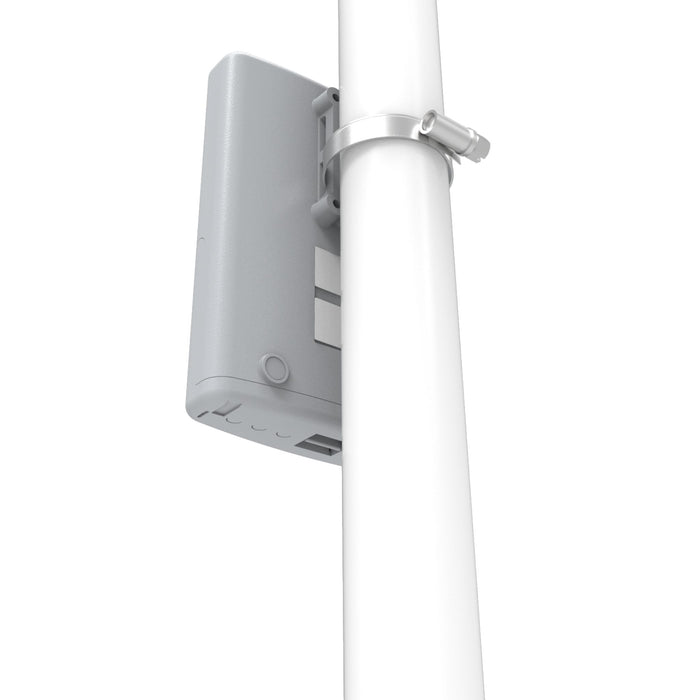

A: The device is designed for outdoor use, operating across a wide temperature range (-40 °C to +70 °C). It is supplied with a clamp for pole mounting, includes DIN-rail bracket, and is built to provide both network and power in a compact weather-resistant package.
