MikroTik XQ+85MP01D
Please contact us for stocking information.

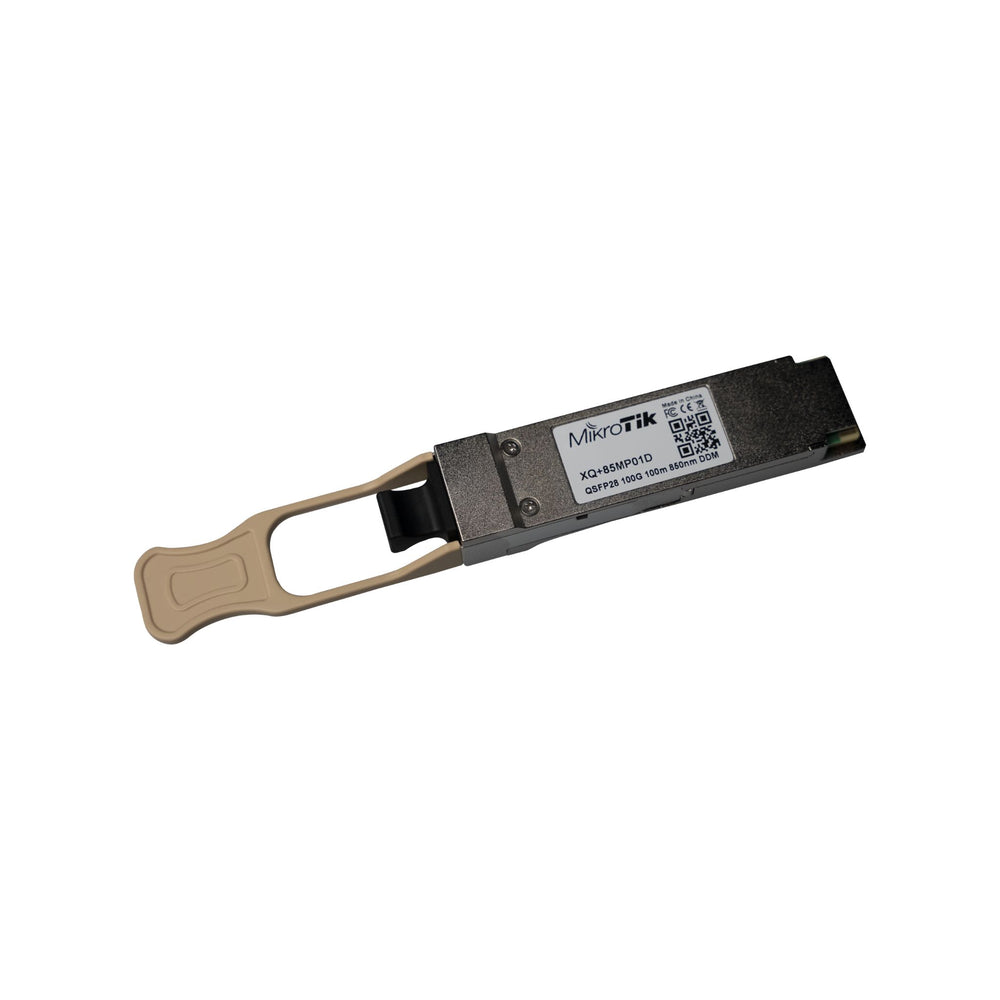

MikroTik XQ+85MP01D – 100G QSFP28 Optical Module for Short-Range Fibre
The MikroTik XQ+85MP01D is a 100 Gigabit QSFP28 optical module designed for short-range, high-speed fibre connectivity over distances of up to 100 metres. It is well suited for use with MikroTik platforms such as the CCR2216, CRS504, and CRS518, delivering reliable performance in data centre and high-capacity aggregation environments where ultra-fast throughput is required.
The module provides four independent full-duplex channels, each supporting up to 25 Gbps, delivering an aggregate bandwidth of 100 Gbps. Integrated digital diagnostic monitoring offers visibility into key operating parameters, including optical power levels, helping ensure stable and predictable network operation.
Using an MTP or MPO connector, the XQ+85MP01D requires a female-to-female Type-B polarity MTP or MPO-12 optical cable. This makes it a strong fit for structured fibre installations in professional networking environments requiring compact, high-density 100 Gbps connectivity.
Tech Specs
View the full MikroTik XQ+85MP01D datasheet here.
| Device Specifications | |
|---|---|
| Connector | 1×12 MTP/MPO |
| Data Rate | 40G / 100G |
| Distance | 100 m |
| Form Factor | QSFP+ / QSFP28 |
| Fibre Mode | Multimode (MM) |
| Wavelength | 850 nm |
| MTBF | Approximately 100,000 hours at 25°C |
