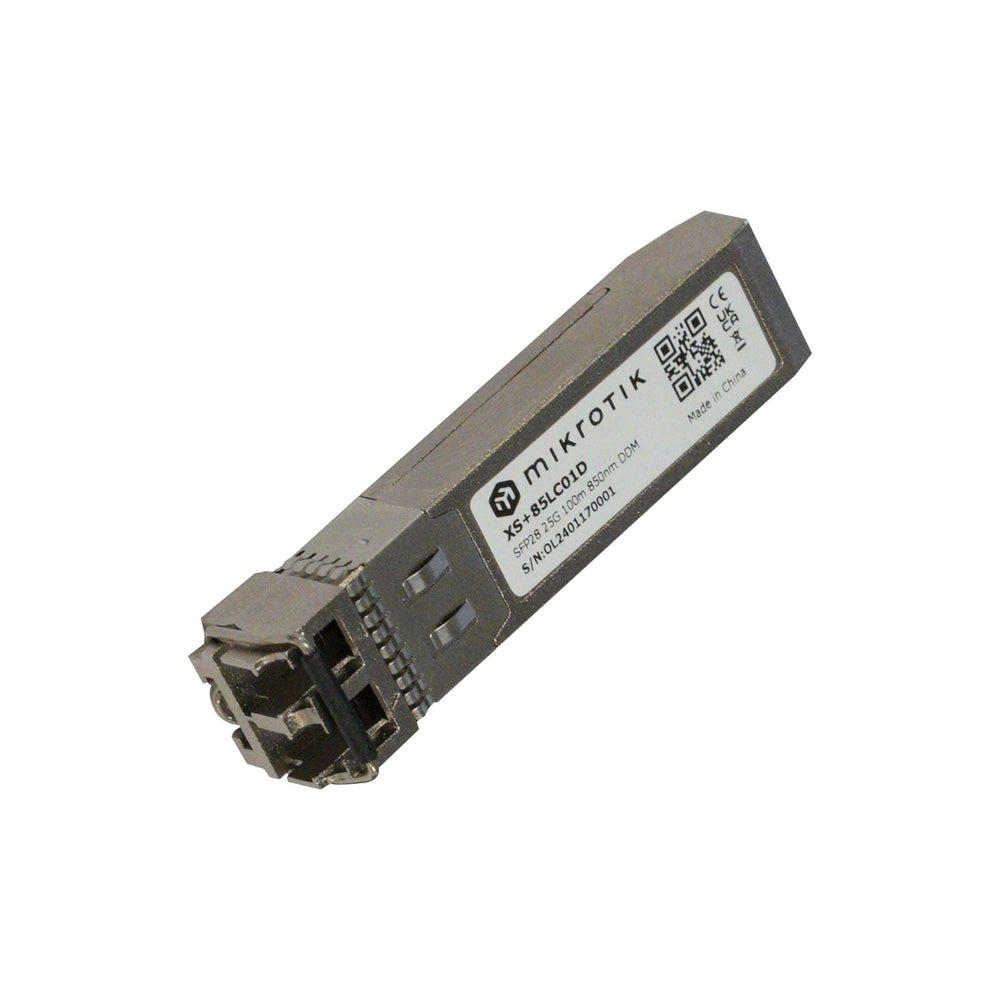

MikroTik XS+85LC01D
This versatile module is cost-effective and ideal for short distances. It has full-duplex 25 Gigabit mode and essential digital diagnostic features, including monitoring for optical power, transceiver voltage, temperature, and laser bias current. This helps users plan and predict necessary upgrades and maintenance for their transceiver's performance.
Tech Specs
Click here to see the MikroTik XS-85LC01D Datasheet.
| Device Specifications | |
|---|---|
| Product code | XS+85LC01D |
| Connector | Optical – Dual LC |
| Ethernet transmission | 25G |
| SFP module type | SFP28 |
| Optical wavelength | 850 nm |
| Max link length | 100 m |
| SFP power consumption | 1 W |
| Temperature | -40°C .. +85°C |
FAQs
Q1: What data rates does the XS+85LC01D support?
A: It supports 1.25 Gb/s (SFP), 10 Gb/s (SFP+), and 25 Gb/s (SFP28), making it highly flexible for different networking scenarios.
Q2: What type of fiber and connector does this transceiver use?
A: It uses multimode fiber (MM) and has a dual LC UPC optical connector.
Q3: What is the maximum link distance for this module?
A: The module is rated for up to 100 metres in full-duplex 25 Gbps mode when used with suitable multimode fiber.
Q4: What is the wavelength and optical characteristics?
A: It operates at a wavelength of 850 nm, which is typical for multimode MMF modules.
Q5: What kind of monitoring or diagnostic features does it support?
A: The transceiver includes Digital Diagnostic Monitoring (DDM) to read optical power, transceiver supply voltage, temperature, and laser bias current — useful for monitoring and maintenance.
Q6: What is its operating temperature range?
A: It can operate in ambient temperatures from –40 °C to +85 °C, making it suitable for demanding environments.
