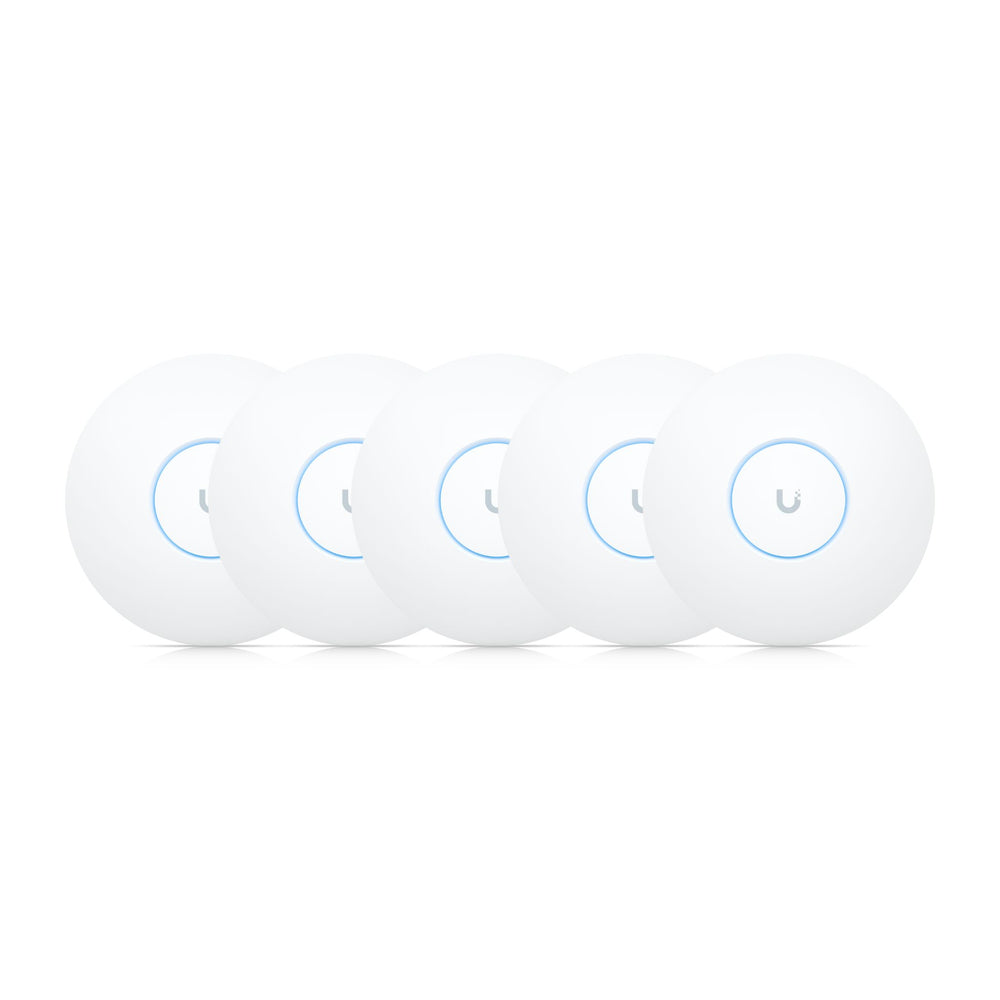

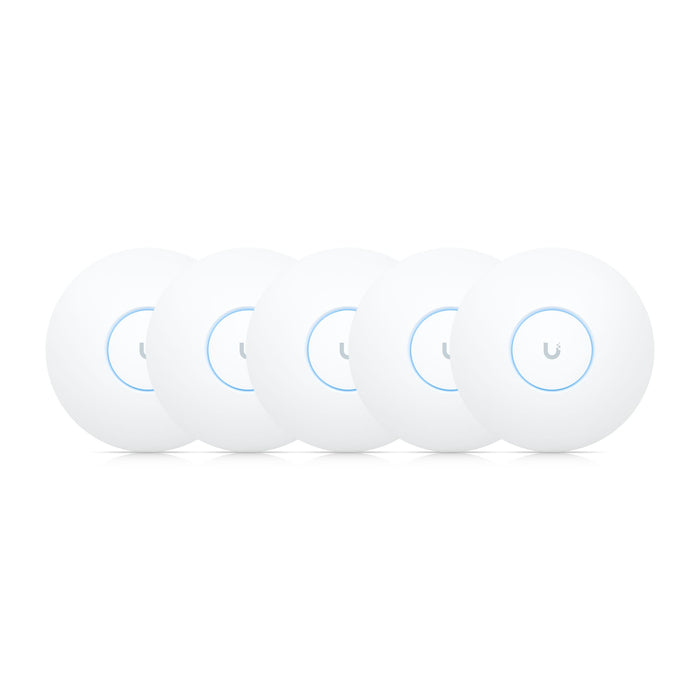

Ubiquiti AC SHD | 5 Pack
UniFi AC SHD (5 Pack) – Ceiling-Mount WiFi 5 Access Point for High-Density Networks
The UniFi AC SHD is a ceiling-mounted WiFi 5 access point built to support high-density client environments and mission-critical applications. With eight spatial streams and coverage up to 140 m² (1,500 ft²), it can handle more than 1,000 connected devices, making it ideal for auditoriums, stadiums, enterprise campuses, and conference centres.
Powered via PoE+* and featuring dual GbE uplinks, the AC SHD offers flexible connectivity options while integrating seamlessly with UniFi-managed networks for centralised configuration, monitoring, and control. Its high-capacity WiFi 5 performance ensures reliable throughput and consistent connectivity, even in environments with heavy client demand.
Designed for professional deployments, the UniFi AC SHD provides enterprise-grade performance, scalability, and resilience where network capacity is paramount.
Tech Specs
Click here for the UniFi AC SHD datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 8 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 1000+ |
| Uplink | GbE |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO | 5 GHz: 4 x 4 (DL MU-MIMO) 2.4 GHz: 4 x 4 (DL MU-MIMO) |
| Max. Data Rate | 5 GHz: 1.7 Gbps (BW80) 2.4 GHz: 800 Mbps (BW40) |
| Antenna Gain | 5 GHz: 6 dBi 2.4 GHz: 6 dBi |
| Max. TX Power | 5 GHz: 25 dBm 2.4 GHz: 25 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 20W |
| Includes PoE Adapter | ✓ |
| Supported Voltage Range | 44—57V DC |

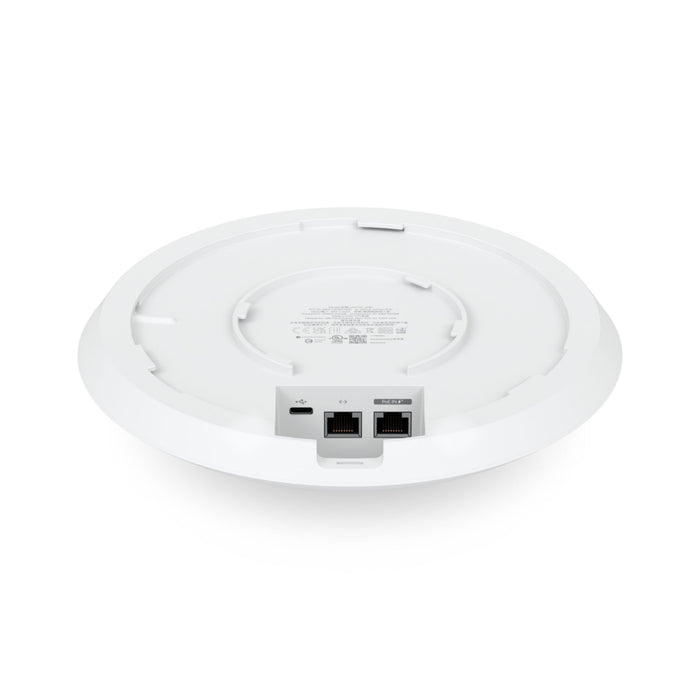

| Networking Interface | (2) GbE RJ45 ports |
| Weight | Device: 700 g (1.5 lb) With mount: 830 g (1.8 lb) |
| Management | Ethernet WiFi |
| LEDs | System Status |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz |
| Ambient Operating Temperature | -10 to 70° C (14 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 6.0.45 and later |
FAQs
Q: What is the Ubiquiti UAP-AC-SHD and what makes it unique?
A: The UAP-AC-SHD is an enterprise-grade 802.11ac Wave 2 access point with dedicated security and monitoring radios, designed to deliver both high-performance WiFi and advanced threat detection.
Q: What wireless features does the UAP-AC-SHD support?
A: It supports dual-band 2.4 GHz and 5 GHz WiFi with 4×4 MU-MIMO, beamforming, and Wave 2 technology, delivering gigabit-class throughput for high-density deployments.
Q: How does the UAP-AC-SHD enhance network security?
A: The device includes dedicated security radios for real-time spectrum analysis, intrusion detection, and prevention, helping protect enterprise networks from interference and attacks.
Q: How is the UAP-AC-SHD powered and connected?
A: It uses dual Gigabit Ethernet ports and supports 802.3at PoE+, enabling flexible installation with power and data delivered over a single cable.
Q: How is the UAP-AC-SHD managed in enterprise networks?
A: It integrates with the UniFi Network Application, providing centralised configuration, monitoring, and analytics across multiple access points and sites.
