Ubiquiti airMAX AC 5 GHz, 21 dBi, 60º Sector

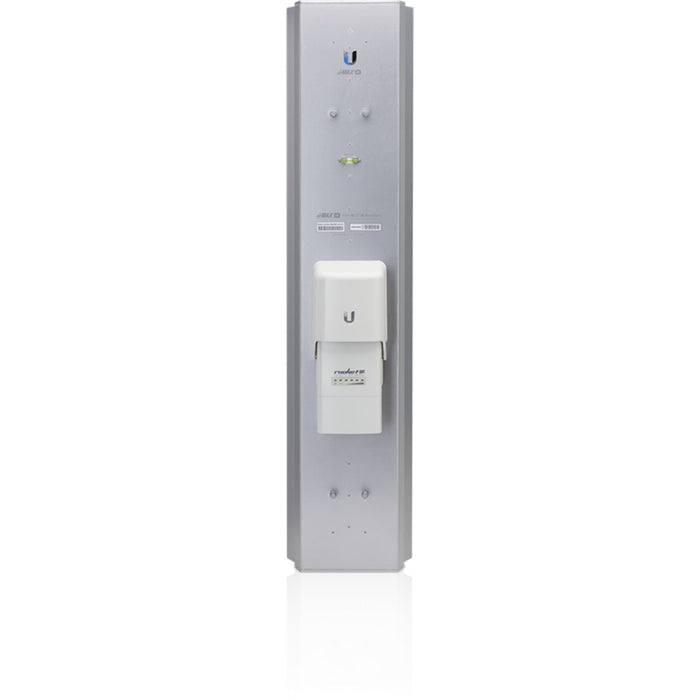

The Ubiquiti airMAX AC 5 GHz, 21 dBi, 60º Sector is designed for scalability, noise isolation, and beam performance, making it an ideal match for the Rocket 5ac radios. It is also compatible with Rocket M5 models, but for best results, the Rocket 5ac is recommended. The airMax ac Sector Antennas have a unique deflector design and reduced sidelobes and back lobes, providing high resistance to noise interference in co-location deployments. This allows for a higher bandwidth of bits per second and enhanced scalability, gain, and beam performance in multipoint networks with high capacity demands.
Tech Specs
Click here for the AM-5AC21-60 datasheet.
| Device Specifications | |
|---|---|
| Model | AM-5AC21-60 |
| Dimensions | 750 x 173 x 78 mm (29.5 x 6.8 x 3") |
| Weight | 4.8 kg (10.6 lb) |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 21 dBi |
| HPOL Beamwidth | 60° (6 dBi) |
| VPOL Beamwidth | 60° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 391 N @ 200 km/h (88 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |

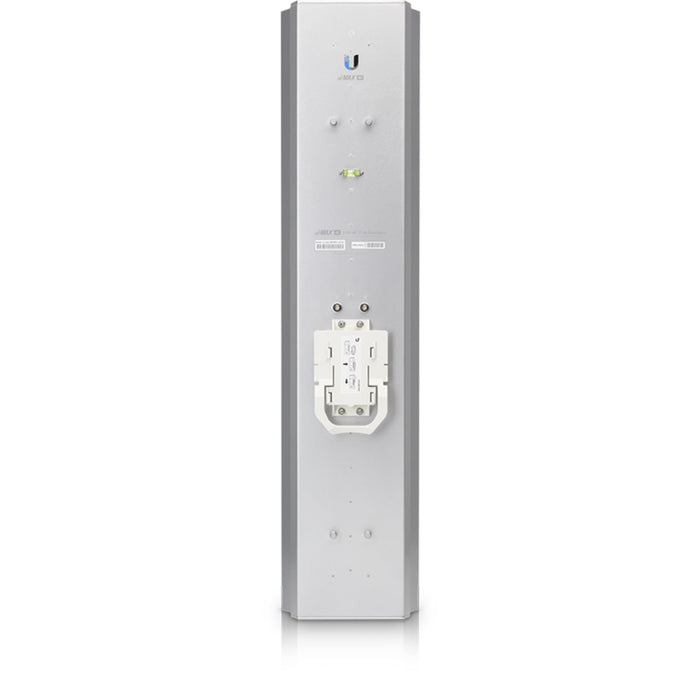

| Mounting | Universal Pole Mount RocketM Bracket Weatherproof RF Jumpers Included |
| NDAA Compliant | Yes |
FAQs
Q: What is the frequency range of the Ubiquiti AM-5AC21-60?
A: The AM-5AC21-60 operates across the 5.10–5.85 GHz frequency range, making it ideal for long-range point-to-point and point-to-multipoint wireless links.
Q: What gain and beamwidth does the AM-5AC21-60 provide?
A: This horn antenna delivers a high gain of 21 dBi, with a 60° horizontal and vertical beamwidth, ensuring focused signal transmission and minimal interference.
Q: Can the AM-5AC21-60 be used for long-distance outdoor wireless links?
A: Yes, its 21 dBi gain and 60° beamwidth are specifically designed for robust outdoor point-to-point connections, perfect for connecting branch sites or remote locations.
Q: What are the physical dimensions and weight of the AM-5AC21-60?
A: The antenna measures 750 x 173 x 78 mm (29.5 x 6.8 x 3 inches) and weighs 4.8 kg (10.6 lb), suitable for secure mounting on towers or poles.
Q: Does the AM-5AC21-60 support electrical downtilt adjustments?
A: Yes, it features a 2° electrical downtilt for precise alignment, optimising signal direction and improving overall link performance in complex installations.
