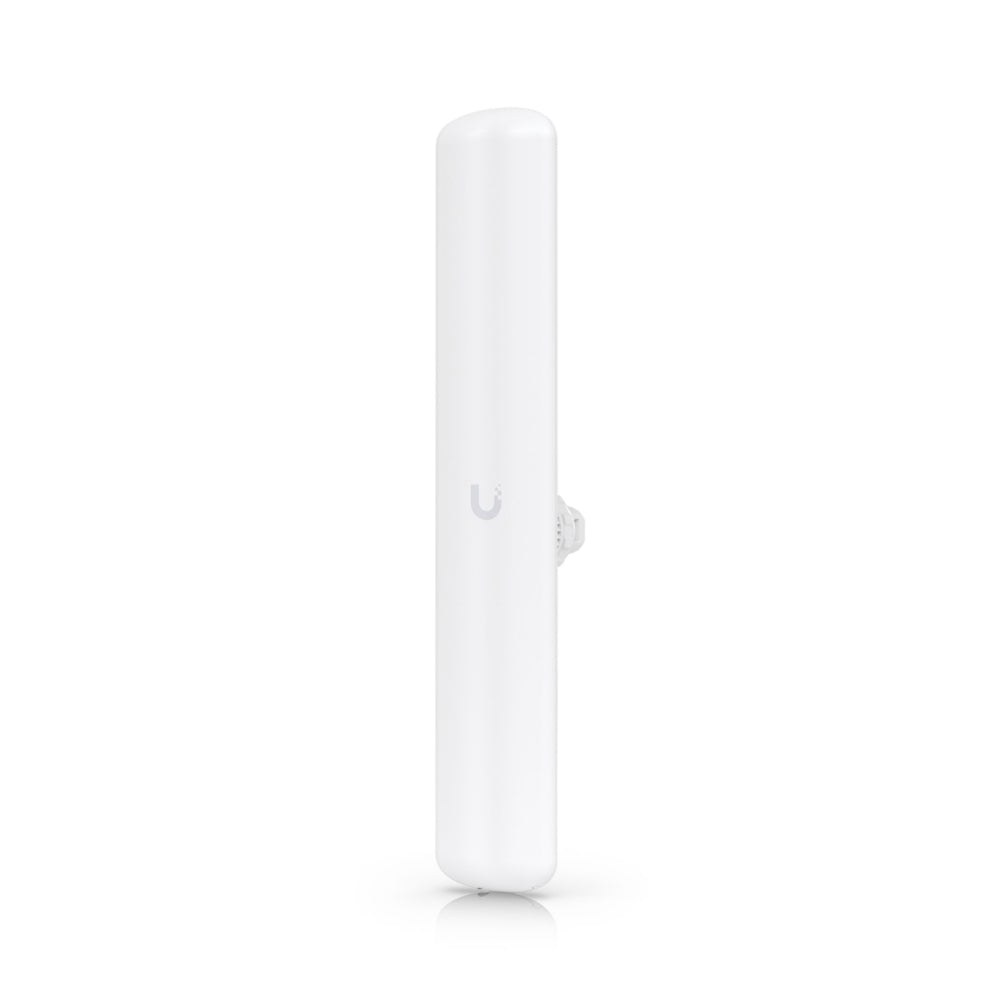

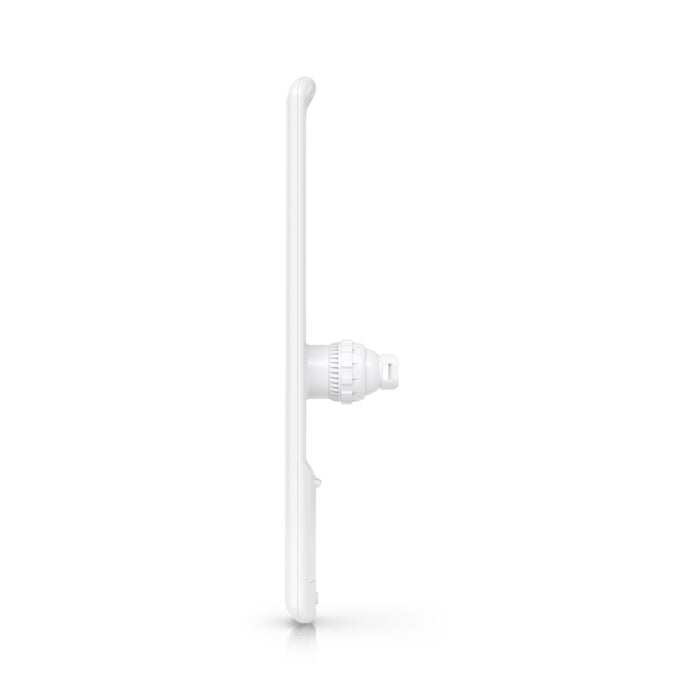

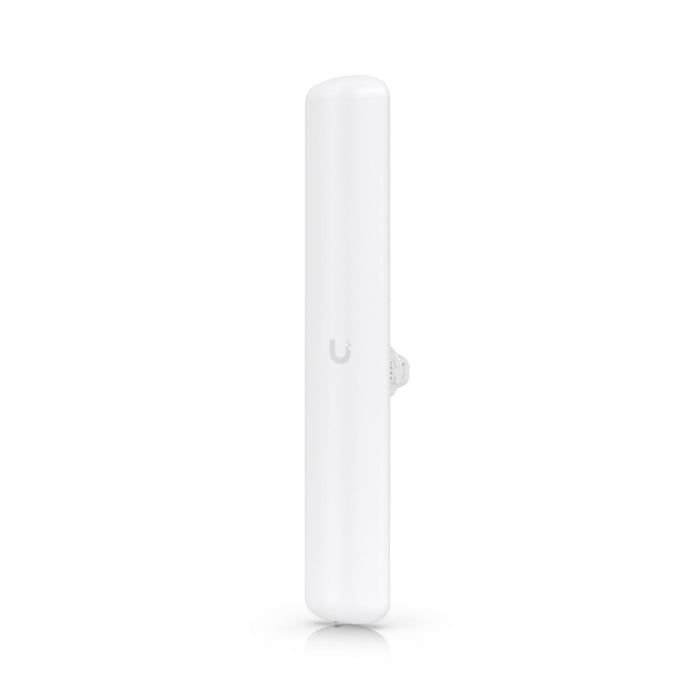

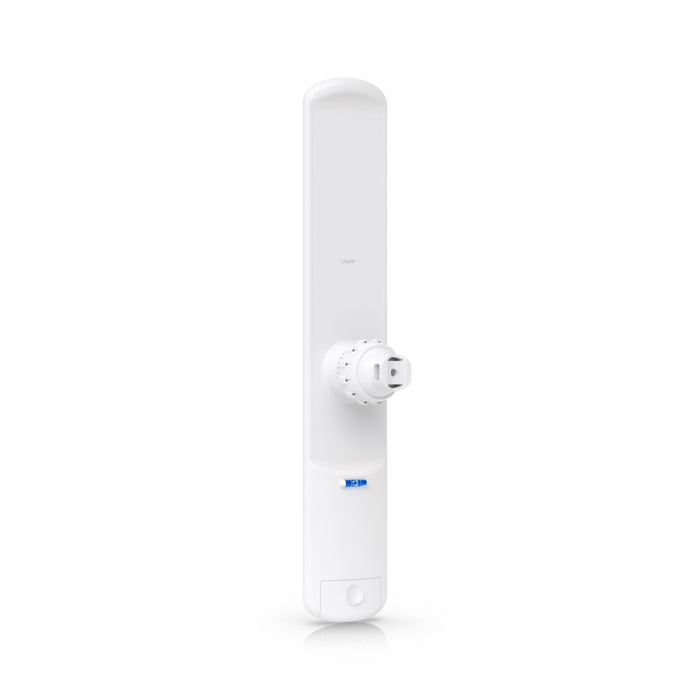

This Ubiquiti airMAX Lite AP boasts an ultra-lightweight design and a versatile, ball-join mount. Its key features include an integrated 5 GHz antenna, a remarkable 10+ km link range, impressive 450+ Mbps throughput, and a high client capacity of 50+. It also comes equipped with a dedicated spectral analysis radio for enhanced performance.
Tech Specs
Click here for the Ubiquiti airMAX Lite AP datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 452.3 x 78.7 x 54.4 mm (17.8 x 3.1 x 2.14") |
| Weight | 420 g (14.82 oz) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| Hardware | |

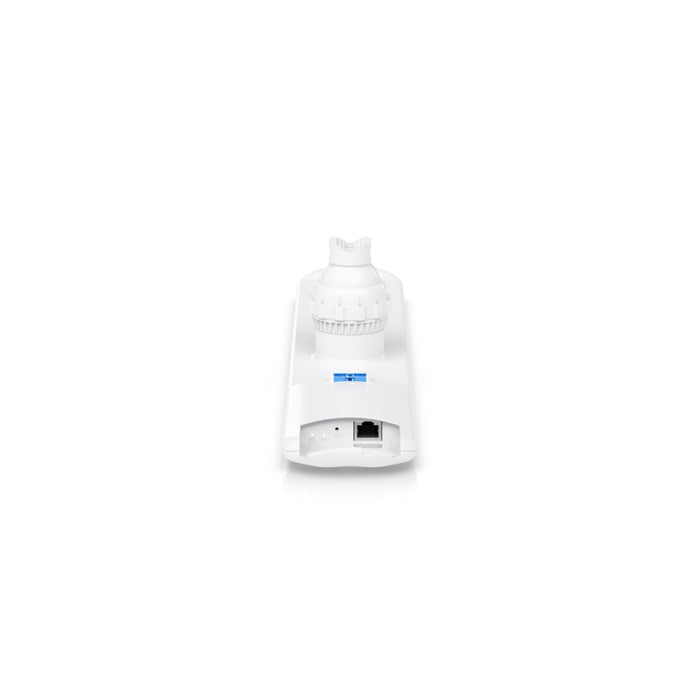

| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 8W |
| Antenna gain | 16 dBi |
| ESD/EMP protection | Air/contact ± 24kV |
| Shock and vibrations | ETSI300-019-1.4 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA | U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz |
| Worldwide | 5150 - 5875 MHz |
| NDAA Compliant | Yes |
FAQs
Q1: What is the Ubiquiti LAP-120?
A1: The LAP-120 is a 5 GHz airMAX ac sector access point designed for outdoor wireless broadband applications. It features a 16 dBi integrated antenna and supports both point-to-multipoint (PtMP) and point-to-point (PtP) configurations.
Q2: What are the key specifications of the LAP-120?
A2:
-
Dimensions: 452.3 x 78.7 x 54.4 mm (17.8 x 3.1 x 2.14")
-
Weight: 420 g (14.82 oz)
-
Antenna Gain: 16 dBi
-
Frequency Band: 5 GHz (Worldwide: 5150–5875 MHz)
-
Networking Interface: (1) Gigabit Ethernet RJ45 port
-
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 return)
-
Power Supply: 24V, 0.5A Gigabit PoE adapter (Included)
-
Max Power Consumption: 8W
-
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
-
Certifications: CE, FCC, IC
Q3: What throughput and range can the LAP-120 achieve?
A3: The LAP-120 can deliver up to 450 Mbps real TCP/IP throughput. In optimal conditions, it supports link distances exceeding 10 km.
Q4: How is the LAP-120 powered and installed?
A4: The LAP-120 is powered via 24V passive PoE and includes a pole-mounting kit for easy installation. Its lightweight design and integrated antenna simplify alignment and setup.
Q5: What software features does the LAP-120 support?
A5: The LAP-120 supports Ubiquiti’s airMAX ac protocol, which utilizes Time Division Multiple Access (TDMA) to reduce latency and improve scalability. It also features a dedicated spectral analysis radio for interference mitigation.
