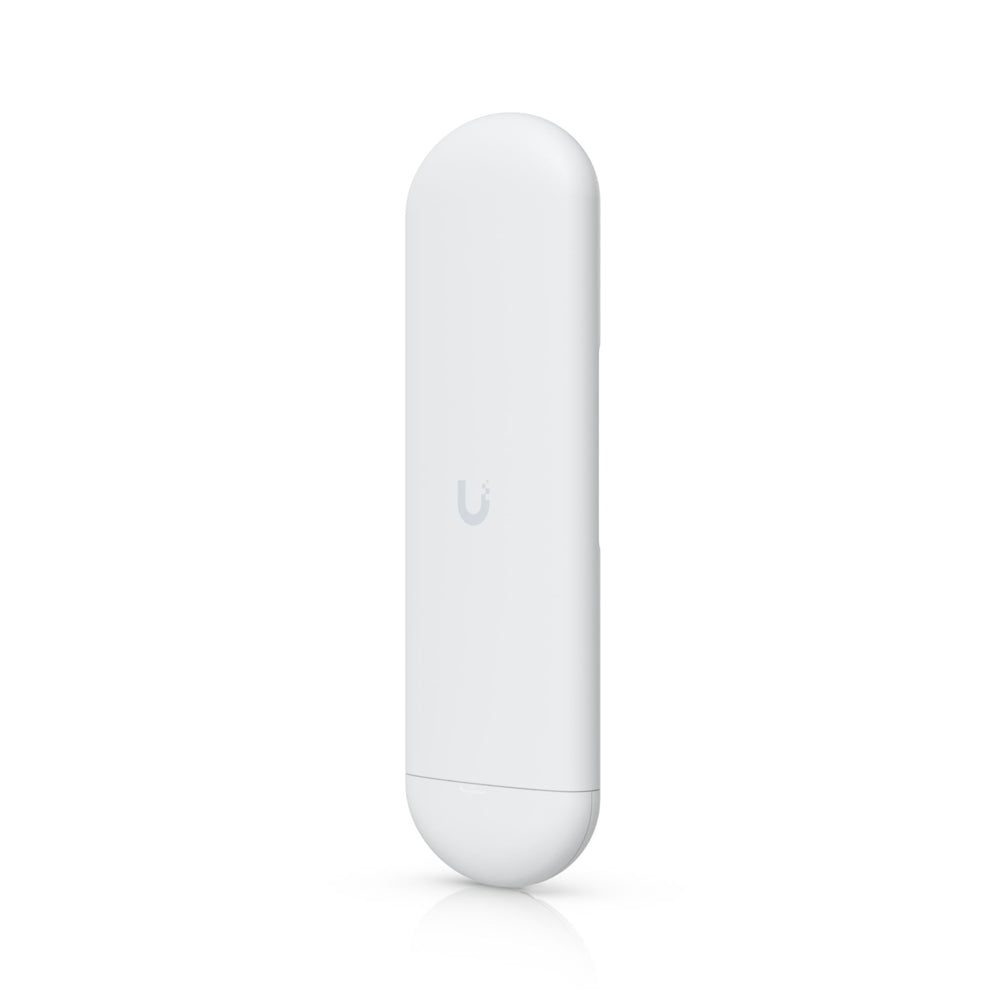

Ubiquiti airMAX NanoStation 5AC
The Ubiquiti NanoStation 5AC is a compact and efficient choice for indoor or outdoor deployments. It features a combined radio and antenna, AirMax technology, and dedicated Wi-Fi management. Plus, it has a secondary Ethernet port with PoE for easy integration with other devices. With versatile mounting options and remote management capabilities, it's easy to deploy and configure via the UNMS app.
Tech Specs
Click here for the Ubiquiti airMAX NanoStation 5AC datasheet.
| Device Specifications — Mechanical / Physical | |
|---|---|
| Dimensions | Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
| Weight | 233 g (8.2 oz) |
| Enclosure Material | UV-resistant plastic |
| Mounting | Pole and wall mounting kits (Included) |
| Device Specifications — Hardware | |

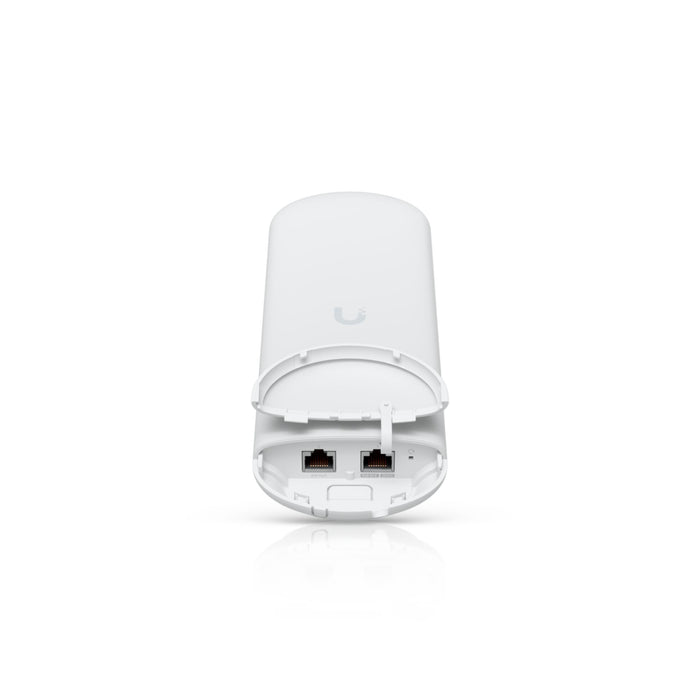

| Networking Interface | (2) GbE RJ45 ports |
| Power Method | PoE alternative A (pairs 1, 2+; 3, 6 Return) Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 44–54V DC 22–27V DC |
| Max. Power Consumption | 9W |
| ESD/EMP Protection | Air/contact: ±24 kV |

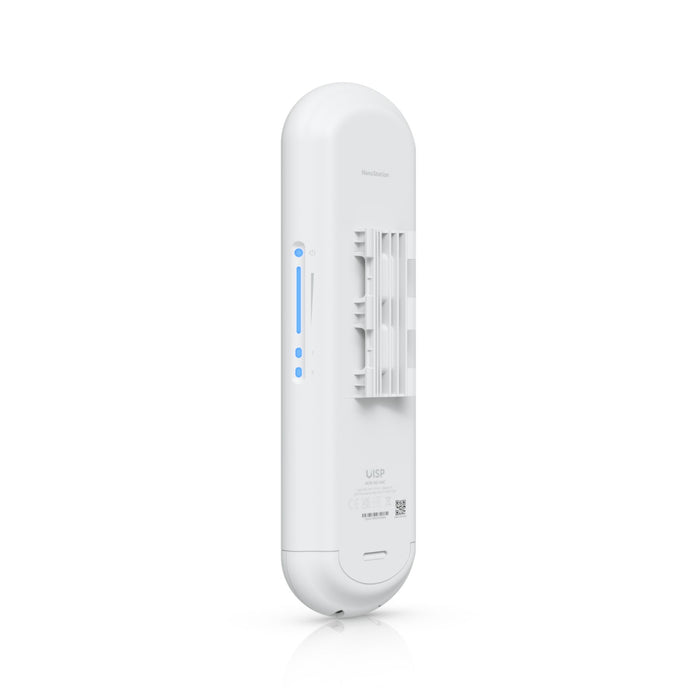

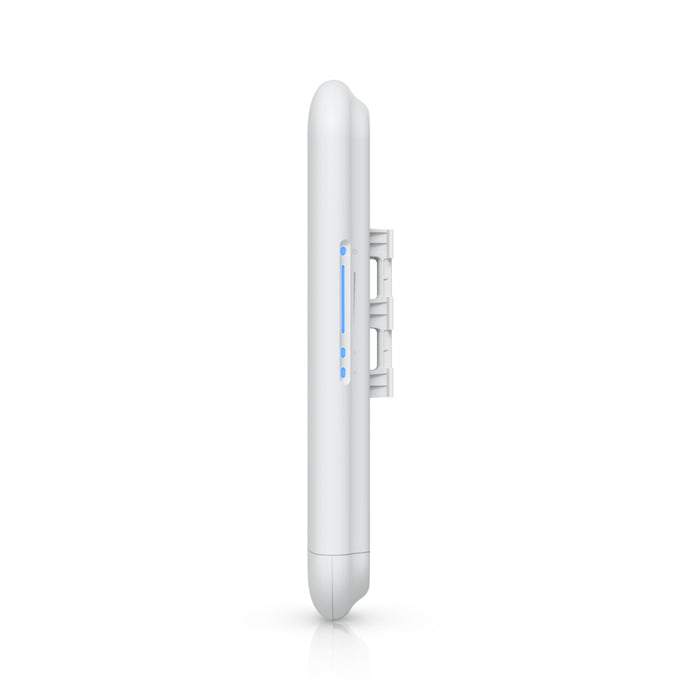

| LEDs | Power, Ethernet, (4) signal strength |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Device Specifications — System | |
| Gain | 16 dBi |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol Isolation | 20 dB min. |
| Max. VSWR | 1.6:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | Worldwide: 5150-5875 USA: U-NII-1: 5150-5250, U-NII-2A: 5250-5350, U-NII-2C: 5240-5725, U-NII-3: 5725-5850 |
| Management Radio (MHz) | Worldwide: 2412 - 2472 US/CA: 2412 - 2462 |
| NDAA Compliant | Yes |
FAQs
Q1: What is the NS‑5AC and what is it used for?
A: The NS‑5AC is an outdoor 5 GHz CPE / wireless bridge device. It is designed to provide long‑range wireless connectivity — suitable for point‑to‑point (PtP) or point‑to‑multipoint (PtMP) links for internet delivery, remote connectivity, or bridging two networks over distance.
Q2: What are the key hardware and radio specifications of the NS‑5AC?
A: It features a 16 dBi integrated antenna, operates in the 5150–5875 MHz band, supports channel bandwidths up to 80 MHz, and uses dual‑linear polarization with a 45° beamwidth. It is powered via 24 V passive PoE, with a maximum power consumption around 9 W. It includes two Gigabit Ethernet ports.
Q3: What physical and environmental properties does the NS‑5AC have?
A: The device measures approximately 257 × 84 × 41 mm (body), weighs around 233 g, and is housed in a UV‑resistant outdoor‑rated enclosure. It is designed to operate across a wide temperature range (–40 °C to +70 °C), making it suitable for varied outdoor climates. Mounting hardware for poles or walls is included.
Q4: What network interfaces and power options does NS‑5AC support?
A: It has two 10/100/1000 Mbps (Gigabit) RJ45 Ethernet ports. For power, it supports 24 V passive PoE or standard 802.3af Alternative A PoE — enabling flexible deployment even in remote or outdoor installations where a dedicated power outlet might not be available.
Q5: What use‑cases or deployment scenarios is NS‑5AC best suited for?
A: It’s ideal for bridging networks between buildings, delivering internet to remote properties, establishing point‑to‑point wireless links, or creating a fixed wireless access (FWA) solution in rural or difficult‑to‑wire areas. Its compact, integrated‑antenna design and passive PoE make it convenient for mast‑ or rooftop‑mounting without complex installation requirements.
