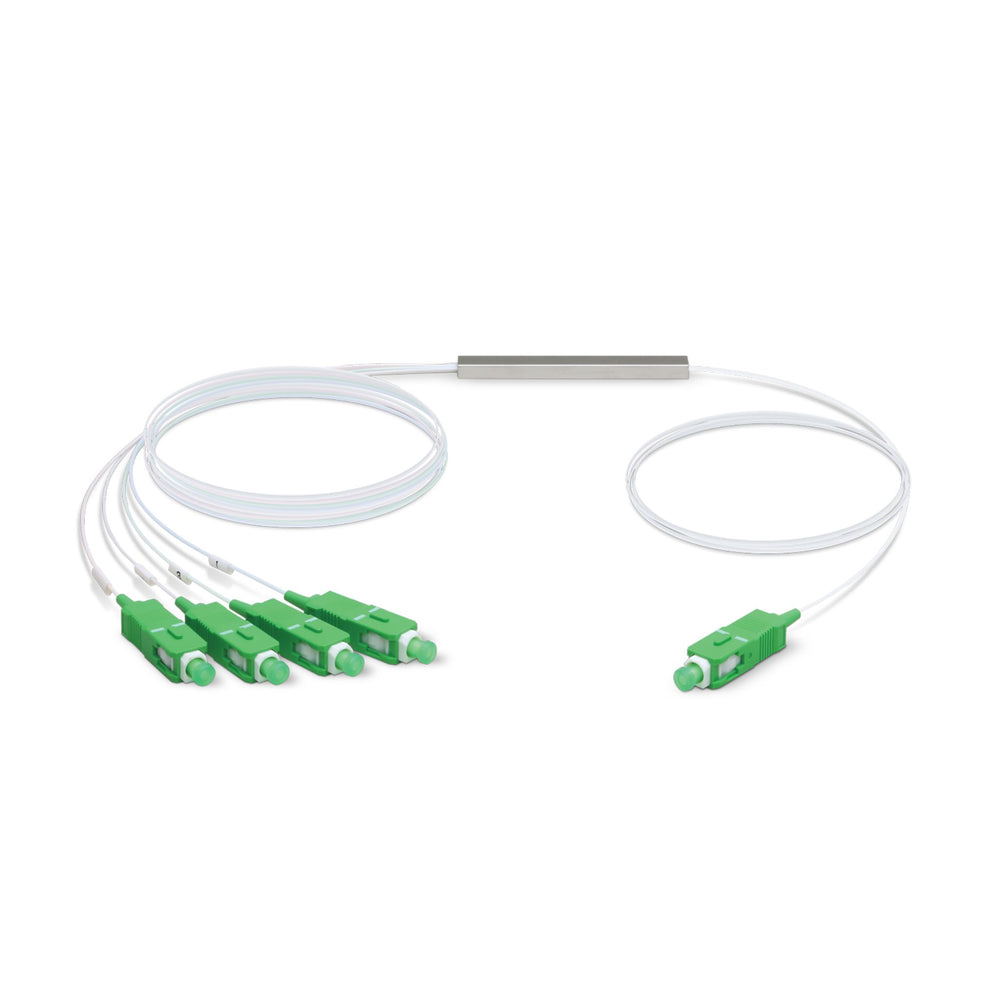

MSDist Ubiquiti Fiber Splitter UF-SPLITTER 4 Outputs
MSDist Ubiquiti Fiber Splitter UF-SPLITTER 4 Outputs

Ubiquiti UFiber Splitter

by Ubiquiti
Sold out
Excl. VAT: £8.40 Incl. VAT: £10.08
SKU UF-SPLITTER-4

Please contact us for stocking information.

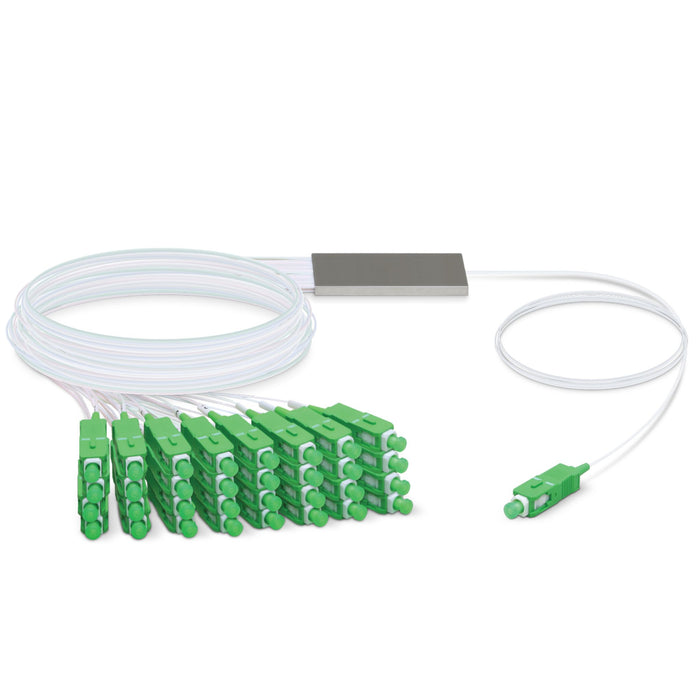

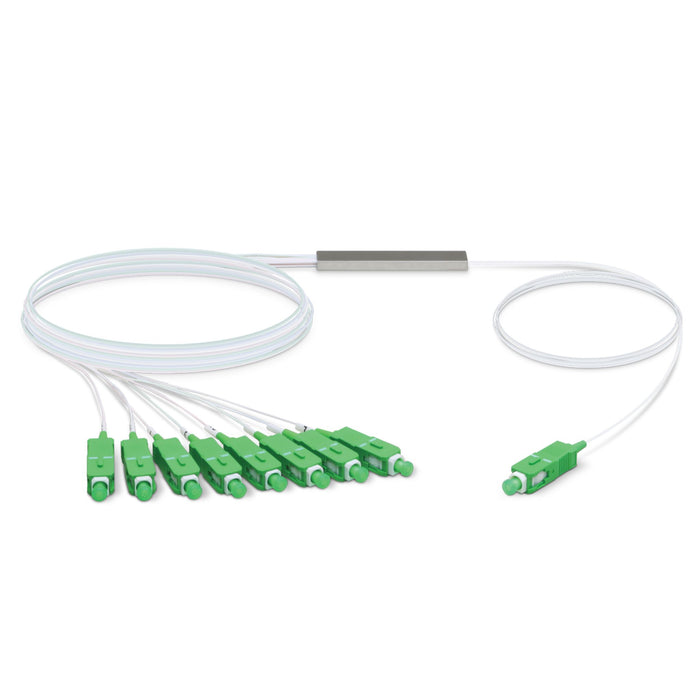

The Ubiquiti UFiber Splitter is designed to distribute data from a UFiber OLT's long-haul cable to multiple UFiber ONUs. It comes with 4, 8, 16, or 32 outputs and is terminated with an SC/APC connector. The accompanying cable is 1.5 meters in length.


Tech Specs

Click here for the UFiber Splitter datasheet.
Device Specifications – UF-SPLITTER Series
Specification UF-SPLITTER-4 UF-SPLITTER-8 UF-SPLITTER-16 UF-SPLITTER-32
Input (1) SC/APC (1) SC/APC (1) SC/APC (1) SC/APC
Outputs (4) SC/APC (8) SC/APC (16) SC/APC (32) SC/APC
Insertion loss with connectors 7.4 dB 10.5 dB 13.7 dB 17.0 dB
Uniformity loss 0.6 dB 0.8 dB 1.2 dB 1.5 dB
Polarization dependent loss 0.3 dB 0.3 dB 0.3 dB 0.3 dB
Wavelength bandwidth 1260-1650 nm 1260-1650 nm 1260-1650 nm 1260-1650 nm
Return loss (All ports) 50 dB 50 dB 50 dB 50 dB
Directivity 55 dB 55 dB 55 dB 55 dB
Fiber type G657A1 G657A1 G657A1 G657A1
Ambient operating temperature -40 to 85°C (-40 to 185°F) -40 to 85°C (-40 to 185°F) -40 to 85°C (-40 to 185°F) -40 to 85°C (-40 to 185°F)
Total length 4.06 m (13.32') 4.06 m (13.32') 4.06 m (13.32') 4.08 m (13.39')
Weight 58 g (2.0 oz) 62 g (2.2 oz) 110 g (3.9 oz) 160 g (5.6 oz)
NDAA Compliant Yes   -  - -



FAQs

Q: What is the Ubiquiti UF-SPLITTER used for?
A: The UF-SPLITTER is a GPON optical splitter designed to divide a single fibre optic signal into multiple outputs for connecting multiple ONUs or endpoints.

Q: How many outputs does the UF-SPLITTER provide?
A: It provides multiple output ports, allowing a single GPON optical line to serve several subscriber devices efficiently.

Q: Can the UF-SPLITTER be used in enterprise and ISP networks?
A: Yes, it is ideal for high-density GPON networks, supporting enterprise, campus, and ISP fibre distribution systems.

Q: What type of fibre does the UF-SPLITTER use?
A: It uses single-mode fibre (SMF) designed for GPON applications, providing low-loss signal transmission over long distances.

Q: Does the UF-SPLITTER affect network performance?
A: No, it maintains high signal integrity with minimal insertion loss, ensuring reliable performance across all connected endpoints.
