Ubiquiti UISP Cable Carrier
The Ubiquiti UISP-Cable-Carrier is a Category 5e cable with a primary braid shield and a weatherproof jacket for multi-layered elemental protection. It also features a drain wire and internal foil shielding for electrostatic discharge (ESD) protection, and an anti-crosstalk divider to maintain signal integrity for consistent Gigabit Ethernet link rates in the presence of electromagnetic interference.
Tech Specs
Click here for the Ubiquiti UISP Cable Carrier datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |

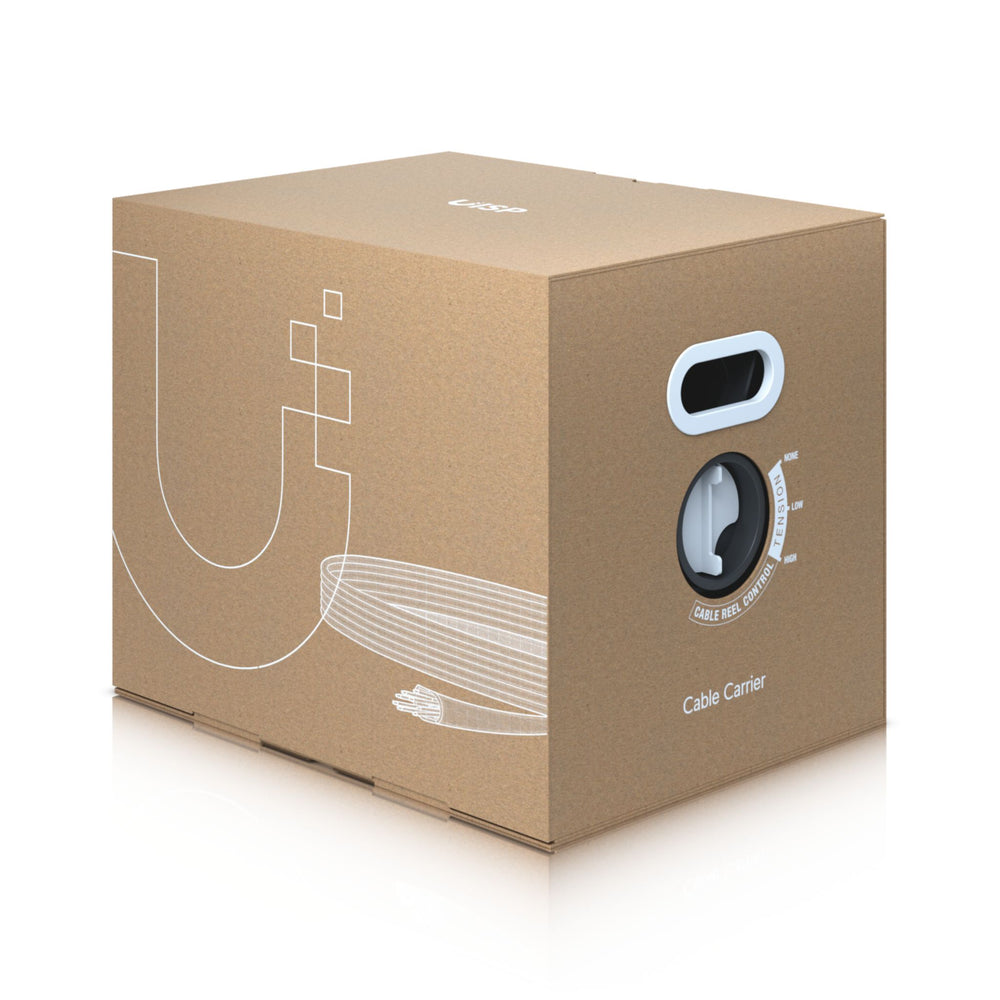

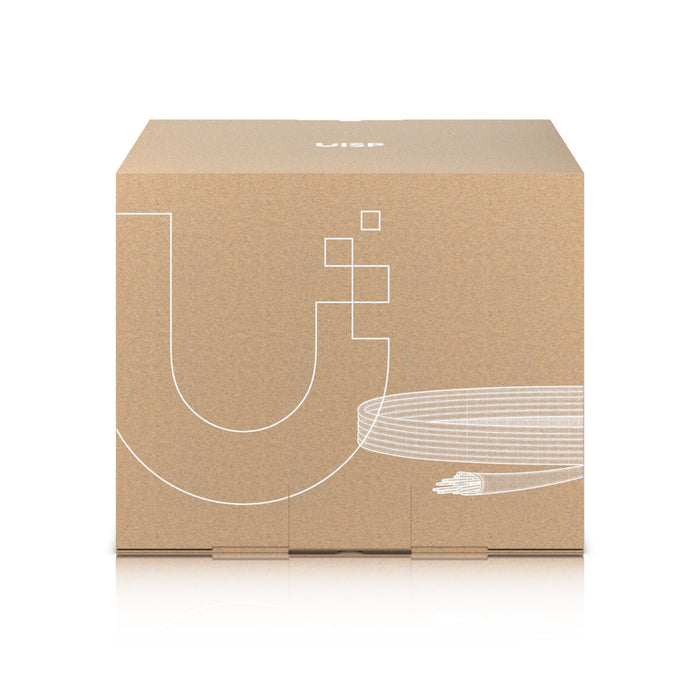

| Box dimensions | 330 x 425 x 340 mm (13 x 16.7 x 13.4") |
| Box weight | 16 kg (35.3 lb) |
| Cable length | 305 m (1,000 ft) |
| Cable color | Black |
| Cable type | CAT5e, shielded |
| UV resistance | ASTM G 151/154 |
| Ethernet support | Up to 1 Gbps |
| Conductor wire gauge | 24 AWG |
| Conductor | Solid bare copper |
| Conductor diameter | 0.500 ± 0.005 mm |
| Insulation type | Solid polyethylene |
| Insulation thickness | Avg. 0.295 mm Min. 0.29 mm |
| Insulation diameter | 1.16 ± 0.02 mm |
| Separation (Polyester wrapping) | Thick: 0.025 mm Extent: 20 mm |
| Anti-crosstalk divider | LDPE: 4.2*0.3 mm |
| Cable shield (Aluminum foil) | Thick: 0.060 mm Extent: 20 mm |
| ESD drain wire | 0.4 TC |
| Rip cord | Yes |
| Secondary cable shield (Braid) | 16*8*0.16AA Density: 95% |
| Jacket material | Polyethylene |
| Jacket thickness | Avg. 0.52 mm Min. 0.46 mm |
| Jacket outer diameter | 6.8 ± 0.30 mm |
| Jacket color | Black |
| Storage temperature | -30 to 75° C (-22 to 167° F) |
| Installation temperature | -20 to 60° C (-4 to 140° F) |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
| NDAA Compliant | Yes |
FAQs
Q: What is the Ubiquiti UISP-Cable-Carrier used for?
A: The UISP-Cable-Carrier is an outdoor, industrial-grade shielded Cat5e Ethernet cable designed for use in harsh environments, providing reliable data transmission and protection from elemental damage.
Q: What are the key performance specifications of the UISP-Cable-Carrier?
A: It supports up to 1 Gbps Ethernet, uses 24 AWG solid copper conductors, features a shielded braid plus foil, and a UV-resistant polyethylene jacket for durable outdoor deployment.
Q: Where is the UISP-Cable-Carrier suitable to be installed?
A: It is suitable for outdoor installations including network infrastructure, ISP deployments, pole or tower mounts, and environments subject to weather exposure and electrostatic discharge.
Q: What type of shielding and protection does the UISP-Cable-Carrier include?
A: The cable includes a primary braid shield, foil, and integrated ESD drain wire, as well as a weatherproof jacket that resists UV and harsh conditions to protect network links.
Q: How does the UISP-Cable-Carrier improve network reliability?
A: By using high-quality materials, full shielding, and protective outer jacket, it ensures stable network performance, alleviates interference risks, and is built for long-term outdoor use.
